Cable railings have become increasingly popular in Canada due to their modern aesthetic and ability to provide unobstructed views. However, before installing such systems, it's crucial to understand the legal and safety regulations that govern their use across the country.
Table of Contents
- National Building Code (NBC) Guidelines
- Provincial Regulations and Variations
- Installation Requirements for Compliance
- Senmit Cable Railing System Overview
- Summary Table
National Building Code (NBC) Guidelines
The National Building Code of Canada (NBC) 2015 permits the installation of horizontal cable railings under specific conditions:
- Height Restrictions: Horizontal elements that could facilitate climbing are allowed if the guard protects a level less than 4.2 meters (13' ¾") above the adjacent level.
- Opening Limitations: Openings in the guard must prevent the passage of a 100mm (4") diameter sphere.
It's important to note that while the NBC provides a national framework, building codes are enforced at the provincial and municipal levels, which may have additional requirements.
Provincial Regulations and Variations
While many provinces have harmonized their building codes with the NBC 2015, there are notable exceptions:
- Ontario: The Ontario Building Code prohibits horizontal railings for decks, ramps, or stair guards, requiring vertical elements unless the platform is less than 36 inches above grade.
- Quebec: Adopted the NBC 2015 with amendments in 2022, allowing horizontal cable railings under the same conditions as the NBC.
- Other Provinces: Provinces like British Columbia, Alberta, and Nova Scotia have adopted the NBC 2015, permitting horizontal cable railings with adherence to specified guidelines.
Always consult local building authorities to ensure compliance with regional regulations before installation.
Installation Requirements for Compliance
To ensure that a cable railing system complies with Canadian building codes, consider the following installation requirements:
1. Post and Cable Spacing
- Post Spacing: Posts should be spaced no more than 4 feet (1.2 meters) apart to minimize cable deflection.
- Cable Spacing: Cables should be spaced to prevent a 4" sphere from passing through, typically requiring spacing of 3" or less.
2. Cable Tension and Material
- Tension: Cables must be properly tensioned to prevent sagging and maintain safety standards.
- Material: Use stainless steel cables (e.g., 1/8" 7x7) for durability and corrosion resistance.
3. Handrail Requirements
- Height: Handrails should be between 865mm and 1070mm (34" and 42") above the nosing of stairs.
- Graspability: Handrails must be graspable, allowing users to securely hold them for support.
Senmit Cable Railing System Overview

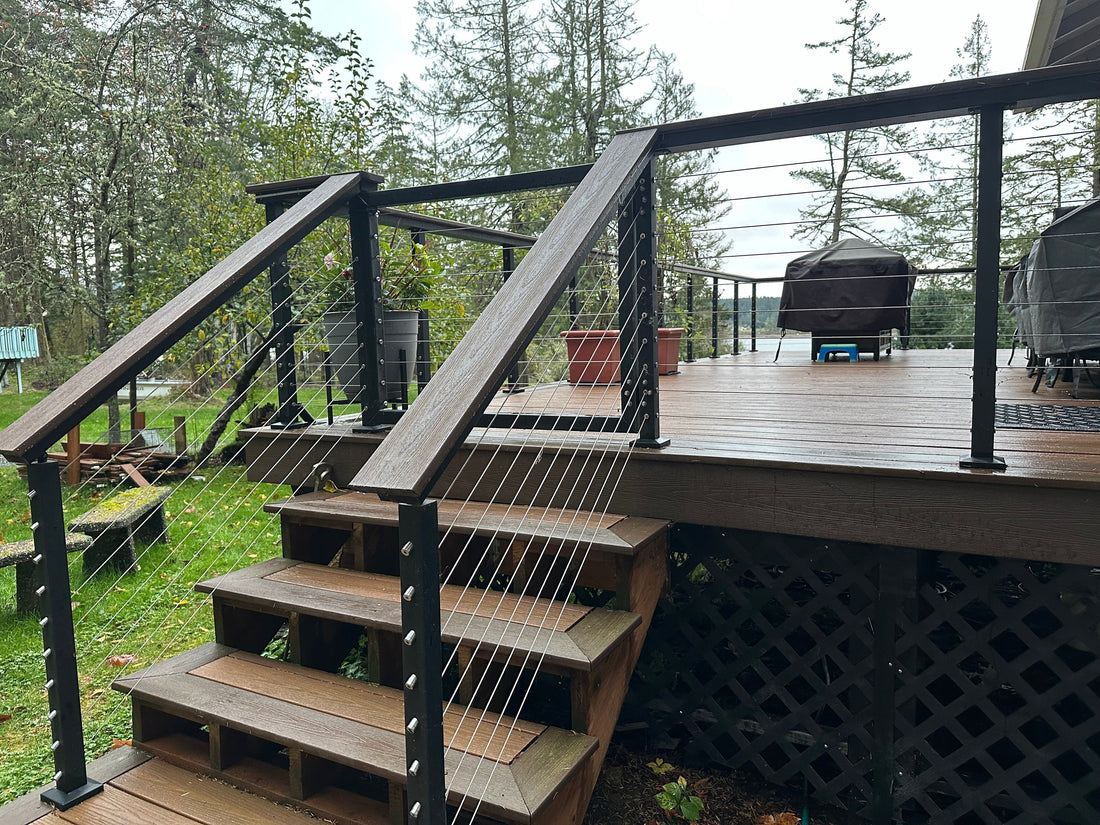

The Senmit 36" 5ft-25ft Black Surface Mount All-in-One Complete Cable Railing System DIY Kit is designed to meet Canadian building code requirements, offering both functionality and aesthetic appeal.
Key Features:
- Durable Stainless Steel Posts: 2×2 stainless steel posts provide exceptional stability and strength.
- Sleek Aluminum Handrail with LED Compatibility: 2-1/2" x 1-3/16" aluminum handrail allows for LED light integration.
- Complete Accessories: Includes tensioners, stainless steel cables, cable sleeves, and a professional cable cutter for hassle-free installation.
- Versatile Design: Suitable for both indoor and outdoor applications, enhancing views with a minimalist design.
- DIY-Friendly: Designed for ease of use, ideal for DIY enthusiasts.
- Rust-Resistant and Weatherproof: Engineered to withstand harsh weather conditions, making it suitable for various environments.
Available in various lengths (5ft to 25ft) and configurations to accommodate different project needs.
Summary Table
| Aspect | Requirement |
|---|---|
| Legality | Permitted under NBC 2015 with conditions; varies by province |
| Height Restriction | Allowed if guard protects a level less than 4.2 meters above adjacent level |
| Opening Limitation | Must prevent passage of a 100mm (4") sphere |
| Post Spacing | Maximum 4 feet (1.2 meters) apart |
| Cable Spacing | Typically 3" or less to prevent 4" sphere passage |
| Handrail Height | Between 865mm and 1070mm (34" and 42") |
| Material | Stainless steel cables and posts recommended |
| Ontario Specifics | Horizontal railings prohibited for decks, ramps, or stair guards unless platform is less than 36 inches above grade |
