Failing a railing inspection costs time and trust. One test drives many outcomes: the 4-inch sphere rule. Any opening in a guard must block a rigid ball that measures four inches in diameter. This guide shows where the rule applies, how stair exceptions work, how to measure gaps, and how to build details that pass on the first try.
What Is the 4-Inch Sphere Rule?

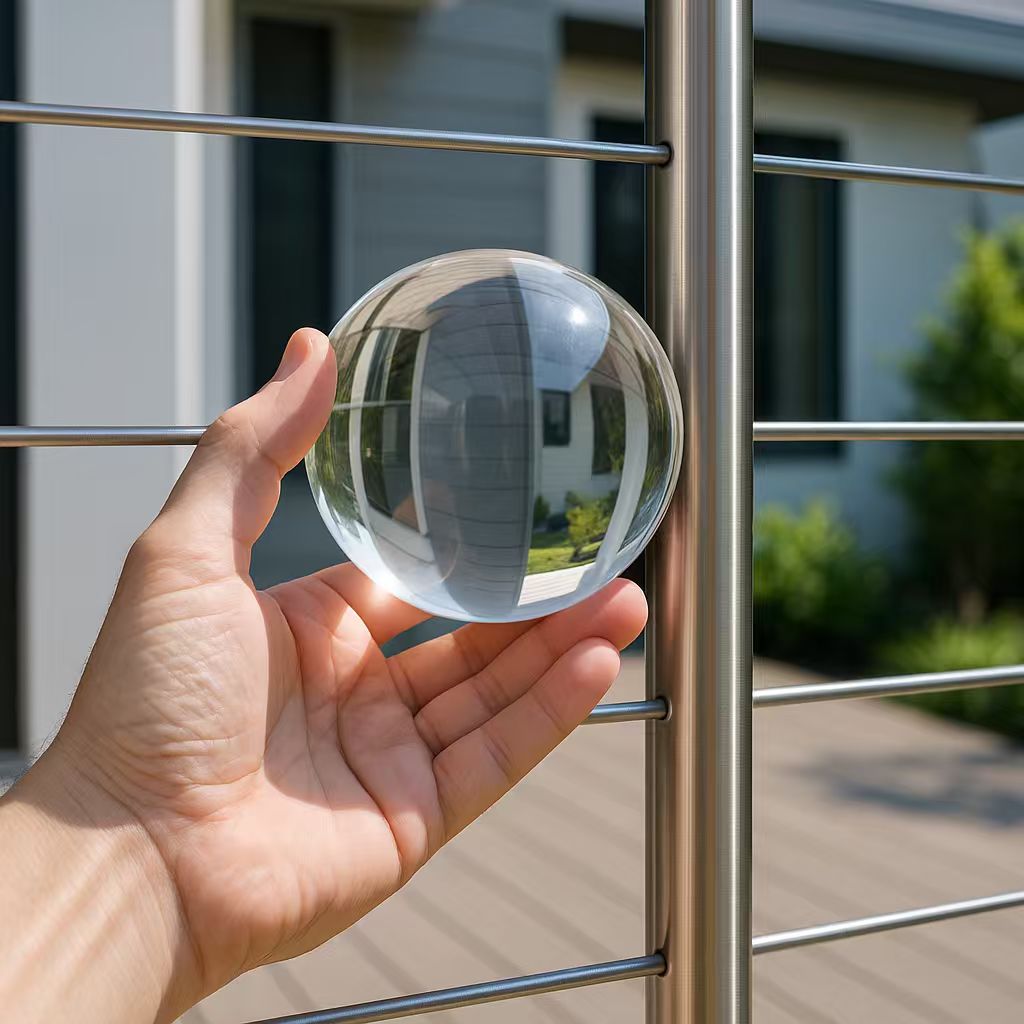

Before drawings or hardware choices, start with the safety intent. The 4-inch sphere rule requires that openings within the guarded zone are too small for a four-inch ball to pass through. The goal is to prevent head entrapment and falls, especially for children. Treat it as a design constraint from day one so every line and cut supports compliance.
Code Basics and Local Authority Notes
Most jurisdictions adopt a model building code, then publish local amendments. Inspectors follow the version enforced by the Authority Having Jurisdiction. Plan for railing code compliance by confirming the active code cycle during design. If details feel close to a limit, choose a small safety margin that still respects the 4-inch sphere rule.
Stair Exceptions and Special Areas
Stairs change how people move and where hands land. That is why many codes permit a 4-3/8 inch limit between pickets along the stair run and a 6 inch limit at the triangular opening formed by tread, riser, and the bottom edge of the guard. Use these values only where they apply and keep the spirit of the 4-inch sphere rule in the rest of the assembly.
Where the Rule Applies
The rule covers the full guarded zone from the walking surface up to the required guard height. It applies to decks, balconies, landings, and mezzanines, and it applies to stairs within the stair-specific limits. Think in terms of the largest possible gap, not the average. One oversize opening is enough to fail inspection.
Railings and Platforms
Flat runs look simple, yet problem spots often appear at corners and terminations. Center-to-center spacing can widen at the inside of a corner if the clear opening is not checked. Short runs beside stair openings also need close attention because geometry changes quickly. Walk every run with the 4-inch sphere rule in mind and measure the clear opening at posts, corners, and transitions.
Other Railing Components
Openings are not limited to balusters. The rule also governs:
- The gap between the bottom rail and the walking surface on flat areas.
- Decorative cutouts or perforations in panel guards.
- Slots where a guard meets a wall, column, window jamb, or cap rail.
Treat each of these as part of your guardrail opening limitations. If a four-inch gauge can pass, the opening is too large.
How to Measure and Verify Compliance
Self-checks save costly rework. A good deck railing inspection checklist turns drawings into a repeatable field routine and documents the condition before the inspector arrives.
The “Sphere” Test
Create three gauges from wood or plastic blocks. Use a four-inch block for flat runs, a four and three-eighths-inch block for pickets on stairs, and a six-inch block for the stair triangle. Snap layout lines, place the blocks at the widest likely points, and try to insert them gently from different angles. Check near posts, at corners, and where rail elements change direction. For flexible infill, apply a modest hand push while you test so the check reflects real use.
Deflection and Safety Margins
Static gaps tell only part of the story. Loads from a child leaning or a person steadying a hand can widen an opening in flexible infill. Build a margin into the layout. On flat runs, many builders aim for a clear opening near 3-7/8 inches so tolerances and finishing do not push the size over the limit. Write down the numbers and keep phone photos with a tape in frame. Records help resolve questions calmly.
How to Comply with the Rule
Compliance blends paper math with field craft. The following methods translate the 4-inch sphere rule into details that hold up during installation and inspection.
Spacing Your Balusters
Pick the baluster width first, then compute the center spacing.
Formula: center spacing = clear opening + baluster width.
Example: if balusters are 1.5 inches wide and the target clear opening is 3-7/8 inches, set the centers at 5-3/8 inches. For a 72-inch rail, divide by the center spacing to estimate count, then adjust so end gaps balance. Noting this in your drawings makes baluster spacing for code approval straightforward.
Cable Tension and Deflection
Cable infill behaves differently from solid pickets. Even when a static gap measures under four inches, a gentle push can open it. Control vertical spacing, often around 3 inches on center, then tension each run evenly with a gauge. Seasonal swings can relax cables, so schedule a quick recheck after installation. Before inspection, perform a simple cable railing deflection test with your four-inch block while applying light pressure. If an opening feels marginal, add one cable or shorten the span and retension.
End Posts and Intermediate Posts
End and corner posts carry the combined pull from multiple cable runs. They need greater stiffness and reliable anchorage. Intermediate posts exist to limit midspan movement. Follow conservative post spacing guidelines so deflection stays in check. In cable systems, many teams hold spacing near 4 feet on center or tighter unless engineering shows another value. If site conditions force longer spans, add an intermediate post or a stiffener and then recheck the largest opening.
Panel or Glass Systems
Panel guards and glass infill reduce visual clutter, yet their edges can hide slender slots. Control perforation size in the shop drawings and verify with blocks on site. Keep bottom and side gaps uniform and small. Where panels meet posts or walls, seal edges cleanly and confirm that a four-inch gauge cannot pass, even when a hand presses on the panel.
Common Mistakes and Quick Fixes
The same issues appear again and again, and each has a fast remedy:
- A corner opening reads wide. Shift a picket slightly or add a short infill at the corner, then retest.
- Cable rows sit too far apart or feel loose. Add one row and retain the set so the block still fails under light pressure.
- A bottom gap on a deck exceeds the limit. Lower the bottom rail, add a toe plate, or extend the infill downward to reduce the opening.
- Decorative cutouts in a panel run oversized. Add a discreet backing bar or a fine secondary infill behind the pattern to shrink the largest hole.
- A slot appears beside a post or under a cap rail. Close it with a trim strip or move the connection slightly so the clear opening returns under the 4-inch sphere rule.
Pass Inspection with the 4-Inch Rule
Begin with the 4-inch sphere rule as a design constraint, then carry it through layout, installation, and self-checks. Confirm the active code cycle, set baluster and cable spacing with a margin, keep post spans conservative, and record your measurements before inspection day. This steady approach protects families, controls rework, and gives your project a clean sign-off.
FAQs about Guards and Handrails
Q1. What structural loads must guards and infill resist?
Typical requirement: guard tops resist 200 lb concentrated or 50 plf uniform. Infill withstands 50 psf on a one-square-foot area.
Q2. Does the 4-inch sphere rule address climbability?
The 4-inch sphere rule does not regulate climbability. Some jurisdictions restrict ladder-like patterns, especially in childcare settings. Confirm local amendments early.
Q3. Which materials and finishes perform best near the coast?
Coastal sites favor 316 stainless or marine-grade aluminum with proper pretreatment. Isolate dissimilar metals and use non-chloride cleaners to prevent corrosion.
Q4. What documentation helps during inspection day?
Bring shop drawings with dimensions, pretest photos using gauges, cable tension logs, and a brief maintenance plan. Clear documentation shortens discussions and approvals.
Q5. How do guard height and handrail graspability relate to this rule?
They are separate. Common heights are 36 inches residential and 42 inches commercial. Handrail profiles must meet Type I or Type II requirements.
