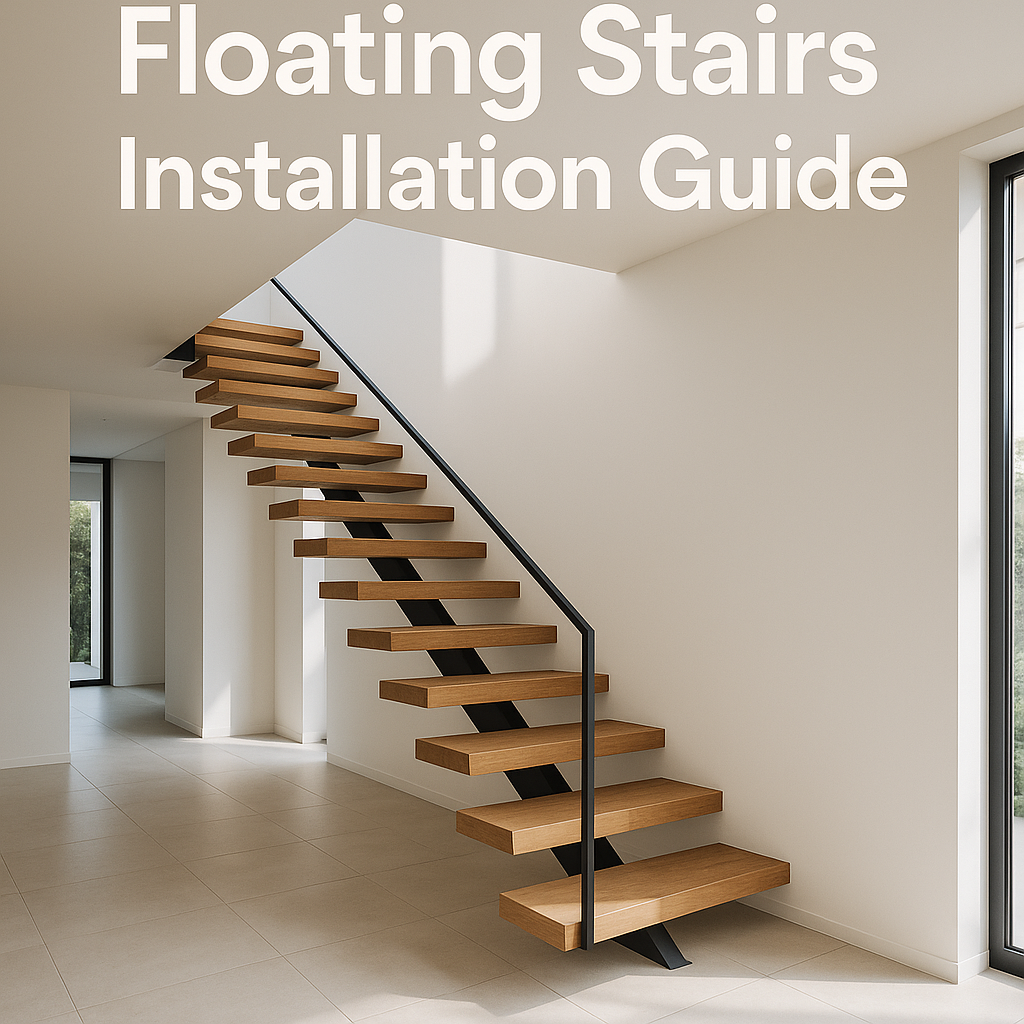

Floating stairs change how a room feels and functions. Before you choose finishes, set a plan that meets local code and supports daily traffic. This guide shows how to build floating stairs from site survey to final inspection. You will see tools, common reference dimensions, sound anchoring choices, and simple safety checks. Tasks that call for a licensed professional are flagged so you can avoid delays. Start by confirming the design benefits, then move into layout, engineering review, and a clear installation sequence.
Why Choose Floating Stairs for Space and Light
Floating stairs open sightlines and let daylight travel through the plan. The structure reads light and modern because the supports are minimal or concealed.
Benefits you can expect:
- Clear views that make compact entries feel larger
- Flexible furniture layout below and around the flight
- A strong focal point that adds design value
Floating Stairs Building Codes and Engineering
Code compliance keeps people safe and helps inspections go smoothly. Confirm local rules with your authority having jurisdiction and plan for a structural review. Jurisdictions often request stamped drawings for mono stringer or cantilevered designs.
Common reference ranges used for early planning
Always follow local code and your engineer’s direction.
| Item | Typical Range |
| Minimum stair width | 36 in |
| Maximum riser height | 7.75 in |
| Minimum tread depth | 10 in |
| Handrail height | 34 to 38 in |
| Guard height at stairs | 36 in or greater |
| Guard opening limit | A 4 in sphere may not pass |
| Tread edge concentrated load | 300 lb reference |
Keep two priorities in mind. First, maintain a uniform rise and run through the entire flight. Second, check deflection at the tread nose against the engineer’s limit.
Tools and Materials for Building Floating Stairs
Good tools reduce errors and control the schedule. Protect finished floors and keep dust contained so work stays clean and safe.
Core tools and what they do
| Tool | Purpose |
| Laser level and plumb bob | Layout, pitch control, and alignment |
| Rotary hammer with anchor kit | Drilling and setting anchors in concrete or masonry |
| Torque wrench | Verifying torque against the spec |
| Clamps and temporary bracing | Holding treads and guards during fastening |
| PPE set | Eye, hearing, dust, and fall protection |
Materials to plan early
- Stringer steel sized by the engineer for span and total live load
- Treads in hardwood, engineered wood, steel, stone, or glass with all edges sealed
- Anchors matched to substrate and embedment depth, with sleeves and washers per schedule
- Adhesives or structural epoxy where details require hybrid fixing
- Finish systems for steel and wood suited to the expected traffic
Match anchor type to the base material. Mechanical expansion anchors suit sound concrete with proper edge distance. Adhesive anchors help when thicker embedment is needed or when sleeves are preferred. Clean holes with a brush and vacuum. Record embedment depth and final torque.
Floating Stairs Components and Initial Planning
A clear plan keeps the look balanced and the structure safe. Begin with measured drawings and a site survey. Verify landings, headroom, and clearances, then coordinate the guard and handrail style with the stair geometry.
Primary components:
- Stringer or concealed frame that carries the flight
- Treads with enough thickness and span to limit deflection
- Connections at the wall, floor, and landing that match the hardware schedule
- Guard and handrail that reach the required height and opening limits
Confirm finishes and lighting early. Wood adds warmth and accepts spot repair. Steel or stone creates a crisp line and resists dents. Plan wire routes and drivers before fabrication. For a modern design, installing a wire stair railing can enhance the open feel of a suspended staircase.
Step-by-Step Floating Stairs Installation Guide
Read the whole sequence first. Work at a steady pace and document measurements so the inspector sees a clean record.
Prepare the wall and subfloor
Protect floors and set dust control. Snap centerlines and lay out the pitch with a laser. Verify framing or steel backing can accept anchors. Pre-drill where sleeves are specified.
Fabricate or receive the stringer
Check angle cuts, hole locations, and hardware counts at ground level. Dry fit brackets. Apply shop primer or powder coat as specified. Label fasteners by step number.
Mount the stringer
Lift with helpers or a small hoist. Align to layout lines for pitch and plumb. Start fastening at the primary bearing point. Tighten anchors in a staggered sequence. Confirm hole cleanliness and embedment depth for every anchor. Record torque values and recheck alignment after the first full pass.
Install the treads
Seal wood on all sides, including edges and penetrations. Set the first and last treads to lock geometry, then infill the middle. Confirm nosing alignment, tread depth, and uniform rise before final fastening.
Add handrails and lighting
Lay out posts or glass clamps to reach the required guard height. Complete handrail returns at landings. Tension cables or set panels per the hardware guide so service deflection still respects the opening limit. Route and test lighting before covers go on.
Quick code checks during install
- Rise and run remain uniform across the flight
- Handrail height falls within the allowed band and returns are secure
- Guard height and openings meet safety limits
- Treads feel firm near the front edge under a standing person
Floating Stairs Planning and Safety Checks
Quality control prevents rework and builds trust at inspection. Create a short checklist and sign off at each milestone.
Pre-inspection checklist
- Layout drawings with final dimensions and headroom
- Anchor data sheet, embedment confirmations, and a torque log
- Photos of concealed conditions before cover plates go on
- Handrail height and return measurements at both landings
- Guard height and opening measurements at mid-span and near posts
- Tread deflection spot checks and fastener counts by step
Finishes and Maintenance for Floating Stairs
Finishes protect the structure and keep the stairs looking sharp. A simple routine extends service life and preserves safety.
Suggested care rhythm:
- Wood treads: vacuum grit, wipe with a neutral cleaner, and recoat at the recommended interval
- Steel: keep dry and clean, repair chips quickly to block corrosion
- Glass or metal infill: clear fingerprints, recheck cable tension or panel hardware during seasonal checks
DIY vs Professional Floating Stairs Installation
Some owners enjoy projects with clear drawings and a straight run. Others prefer a contractor who brings rigging skills, inspection experience, and code fluency. Choose the path that fits your risk tolerance, timeline, and tool set.
Use this quick guide to decide:
- DIY fits simple geometry, strong carpentry skills, and a helper team
- Hire a licensed contractor for cantilevered designs or work that touches structural walls
- Ask for insurance, references, a detailed scope, and a schedule with hold points for inspections
Whether you choose DIY or hire a pro, being aware of common railing installation pitfalls is crucial for a safe and durable result.
Next Steps To Build Floating Stairs
Floating stairs deliver a bright focal point when structure, code, and detailing line up. Start with measured drawings and an engineering review. Confirm local rules before you order materials. If you want to try building a small section first, create a mockup to test tools and refine your approach. When the plan is ready, move through the sequence with steady checks and keep a tidy log for a smooth inspection.
FAQs about Floating Stairs
Q1. How can I plan my lead times and budget for floating stairs?
Start off with three buckets: engineering and permits, fabrication and freight, installation and inspection. Bring a 10–15% contingency to account for site surprises. Check crane size, delivery route, and lift access. Schedule finish floor work after installation. Demand early booking of inspection windows to avoid idle days and reshuffling charges.
Q2. How can I lessen the noise from footsteps and the feeling of bouncing on a floating stair?
Thicken the tread or fit a hidden stiffener for longer parts. Make the brackets tighter together. Include a deflection limit such as L/360 or L/480 in drawings. Fit neoprene isolation at brackets to damp vibration. Avoid metal against metal where possible and recheck the torque after a few days.
Q3. How can I avoid harming pets and children while keeping the same look?
Utilize temporary riser infill panels that clip into brackets. Install anti-slip nosings and a contrasting strip to the front edge. Select a continuous handrail with returns. Fit motion-sensor step lighting. Gate the bottom and top landings during training and check guard tension and hardware monthly.
