This guide explains when commercial ramps must have handrails, how to design them to ADA standards, and how to avoid common retrofit mistakes.
The most effective ADA ramp upgrades put correctly designed, continuous handrails at the center of the solution, not as an afterthought. When the geometry, terminations, and edge protection are right, your ramp feels predictable and secure to every visitor, not just technically "compliant."
A visitor arrives on a rainy evening, grips the rail at your entrance ramp, and immediately senses whether they can trust the next few feet under their wheels or feet. In commercial projects, the ramps that consistently pass inspections and actually work for wheelchair users, parents with strollers, and older adults are the ones where the handrails were laid out with the same care as the concrete and steel. This guide walks through when your ramp needs handrails, how to size and detail them to ADA standards, and which upgrade strategies deliver the biggest gains in safety and usability.
When Your Commercial Ramp Must Have Handrails
On commercial properties in the United States, ADA ramp standards are not optional; they are civil-rights requirements that apply to both new construction and alterations of existing buildings. The ADA and related guidance from the U.S. Access Board define a ramp as any walking surface with a running slope steeper than 1:20, and they require a compliant ramp or curb ramp whenever an accessible route encounters a level change greater than 0.5 inches. That is why small "make-do" steps at storefronts and service doors routinely fail accessibility reviews.
Once a walkway becomes a ramp under these rules, the next trigger for handrails is total rise. Where a ramp run rises more than 6 inches, ADA standards require handrails on both sides for the full length of that run, including around switchbacks and doglegs. This requirement appears consistently in technical material from the U.S. Access Board, commercial ramp specialists, and handrail manufacturers, because a single rail leaves many users forced to lean across traffic or open edges.
Very short ramps with 6 inches of rise or less may use a single handrail on one side, but even there, many accessibility guides recommend adding rails on both sides in busy public entrances or where there is any drop-off at the edges. Walking surfaces with slopes flatter than 1:20 are treated as standard walkways, so they do not require handrails, although any rail you add still has to meet the ADA handrail rules in Section 505.
Slope and run length determine how many ramp runs and landings you need, which then drives your handrail layout. The maximum running slope for a standard ADA ramp is 1:12, so every inch of vertical rise calls for at least 12 inches of ramp length. For example, a 24-inch rise up to a loading dock needs at least 24 feet of ramp run, and a 40-inch rise needs at least 40 feet. In addition, any single ramp run may rise no more than 30 inches before a level landing is required. One practical implication is that a ramp that climbs 36 inches cannot be one continuous slope; you must split it into at least two runs with an intermediate landing and continue the handrails through the turn.
Before touching the rails on an existing ramp, measure three things: total rise, slope, and clear width. If the slope is steeper than 1:12, the ramp itself is noncompliant and handrail upgrades alone will not solve the problem. If the clear width is less than 36 inches between rails, you will have to widen the path or move the rail line outward to restore code-required width.
Getting the Geometry Right: Heights, Clearances, and Extensions
ADA ramp handrails are defined more by geometry than by material. Several detailed guides that draw from the 2010 ADA Standards, including resources from the U.S. Access Board, AccessibilityChecker, Upside Innovations, and Simplified Building, converge on the same core dimensions.
For ramps serving adults, the top surface of the handrail must be between 34 and 38 inches above the ramp surface, and that height has to remain consistent along the entire run and through landings. In areas primarily serving children, such as elementary schools and play areas, guidance from the Access Board and manufacturers like Promenaid recommends a second, lower rail between 20 and 28 inches high, mounted at least 9 inches below the primary rail to avoid entrapment. A common solution on school projects is a primary rail at about 36 inches and a secondary rail around 26 inches.
Clear width between opposing handrails must be at least 36 inches so wheelchairs and other mobility devices can pass. When guardrails or balusters are present for fall protection, their spacing must not reduce that clear width. Many building codes also require guardrails with a top height of about 42 inches and infill that blocks a 4-inch sphere; those are separate from the ADA handrails, which must sit lower and be graspable.
Hand clearance from adjacent walls and posts is equally important. ADA-based handrail guides specify a minimum of 1.5 inches of clear space between the rail and any wall or surface, including at brackets. This clearance allows a full power grip and keeps knuckles from scraping along walls. Brackets must be strong enough to resist rotation, and the rail cannot spin in its fittings.
The gripping surface itself has strict limits. AccessibilityChecker and Simplified Building, summarizing ADA Section 505, note that circular handrails must be between 1.25 and 2 inches in diameter, while non-circular profiles must have a perimeter between 4 and 6.25 inches and a maximum cross-section of 2.25 inches. Product-specific systems such as some aluminum handrails from BraunAbility and ADACentral-style guides work within this band but often narrow it to around 1.25 to 1.5 inches for a comfortable, secure grip. In all cases, the surface must be smooth, continuous, and free of sharp edges or abrasive coatings.
Extensions at the top and bottom of each ramp run are a point where many installations fail inspection. ADA handrail rules require the rail to extend at least 12 inches horizontally beyond both the top and the bottom of the ramp slope while staying at the same height, then return to a wall, guard, or floor to eliminate snagging hazards. Guidance from the U.S. Access Board, Promenaid, and several manufacturers makes it clear that you do not need a particular "D loop" shape; any configuration that provides the full 12 inches of horizontal extension and a proper return can be acceptable, including turns around corners on the landing.
The table below pulls together the key dimensional checks you should make on any commercial ramp handrail upgrade.
Detail |
Key requirement (typical ADA-based guidance) |
Upgrade note |
Adult handrail height |
34-38 in above ramp surface |
Aim for the middle of the range to allow construction tolerances. |
Child handrail (where needed) |
20-28 in high, at least 9 in below the main rail |
Use in schools and child-focused areas, parallel to main rail. |
Clear width between rails |
Minimum 36 in |
Do not let posts or guards intrude into this width. |
Wall or post clearance |
Minimum 1.5 in between rail and adjacent surface |
Check bracket designs and allow for finish thickness. |
Circular grip diameter |
About 1.25-2 in |
Many systems choose roughly 1.25-1.5 in for a firm, comfortable grip. |
Top and bottom extensions |
At least 12 in horizontal beyond the ramp slope, then returned safely |
Avoid open pipe ends; use elbows or return fittings. |
A practical way to build in tolerance, echoing broader accessibility design advice from building standards consultants, is to avoid specifying your rail right at 34 or 38 inches. Instead, target something like 35 or 36 inches and clearly show that on both drawings and shop details so small field deviations still stay within the allowed band.

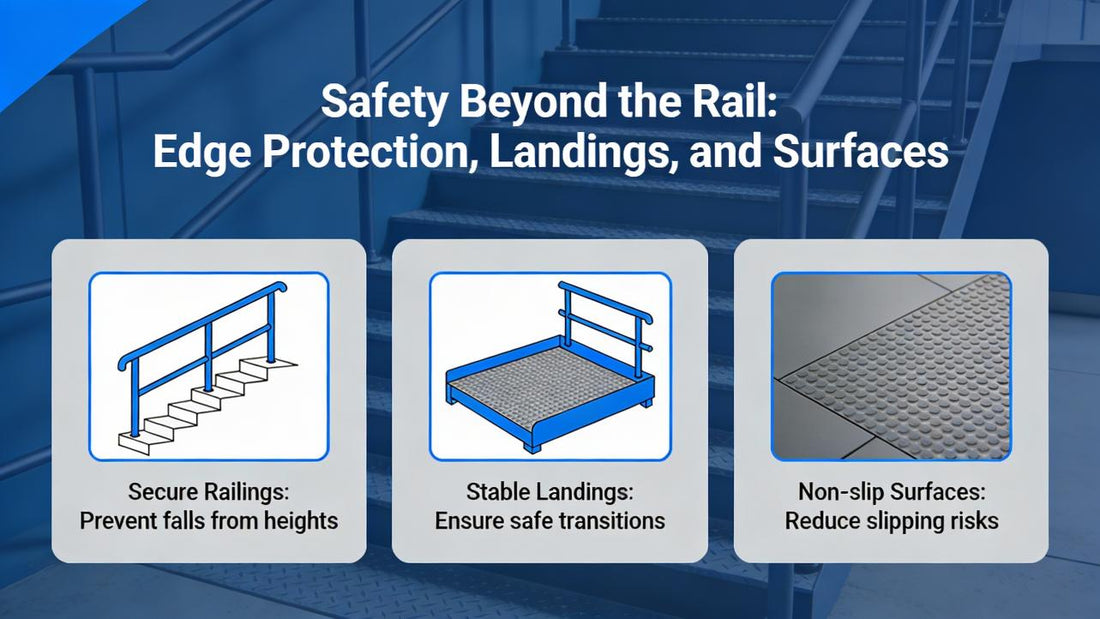

Safety Beyond the Rail: Edge Protection, Landings, and Surfaces
Handrails do not work in isolation. The ADA ramp sections in the U.S. Access Board guides, along with commercial ramp resources from Upside Innovations and AccessibilityChecker, emphasize that edge protection, landings, and surface performance are integral to a safe system.
Where a ramp requires handrails, it also requires edge protection along the runs and landings to keep casters and cane tips from slipping off the side. The Access Board explains three main strategies: a curb or toe board at least 4 inches high, a barrier or rail that blocks a 4-inch sphere at the edge, or a ramp or landing surface that extends at least 12 inches beyond the inside face of the handrail. Promenaid and other manufacturers echo this with guidance that any gap between the ramp surface and a curb or barrier should be under 4 inches. For upgrades, that often means either adding a concrete or metal curb at the outside edge, or deliberately setting the handrail line inboard so the deck itself provides the required 12-inch extension.
Landings are the second major safety control. ADA-based requirements from the Access Board, Upside Innovations, and ADA-compliance summaries converge on a simple rule set: every ramp run needs a level landing at the top and bottom, each landing must be at least as wide as the ramp and at least 60 inches long, and any landing where the direction changes should have a clear 60-by-60-inch area. Landings must be essentially level, with slopes no steeper than about 1:48, yet must still drain so water does not pond. Accessibility consultants repeatedly flag steep or undersized landings as one of the most common ramp mistakes, because they rob users of a safe place to stop or turn.
A quick check on a typical two-run commercial ramp illustrates how these pieces fit together. Suppose a ramp climbs 24 inches from parking to entry. At a 1:12 slope, each run could rise 12 inches over 12 feet, with a flat intermediate landing and landings at the top and bottom. Each landing must be at least 5 feet long, and your handrails must run continuously along the runs and across those landings, with proper 12-inch extensions beyond the start and end of the sloping segments. Edge protection must be continuous along both runs and landings unless a very small drop-off and specific exceptions apply.
Surface performance ties it all together. Across sources such as Preferred Paving, National Ramp's home-access guidance, AccessibilityChecker, and the ADA ramp sections, the same prescription appears: ramp surfaces must be firm, stable, and slip-resistant in all expected weather. Textured concrete, grooved metal, aluminum decking, and composite boards with integral grit are common choices. Outdoor ramps and approaches must be graded so water does not accumulate, and ongoing maintenance (clearing snow, ice, leaves, and debris, and monitoring for worn traction) is part of staying both safe and compliant.
Choosing and Installing Handrail Systems for Retrofits
Once you understand the geometry, you can choose handrail systems that make retrofits practical without tearing out entire structures. Manufacturers like Digger Specialties (with Westbury aluminum ADA rails), Promenaid, and Ultralox have built complete handrail lines specifically around ADA guidance.
Westbury's ADA aluminum handrails are designed for both indoor and outdoor use on ramps, stairs, decks, and other access routes in commercial and public spaces. They emphasize compatibility with existing railing systems and the ability to mount directly to walls or structures, which is valuable when you are upgrading an older concrete ramp that has no dedicated posts. Promenaid similarly offers modular, ADA-conforming rails with wall returns, L-shaped brackets, and adjustable elbows so you can follow complex ramp layouts while keeping the rail continuous.
Ultralox goes further by packaging ADA handrail components into kits that reflect the common patterns found in ADA ramp layouts. A pipe rail and 90-degree return kit provides a continuous graspable rail with clean wall returns for short runs under about 8 feet. Extension kits allow you to splice on additional 94-inch pipe sections with joiners and support brackets for longer ramps. Handicap loop kits supply continuous loops at landings and direction changes, making it easier to maintain support where users transfer from level to sloped surfaces. Each kit includes matching screws and backer plates so the finished system looks intentional rather than patched together.
Material choice is another decision point. Concrete and steel have long been the default for commercial ramps, but modern accessibility guidance from groups like BraunAbility and National Ramp highlights the advantages of aluminum and other corrosion-resistant materials. Aluminum handrails and ramp surfaces provide high strength with lower maintenance and are less prone to rot or rust than many wood or steel installations, especially in freeze-thaw climates or near deicing salts. Wood railings can offer warm aesthetics, but they usually require closer support spacing and more frequent inspection to maintain a smooth, stable grip.
Whatever system you choose, the installation must honor the ADA geometry. This means laying out post and bracket locations so the rail stays in the 34-38-inch height band along the entire run, verifying at least 36 inches of clear width between rails, setting back from edges enough to achieve required edge protection, and using factory elbows or fittings for the 12-inch extensions and returns instead of cutting rails off short. It also means checking that the rail cannot rotate within its fittings and that bracket hardware does not block the top and sides of the gripping surface.
Avoiding Common Ramp Handrail Mistakes
Accessibility engineers and consultants consistently report that ramps and handrails are among the most frequently mishandled details on commercial projects. Terp Consulting's discussion of common accessibility mistakes, together with field-oriented pieces from Preferred Paving, Upside Innovations, and National Ramp, points to a familiar set of problems that you can deliberately design out in your upgrades.
One recurring issue is treating guardrails as if they automatically satisfy ADA handrail requirements. OSHA and building-code guardrails often use a 42-inch top rail and are designed around fall protection rather than graspability. ADA handrails, by contrast, must sit lower, at 34-38 inches, and meet strict gripping and clearance rules. A robust upgrade strategy is to keep the guardrail for fall protection and attach a continuous ADA handrail to the inside of the guard or wall, respecting the 36-inch clear width.
Another mistake is breaking handrail continuity at landings, posts, or changes in direction. ADA standards and manufacturer guidance all stress that handrails must be continuous along both runs and landings, with the inside rail uninterrupted at switchbacks and doglegs. Fixing this typically means replacing segmented rails with continuous pipe or modular systems that use adjustable elbows and specialty fittings so the rail can turn corners without gaps.
Incorrect terminations are also common. Open-ended pipe rails that stop right at the top riser or ramp edge create snagging hazards for bags and clothing and can cause users to lose support abruptly. ADA guidance requires the 12-inch horizontal extension and a return to a wall, guard, floor, or another rail segment. Many modern kits include dedicated 90-degree return fittings and loop components precisely because this detail trips up so many older installations.
Finally, tolerance management often gets overlooked. Accessibility specialists caution against specifying critical dimensions right at the minimum or maximum allowed because even small field deviations can push the built condition out of compliance. Applying that lesson to handrails, it is wise to call out heights, clearances, and grip diameters that sit comfortably within the allowed range and then verify them repeatedly during layout and installation. Combining this with a final field checklist that confirms slope, width, landings, rail height, continuity, extensions, edge protection, and surface traction brings the ramp in line with both ADA intent and the day-to-day needs of people using it.
FAQ: Quick Answers on Commercial Ramp Handrails
Do I have to rebuild my entire ramp to upgrade the handrails?
Not always. If your existing ramp already meets ADA limits for slope, rise per run, width, and landings, you can usually retrofit compliant handrails with relatively modest work by adding posts or wall brackets and installing a continuous rail system with proper extensions and edge protection. If the ramp itself is too steep, too narrow, or missing landings, however, adding perfect handrails will not make the route compliant, and you will need to address the ramp geometry as well.
Can a guardrail double as an ADA handrail?
In most commercial situations, no. Guardrails for fall protection are typically about 42 inches high and can be bulky or hard to grasp, while ADA handrails must be between 34 and 38 inches high with a small, rounded, continuous gripping surface and specific clearances. The common solution is to keep or add a 42-inch guardrail where required by building and OSHA codes and mount a smaller, ADA-compliant handrail on the inside face, attached to guard posts or the wall.
When should I add a child-height handrail?
Secondary, lower handrails are recommended where children are the primary users of a ramp, such as in elementary schools, day cares, and play areas. Guidance from the U.S. Access Board and manufacturers like Promenaid and Simplified Building suggests mounting this rail between 20 and 28 inches above the ramp surface and at least 9 inches below the main rail. In mixed-use facilities with both adults and children, pairing a standard-height rail with a carefully placed child rail gives both groups a secure, independent grip.
A ramp handrail is a piece of safety equipment, not trim. When you design and install it with the same precision you bring to structure and drainage, respecting ADA geometry, choosing durable systems, and checking the details in the field, you create entrances that feel trustworthy to every person who relies on that rail to move through your building.
