How to Securely Anchor a Metal Pergola: A Surface-Specific Guide
Securing a modular metal pergola is a critical step for ensuring long-term stability and safety against wind uplift. Because aluminum pergolas are lighter than traditional timber, the connection between the post base and your patio surface must be engineered to resist both lateral movement and vertical suction.
The correct anchoring method depends entirely on your substrate: poured concrete, decorative pavers, or a wood deck. Using improper hardware or skipping structural reinforcement can lead to shifting or structural failure during storms. This guide provides a practical framework for choosing the right anchors and executing the installation based on common backyard conditions.
Quick Selection Guide: Anchoring by Surface Type
| Surface Type | Recommended Hardware | Primary Structural Goal |
|---|---|---|
| Poured Concrete | Wedge anchors or heavy-duty sleeve anchors | Achieve manufacturer-specified embedment (typically 3–4") into solid slab. |
| Pavers over Slab | Extra-long masonry anchors or "Sandwich" method | Reach the concrete sub-base; do not anchor to pavers alone. |
| Pavers over Sand/Dirt | Concrete footings (poured piers) | Create a structural mass below the frost line to resist uplift. |
| Wood/Composite Deck | Lag screws or through-bolts with blocking | Connect directly to structural joists or added internal blocking. |
Note: Hardware specifications should always be verified against your pergola kit's base plate hole diameter and the anchor manufacturer’s load ratings.
Why Anchoring Matters for Modular Metal Pergolas
Modern aluminum pergolas, such as Senmit aluminum pergola kits, are designed for durability and ease of assembly. However, their aerodynamic profile can create significant uplift during high winds.
A common pattern observed in failed DIY installations is "racking"—where the top of the pergola moves while the base stays still—or "pull-out," where the anchors fail to grip the substrate. Official deck construction guides, such as the Prescriptive Residential Wood Deck Construction Guide, emphasize that wind resistance depends on a continuous load path from the roof down to the foundation.
Wind Load Verification Workflow
Before selecting hardware, follow this verification chain:
- Check Kit Specs: Identify the manufacturer’s maximum wind speed rating and the required anchor diameter.
- Local Requirements: Consult your local building department for the required "Wind Zone" rating in your area.
- Substrate Depth: Confirm your concrete or wood structure meets the minimum thickness required to achieve the anchor's rated "pull-out" strength.
- Professional Review: If your site is in a high-wind coastal zone or on a rooftop, a structural engineer should verify the anchoring plan.
1. Anchoring to Concrete Patios

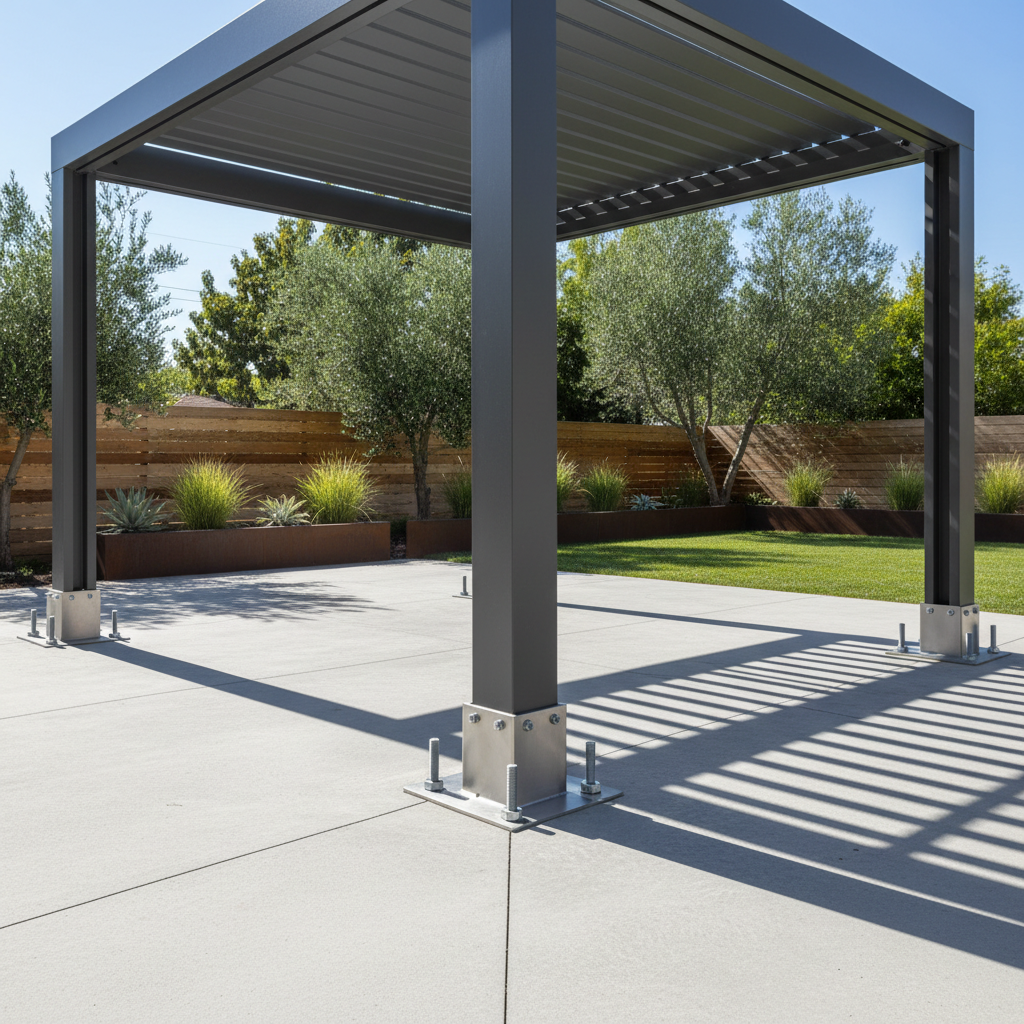

Poured concrete is the most reliable surface for a metal pergola. For existing slabs, "post-installed" anchors are the standard.
- Hardware Choice: Stainless steel or galvanized wedge anchors are preferred for their high pull-out resistance in solid concrete.
-
The Process:
- Mark post locations using the pergola base plates as a template.
- Use a hammer drill with a masonry bit to drill to the depth specified by the anchor manufacturer. While 3–4 inches is common, always follow the specific anchor's technical data sheet.
- Critical Step: Clean the dust out of the hole using a blow pump and vacuum. In many mechanical anchoring systems, residual dust can act as a lubricant, potentially reducing the anchor's effective load capacity by up to 50% depending on the hole condition.
- Drive the anchor through the base plate and tighten to the specified torque. Avoid over-tightening, which can cause concrete "spalling" or stress fractures.
2. Anchoring to Pavers (The "Hidden Substrate" Challenge)
A common mistake is anchoring directly into a decorative paver. Because pavers are "floating" on a sand or gravel bed, they offer almost no resistance to vertical wind uplift.
Verification Step: Before drilling, remove one paver at a post location or use a masonry bit to perform a test drill. If the bit drops into soft sand after 1–2 inches, you have a sand-set base. If it hits hard resistance, you likely have a concrete sub-slab.
- Scenario A: Pavers over Concrete: Use extra-long anchors that pass through the paver and embed into the concrete below. Ensure the anchor is long enough to meet the minimum embedment depth after accounting for the thickness of the paver and sand bed.
- Scenario B: Pavers over Compacted Base: You must remove the pavers at each post location and pour a concrete footing (typically 12"x12" and 24" deep, though this varies by local frost line and soil type). Once the concrete sets, you can reinstall the pavers around the post or anchor the post directly to the new pier.
3. Anchoring to Existing Wood Decks
Mounting a pergola to a wood deck requires more than just driving screws into the floorboards. Surface boards are not structural and will likely pull up during a storm.
- Structural Blocking: You must install "blocking"—extra 2x8 or 2x10 lumber—under the deck boards between the joists. This ensures the lag screws are biting into several inches of solid structural wood rather than just 1-inch decking.
- Hardware Choice: Use 1/2-inch diameter galvanized lag screws or through-bolts with large fender washers on the underside for maximum surface area.
- Pilot Holes: Always drill pilot holes to prevent the joists or blocking from splitting. As noted in research on screw pull-out strength, the density of the wood (e.g., Pine vs. Ipe) significantly impacts the "grip" and required pilot hole size.
Illustrative Comparison of Anchoring Methods
The following chart provides a heuristic comparison of stability versus installation complexity. These values are for planning guidance and represent common industry rules of thumb; they are not intended for final engineering decisions.
Anchoring Method by Surface Type
Heuristic comparison of anchoring choices by surface type for quick selection and caveat awareness.
View chart data
| Category | Recommended Anchor Type | Typical Hardware | Wind Uplift Resistance (1-5) |
|---|---|---|---|
| Concrete | 5 | 4 | 3 |
| Pavers over slab | 2 | 1 | 2 |
| Wood Deck | 3 | 4 | 5 |
As the visualization suggests, concrete provides the highest capacity with moderate effort, while wood decks require significant "hidden" work (blocking) to achieve similar safety levels.
High-Wind Upgrades and Planning
Most modular kits list a maximum wind speed (e.g., 60–80 mph). This rating is only valid if the anchors meet the manufacturer's minimum embedment and substrate requirements.
In high-wind zones, consider these upgrades:
- Chemical Anchors: Using epoxy adhesive with threaded rods in concrete can provide higher vibration resistance than mechanical wedge anchors in certain environments.
- Diagonal Bracing: If the kit design allows, adding knee braces can reduce the "racking" force on the base anchors.
- Refer to the 2026 Homeowner's Blueprint for Modular Metal Pergolas for more on wind-load planning and current industry trends.
Common Mistakes to Avoid
- Ignoring the "Hole Cleanout": Leaving masonry dust in a drilled hole is a leading cause of anchor slippage.
- Using Standard Screws on Decks: Never use standard deck screws for pergola posts; they lack the shear strength required to hold the structure's weight under lateral load.
- Drilling Too Close to Edges: Keep anchors at least 3–4 inches away from the edge of a concrete slab (or as specified by the anchor manufacturer) to prevent cracking.
- Skipping Waterproofing: On wood decks, apply a high-quality butyl tape or exterior-grade silicone sealant around the screw holes and under the base plate. Ensure the sealant has adequate time to cure (typically 24 hours) as per the manufacturer's instructions to prevent rot in the structural joists.
Surface Suitability Checklist
Before you begin your Senmit pergola installation, verify the following:
- [ ] Concrete: Is the slab at least 4 inches thick (or as required by the kit) and free of major structural cracks?
- [ ] Pavers: Have you confirmed the sub-base type (concrete vs. sand) via a test hole?
- [ ] Wood Deck: Do you have clear access to the underside of the deck to install structural blocking?
- [ ] Permits: Have you checked with your HOA or local building department regarding "permanent structure" anchoring rules?
- [ ] Hardware Compatibility: Do the anchor heads and washers fit within the pergola post's base plate and decorative covers?
Important Structural Safety Note
This guide provides general informational guidance based on common construction practices. It is not a substitute for professional engineering advice or local building code compliance. Incorrect anchoring can lead to property damage or injury. Always review your specific manufacturer instructions and consult a qualified contractor if you are unsure about your site's structural integrity.
Final Thoughts
A metal pergola is a significant investment in your outdoor living space. Taking the extra time to anchor it correctly—whether that means adding blocking to a deck or pouring footings under pavers—ensures the structure remains a safe, permanent fixture. For those looking to further customize their setup, exploring integrated LED lighting or retractable screens can enhance the experience once the foundation is secure.
By following these substrate-specific steps and verifying your site conditions, you can move forward with your DIY project with the confidence that your pergola is built to last.
