Installing your own cable railing can save thousands in contractor fees while delivering a sleek, modern look that maximizes views from your deck. Yet many first-time DIYers end up with sagging cables, failed inspections, or systems that loosen within months. The good news is that most of these problems stem from a handful of predictable mistakes that are easy to avoid with the right planning, tools, and techniques.
Understanding these pitfalls upfront helps you make better decisions about hardware, spacing, and tensioning so your railing meets code and stays tight for years. This guide breaks down the five most common installation errors, why they happen, and exactly how to prevent them using proven methods that work for typical residential decks.

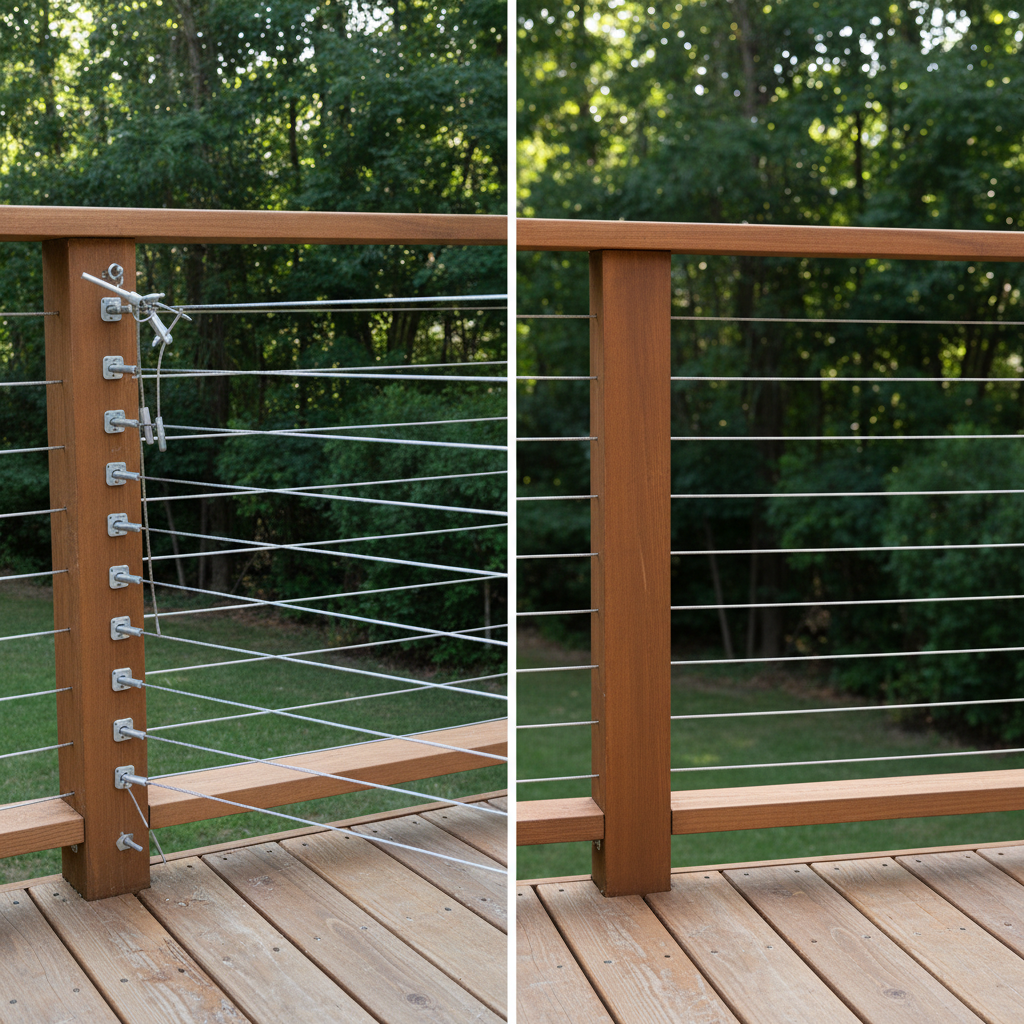

Mistake 1: Incorrect Post Spacing and Tensioning That Causes Cable Sag
Cable sag tops the list of DIY complaints because it turns an elegant railing into an eyesore and potential safety issue. The primary culprits are posts spaced too far apart or cables that never receive adequate initial tension.
Most residential codes limit the maximum distance between posts to 4 to 5 feet for 1/8-inch cable, yet many beginners stretch runs to 6 feet or more thinking the cable will hold. Without intermediate supports, even properly tensioned cable will droop under its own weight and thermal expansion.
Tensioning mistakes compound the problem. Hand-tightening or using basic turnbuckles without measuring often leaves cables at 150-200 pounds of tension when 300-400 pounds is needed for 1/8-inch stainless cable on longer runs. Wood posts can also flex slightly, and temperature swings cause cables to expand and contract, loosening the system over time.
To avoid this, plan your layout with posts no more than 4 feet apart on spans longer than 8 feet total. Use intermediate pickets or support posts where runs exceed recommended limits. Invest in proper tensioning tools rather than relying on manual adjustment. Following the guidance in this cable railing sag guide helps identify the exact tension levels your specific setup requires.
Mistake 2: Ignoring Building Code Requirements and Failing Inspection
Deck railing inspections catch many DIY cable projects because homeowners overlook key rules like the 4-inch sphere test. Inspectors check that no gap allows a 4-inch ball to pass through anywhere along the railing, including between cables, posts, and the deck surface.
Cable spacing must stay under 4 inches on center, and many jurisdictions require specific post attachment methods, minimum cable diameters, and proof of structural loading. Using the wrong grade of stainless steel or skipping proper anchoring can also trigger rejection.
Beginners sometimes assume that if the railing "looks sturdy," it will pass. In reality, inspectors focus on measurable compliance rather than appearance. Coastal areas add another layer with requirements for marine-grade materials to resist corrosion.
Review your local code early and choose hardware tested to meet IRC standards. The cable railing code requirements guide provides a clear breakdown of the 4-inch sphere rule, post spacing limits, and tensioning standards that apply in 2026.
Mistake 3: Using the Wrong Tools and Hardware for the Job
Trying to install cable railing with generic hardware store tools almost always leads to frustration and poor results. Cable cutters designed for electrical wire crush stainless steel strands, creating frayed ends that weaken the system. Improvised crimping methods produce uneven or loose fittings that fail under tension.
Many DIYers also select the wrong size turnbuckles or lag screws for their post material. Wood requires longer lag screws with proper pilot holes, while steel posts need specific brackets or welded attachments. Mixing incompatible thread sizes or using non-marine grade components accelerates corrosion in outdoor environments.
The solution starts with acquiring the correct specialized tools before cutting any cable. A quality hydraulic crimper and dedicated cable cutter make clean, professional results achievable even for beginners. Senmit's 10 Ton Hydraulic Cable Crimper Hand Tool delivers consistent crimps on 1/8 and 3/16-inch cable while the included Cable Cutter for wire rope up to 5/32 inch prevents damage.
Check out the complete tool guide for DIY cable railing to match tools to your specific project needs.
Mistake 4: Misaligned End Posts, Corner Posts, or Terminal Fittings
Even with perfect cable and tension, misalignment at the end posts or corners creates uneven loading that leads to sag and stress on fittings. Posts that aren't plumb or corner brackets installed at the wrong angle cause cables to pull in different directions, loosening the entire run.
Terminal fittings must sit flush against the post face, and lag screws or through-bolts need to be installed perpendicular to the surface. Many DIYers rush this step and end up with posts that lean slightly outward under cable tension, especially on elevated decks.
Take time to verify post plumbness with a quality level before drilling any holes. Use temporary bracing during installation and check alignment after each post is secured. For corners, consider using specialized corner posts or brackets designed for cable systems rather than forcing standard fittings into awkward angles.
The pro contractor guide to efficient cable railing installation offers practical tips on post alignment that translate well to DIY projects.
Mistake 5: Overlooking Material Compatibility and Wood Movement
Using mixed metals without considering galvanic corrosion can destroy a railing system within a few seasons. Combining aluminum posts with stainless cable or using carbon steel fasteners with marine-grade cable creates electrolytic reactions that pit and weaken components.
Wood movement presents another hidden issue. Pressure-treated lumber shrinks as it dries and moves with seasonal moisture changes. If cables are tensioned when the wood is wet, they can become dangerously loose once the posts contract.
Always select all components from the same compatible material family. Marine-grade 316 stainless steel offers the best long-term performance in outdoor settings. Allow new wood to acclimate or factor in expected shrinkage when setting initial tension. Periodic re-tensioning becomes part of normal maintenance rather than a sign of failure.
How to Choose the Right Setup for Your Deck
Avoiding these mistakes requires matching your hardware and approach to your specific deck conditions. Start by measuring your exact span lengths and post heights. Calculate the number of cables needed to maintain less than 4 inches of spacing. Factor in your local climate and whether your deck faces salt air, heavy rain, or freeze-thaw cycles.
Create a checklist before buying:
- Confirm all posts will be spaced 4 feet or less for optimal tension
- Verify cable diameter meets or exceeds local code minimums
- Select marine-grade 316 stainless components for exterior use
- Budget for proper tensioning and cutting tools
- Plan for at least one re-tensioning visit 4-6 weeks after installation
- Check that all fittings are compatible with your post material
When in doubt, purchase a complete kit that includes matched components rather than piecing together hardware from multiple sources. The Senmit Stainless Steel Turnbuckle Deck Toggle Set or Lag Screw & Swage Tension Turnbuckle kits provide reliable starting points for wood post installations.
Common Myths About Cable Railing Installation
Several widespread misconceptions lead DIYers into trouble. One myth claims any stainless steel works equally well. In reality, Type 304 stainless may pit in coastal or high-moisture environments while marine-grade 316 with added molybdenum resists corrosion far better.
Another common belief is that you tension cables once and forget them. Cable systems settle, wood moves, and temperature changes affect tension. Planning for periodic adjustment prevents future headaches.
Many assume standard tools from the hardware store suffice. Without proper cable cutters and crimpers, you risk damaging strands or creating weak connections. Specialized tools are an essential part of achieving professional results.
Finally, some think that if cables look tight they will pass inspection. Codes focus on measurable spacing and structural performance rather than visual tightness. Always verify compliance with current standards before final installation.
Visualizing the Impact of Common Mistakes
Common Impact Ranking for DIY Cable Railing Mistakes
Common impact ranking based on typical DIY reports (illustrative, not official statistics).
View chart data
| Category | Severity / frequency score |
|---|---|
| Wrong tensioning / post spacing | 5.0 |
| Code errors | 4.0 |
| Wrong tools / hardware | 3.0 |
| Misaligned posts / fittings | 3.0 |
| Material incompatibility / corrosion | 2.0 |
Illustrative bounded ranking synthesized from the provided myth module and internal guidance on sag, code compliance, tools, and pickets. Scores reflect relative impact in typical DIY reports, not measured incident rates or official statistics.
This illustrative ranking shows how tensioning and spacing issues tend to create the most immediate visible and functional problems, followed closely by code violations that stop projects at inspection. Using the right tools and alignment techniques dramatically reduces these risks.
Final Checklist Before You Start Your Project
Successful DIY cable railing comes down to preparation and using the proper system components. Measure twice, cut once, and verify every post is plumb and securely anchored. Choose marine-grade stainless steel for longevity and invest in quality tensioning tools that make the job easier and more precise.
Consider purchasing a complete fascia mount cable railing kit if you want matched components in one package. Browse the full selection of cable railing hardware and tools to find exactly what your deck needs.
With careful planning and avoidance of these five common mistakes, your DIY cable railing can deliver years of maintenance-free performance while passing inspection on the first try. The modern look and unobstructed views will be worth the effort when you get the details right from the start.
Important Safety and Comfort Note: This article discusses setup and installation practices for cable railing systems. It does not constitute structural engineering advice, building code certification, or professional installation guidance. Cable railing involves load-bearing elements that must comply with local regulations. Improper installation may create safety hazards. Always consult local building officials and a qualified professional if you have any doubts about structural integrity, especially for elevated decks or if anyone in your household has mobility concerns. If issues arise during or after installation, seek advice from licensed contractors or inspectors.
For more details on preventing sag and maintaining tension, read our guide on solving long spans with intermediate pickets.
