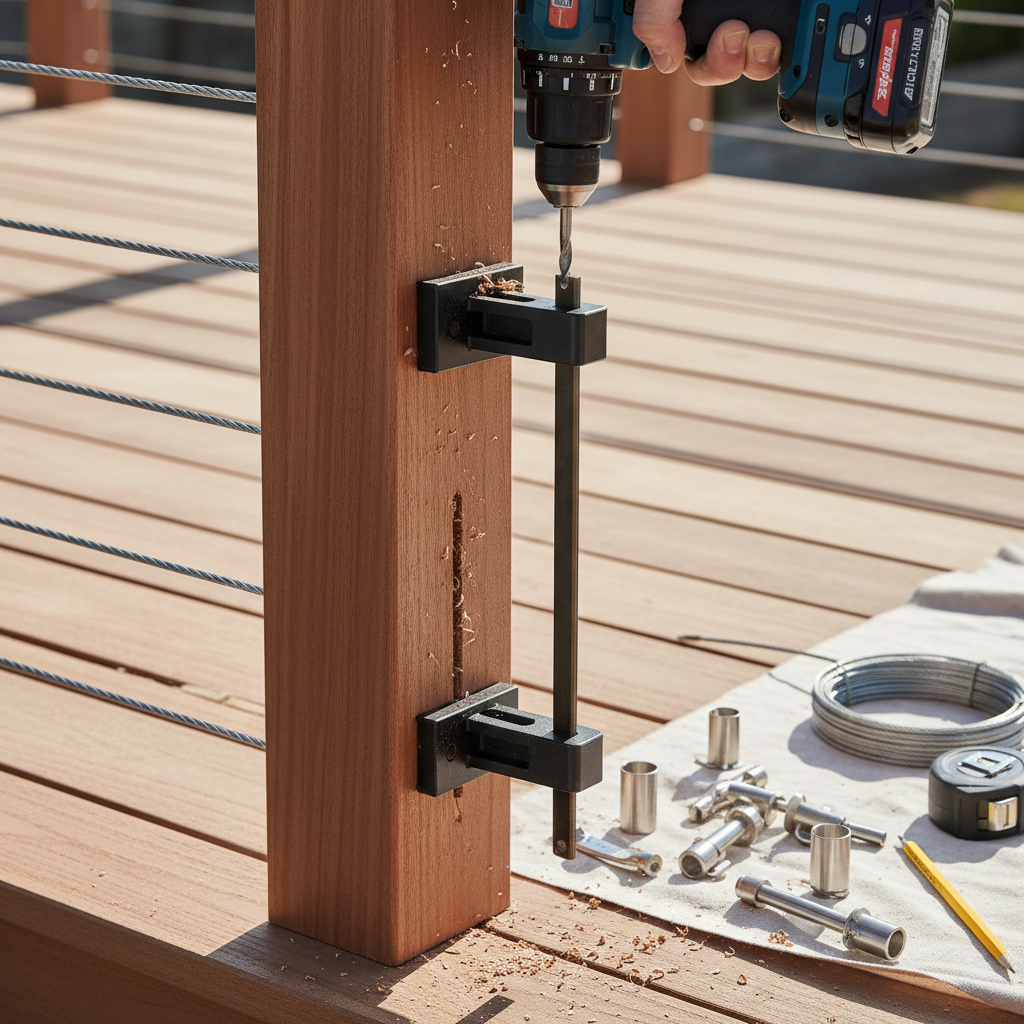

Drilling clean, straight holes through dense hardwood posts like Ipe or through composite sleeves is one of the most critical steps in a successful cable railing installation. Get the bit choice, speed, clamping, and alignment right on the first pass, and your cables will run level and taut with a professional appearance. Skip the right setup, and you risk burned wood, tear-out, wandering holes that misalign the entire run, or hardware that won't seat properly. This guide gives DIY installers the exact tools, techniques, and decision rules needed in 2026 to achieve precise results without rework.
Why Material Choice Changes Your Drilling Approach
Hardwood posts such as Ipe, mahogany, or similar dense species and composite sleeves behave differently under a drill bit. Hardwoods are prone to heat buildup and splintering on the exit side, while composite materials can melt, gum up bits, or show visible surface defects if dwell time is too long. The practical threshold for clean cable-railing holes is not a single universal rule but depends on how heat-sensitive and wander-prone the post is.
For hardwood, slower feed rates combined with peck drilling are usually sufficient when the bit is sharp and the workpiece clamped. Composite posts often punish prolonged contact more aggressively, making frequent chip clearing and minimal dwell time the priority. As this university woodshop safety manual explains, bits can run very hot during repeated drilling, so giving them time to cool and avoiding forcing the cut prevents scorch marks and bit damage.
The chart below compares heuristic setups modeled from shop manuals and manufacturer guidelines for dense hardwood versus composite sleeves. These values help reduce heat, wear, and tear-out.
Drill Setup Comparison: Ipe Hardwood vs Composite Sleeves
Heuristic drilling setup to reduce heat, wear, and tear-out when drilling cable railing posts.
View chart data
| Category | Ipe Hardwood | Composite Sleeves |
|---|---|---|
| Drill bit type | 2 | 1 |
| Recommended RPM (lower is safer) | 1800 | 2500 |
| Peck depth (in.) | 0.25 | 0.5 |
Modeled comparison derived from shop-manual and manufacturer heuristics for dense hardwood and composite sleeve drilling. Relative coding: 1=high-speed steel, 2=cobalt/brad-point specialty; RPM uses conservative ranges for heat control; peck depth reflects a practical shop interval (about 1/4 in. for dense hardwood, about 1/2 in. for composite sleeves).
This modeled comparison uses relative values (1 = high-speed steel or standard twist, 2 = cobalt or brad-point specialty bits) and conservative RPM ranges drawn from woodworking safety resources and practical railing install experience. Actual performance depends on bit sharpness, post thickness, and your specific cable railing hardware.
Essential Tools and Drill Bits for Hardwood and Composite
Start with the right equipment to avoid burning out bits or creating oversized, ragged holes that ruin cable alignment. For dense hardwoods like Ipe, cobalt or carbide-tipped brad-point bits in the size specified by your hardware (commonly 1/4 inch or 5/16 inch for 1/8-inch cable systems) perform best. These bits stay sharper longer and resist heat better than basic high-speed steel.
Composite sleeves call for bits designed for plastics or composites—often standard twist bits with a sharper point or specialized non-melting designs. Always follow the hole diameter listed in your cable railing system instructions rather than assuming a universal size, as this manufacturer installation table demonstrates how sizing varies by product line.
A variable-speed drill with good torque at low RPM is essential. Add a drilling guide or alignment jig, clamps, a sacrificial backer board, and a brush or compressed air for chip clearing. Our complete tool guide for DIY cable railing installation walks through the full checklist, including recommendations for Senmit's hydraulic cable crimper and cutter kits that pair well with precise drilling.
For wood posts, consider our wood post railing system collection which includes compatible hardware that matches common drill sizes. When working with composite sleeves over wood, the how to combine wood and cable railing systems guide provides material-specific advice that complements this drilling focus.
Drilling Technique for Dense Hardwood Posts
Dense species like Ipe generate significant friction and heat. The key is controlled, staged drilling rather than one continuous plunge. As outlined in this university machine shop handbook, for dense hardwoods you should drill in stages and clear chips often to reduce heat buildup, binding, and tear-out.
Clamp the post securely to a workbench or use auxiliary supports so the bit cannot wander or spin the workpiece. This shop proficiency guide stresses that clamping prevents bit catch, spin-out, and crooked holes. Set your drill to forward mode only—reverse can scorch the wood and damage the hole finish, according to woodshop safety standards.
Use a brad-point or cobalt bit at approximately 1,500–2,000 RPM for Ipe. Peck every ¼ inch: drill a short distance, withdraw fully to clear chips and let the bit cool, then repeat. When the hole is nearly through, finish from the opposite side with a sacrificial backer board to minimize blowout on the visible exit face. This approach, supported by laboratory fundamentals guides, helps preserve the clean cosmetic appearance required for modern cable railing.
Special Considerations When Drilling Composite Sleeves
Composite post sleeves are less forgiving of heat than solid wood. The material can melt around the bit if you dwell too long, creating a rough or oversized hole that affects cable hardware fit. Keep RPM slightly higher (around 2,000–2,800) but feed very lightly and clear chips even more frequently—every ½ inch or less.
Forward-only drilling remains critical. Use a sharp bit and consider a lubricant or wax specifically rated for composites if recommended by the sleeve manufacturer. Alignment is equally important because composite surfaces show defects more obviously than rough-sawn wood. A jig becomes nearly mandatory for multiple posts so that cable runs stay perfectly level and parallel.
Our ultimate guide to drilling stainless steel offers related speed and cooling insights that translate well when your hardware also involves drilling into metal components later in the project.
Using Cable Railing Alignment Jigs and Templates
Consistent hole placement across multiple posts is what separates amateur from professional-looking installs. Alignment jigs or drill guides that lock onto the post at standard angles (horizontal, 30°, 45°) eliminate guesswork and prevent cumulative drift that ruins cable tension and aesthetics.
A good jig clamps firmly, provides a straight bushing for the bit, and often includes depth stops. Market examples include adjustable models offering 30/45/90-degree presets. Some cable systems also provide lower-clip templates or printed layouts to standardize spacing. As noted in various manufacturer instructions, these guides reduce layout errors and ensure holes match the exact requirements of your tensioners and swages.
For Senmit hardware users, combining a commercial jig with our lag screw swage turnbuckle kits or swage lag screws delivers reliable results. Check our cable railing hardware collection for matching components.
Step-by-Step Drilling Process for Cable Railing Posts
-
Layout and Marking: Measure and mark hole centers on every post using a level string line or laser. Double-check spacing matches your chosen cable railing hardware requirements.
-
Secure the Workpiece: Clamp the post firmly. For composite sleeves, ensure they are fully seated and supported internally.
-
Install the Jig: Attach your alignment jig or guide at the precise height and angle. Verify with a level or square.
-
Drill in Stages: Use the recommended bit, speed, and peck depth from the chart above. Withdraw completely between pecks to clear chips and cool the bit. Drill from both sides when possible to reduce exit-side tear-out.
-
Clean and Inspect: Remove all debris. Test-fit a sample cable or hardware pin to confirm the hole is straight, clean, and the correct diameter.
-
Repeat Consistently: Use the same jig setup for every post in the run. Minor variations multiply across long sections.
Refer to our full how to install cable railing Senmit guide for the complete sequence after drilling, including tensioning with Senmit stainless steel hand-crimp stemball swages.
Common Mistakes That Lead to Rework
Many DIYers underestimate setup time and pay for it in visible defects. The most frequent issues include drilling without firm clamping, which lets the bit wander; using reverse mode or staying in the hole too long, causing burn marks; skipping a jig on visible runs, leading to misaligned cables; and ignoring system-specific hole sizing, resulting in hardware that binds or looks sloppy.
A single crooked hole often forces the entire run to be redrilled. The reverse recommendation is clear: invest in a jig and proper clamping when holes must line up across several posts or when the surface is hard to correct afterward. Only skip guided drilling in truly hidden, low-stakes locations where slight error will not affect cable path or appearance.
Decision Checklist Before You Drill
- Confirm your exact hole diameter from the cable railing system instructions.
- Match bit type and RPM to material (hardwood vs composite) using the chart above.
- Secure every post with clamps and a sacrificial backer.
- Use a jig or guide for any run longer than one or two posts.
- Drill forward only, peck frequently, and clear chips each time.
- Inspect every hole for straightness and cleanliness before installing hardware.
- Have replacement bits on hand—dense materials dull them quickly.
Following this checklist dramatically reduces the chance of damaged posts, frayed cable paths, or an uneven final look that requires expensive rework.
Final Thoughts on Professional Results
Successful cable railing depends heavily on accurate, clean drilling through hardwood or composite posts. By selecting the right bits, controlling heat through peck drilling and chip clearing, using alignment jigs for consistency, and following material-specific techniques, most DIYers can achieve results that rival professional installations. The upfront time spent on proper setup pays off in a straight, taut, modern railing that enhances your deck for years.
Remember that while these methods can make the job easier to tolerate and reduce perceived installation stress, exact outcomes still depend on your room conditions, post quality, chosen hardware, and personal technique. For persistent questions about your specific setup or if you encounter unexpected material behavior, consult the detailed instructions provided with your cable railing kit or reach out to a qualified professional.
This article discusses comfort and setup advice for DIY cable railing projects. It does not constitute professional contracting advice. If you have concerns about structural integrity or code compliance, consult qualified professionals.
