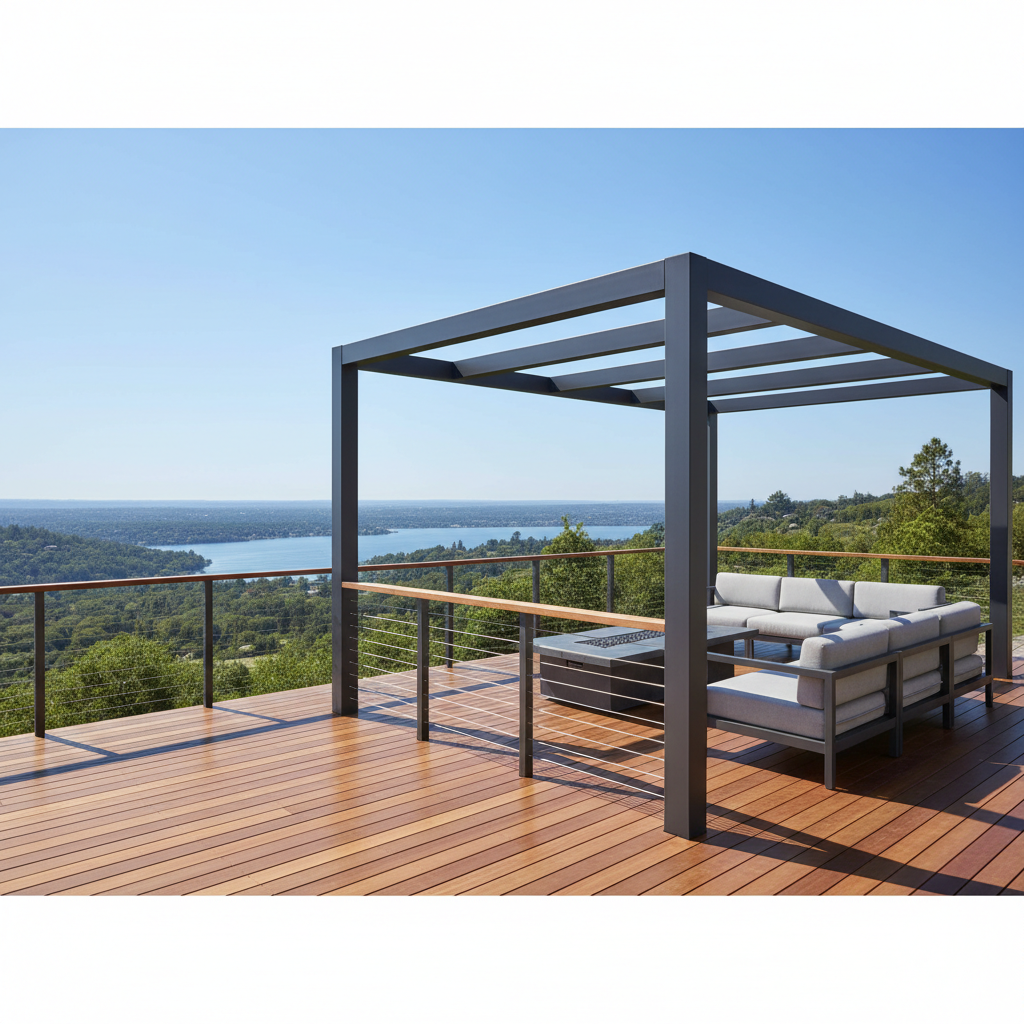

Yes, you can attach cable railing to modular pergola posts in many 2026 residential builds, but only when the posts and entire frame are engineered or reinforced to handle both vertical shade loads and the significant lateral forces from tensioned cables and guard requirements. Standard modular pergola kits are typically optimized for overhead weight and wind uplift rather than the 200 lb concentrated load that most residential codes demand at the top of a guardrail. Treating a lightly anchored post as a railing support without proper base connectors, bracing, or footing upgrades risks deflection, cable sag, loosening over time, or failed inspections.
This guide translates the key structural, hardware, and design decisions into practical steps so you can decide whether your modular pergola can safely double as the structural frame for cable railing or whether a dedicated railing system is the smarter path. The information draws from official deck-construction guidance and common engineering principles for load transfer.
Can Pergola Posts Serve as Structural Attachment Points for Cable Railing?
Many homeowners ask whether the vertical posts of a modular aluminum or steel pergola can also support cable railing. The short answer depends on the post's section properties, anchorage, and the load path back to the foundation. Pergola posts are usually sized for compression and minor lateral wind loads on the roof or shade elements. Cable railing, however, introduces continuous horizontal tension (often 200–400 lbs per run depending on spacing and tensioning) plus the code-mandated 200 lb concentrated load applied anywhere along the top rail.
As this Typical Deck Requirements document states, guardrails on residential decks must generally resist a 200 lb concentrated load at the top rail. When a pergola post is asked to serve as a railing post, that load must transfer through the post-to-deck connection and into the framing or footing without excessive deflection. Many modular pergola kits use surface-mount bases or light post anchors that are not automatically rated for this combined loading.
In practice, larger 4×4-inch or 6×6-inch aluminum posts with thick walls and robust base plates have a better chance of working when supplemented with additional bracing or moment-resisting connectors. Hollow thin-wall posts or those relying only on lag screws into deck joists are rarely suitable without major reinforcement. Always verify with the manufacturer whether the specific post model carries a published lateral-load rating for guard use.
How to Determine If Your Pergola Frame Can Handle Lateral Railing Loads
Before drilling any holes, evaluate the entire load path. Start at the top rail and work downward: the cable tension and 200 lb point load create both bending moment at the post and shear at the base. The pergola beams and footings must also resist these forces.
Official guidance such as the Residential Decks & Porches Supplement emphasizes that guards must attach to a structure designed for both vertical and lateral loads. This means checking:
- Post size and wall thickness (minimum 0.125-inch wall for aluminum is a common heuristic for moderate spans)
- Base anchorage (surface-mount plates should use at least four ½-inch structural screws or bolts into blocking or concrete with proper embedment)
- Footing depth and reinforcement (local frost-line and soil conditions matter)
- Beam-to-post connections (moment-resisting brackets or gussets reduce wobble)
If your modular pergola was installed with only decorative or light-duty hardware, adding cable railing will likely require retrofitting stronger post bases, adding diagonal knee braces, or even pouring new footings. In high-wind or seismic zones these upgrades become even more critical.
The chart below provides a quick visual screening tool based on common residential thresholds. It compares a standard modular pergola post (vertical-load focused) against a reinforced version using heuristic indicators derived from the 200 lb load benchmark and typical 36–42 inch guard height. These values are planning guidance only, not measured test data or code certification.
Pergola Post Suitability for Cable Railing Loads
Visual decision aid for whether a modular pergola post is likely to support cable railing loads.
View chart data
| Category | 200 lb concentrated load capacity | Indicative max cable span | 36-42 in height tolerance | Reinforcement need (lower is better) |
|---|---|---|---|---|
| Standard pergola post | 140.0 | 2.0 | 1.0 | 5.0 |
| Reinforced for railing | 220.0 | 6.0 | 4.0 | 2.0 |
Sourced thresholds: residential guard/railing systems commonly need to resist a 200 lb concentrated load and are often referenced at 36 in minimum guard height. The two post types are heuristic planning categories: Standard pergola post assumes vertical-load-first framing; Reinforced for railing assumes positive anchorage, stronger connectors, and added lateral restraint. Span and tolerance values are illustrative engineering ratios for visual comparison, not measured performance.
Hardware, Post Reinforcement, and Mounting Details That Matter in 2026
Successful integration hinges on purpose-designed hardware. Use marine-grade 316 stainless steel cables and fittings for corrosion resistance, especially in coastal or high-humidity areas. Tensioners should allow precise adjustment without over-stressing the post. For attachment, through-bolted or welded brackets that create a rigid moment connection perform far better than simple lag screws.
If your modular pergola uses aluminum posts, consider adding internal reinforcement sleeves or external gusset plates at the railing attachment height. Base connections are equally important: the Deck Construction Guide from Anne Arundel County notes that posts bearing on footings often require lateral restraint through manufactured connectors or proper embedment. Upgrading to larger anchor bolts or adding concrete piers can make the difference between a stable system and one that develops noticeable wobble after a season.
For fascia or edge-of-deck connections, fascia mount stainless steel posts or surface mount cable railing posts from Senmit can be coordinated with the pergola layout to maintain clean sightlines while meeting load requirements. When combining systems, plan the pergola and railing layout together so posts align perfectly and avoid visual clutter.
Our Modern Outdoor Living: Integrating Railing, LED, & Pergolas article explores how to unify these elements with LED lighting for a cohesive 2026 look. The Modular Metal Pergolas: The 2026 Guide to Modern Backyard Shade provides additional detail on selecting kits that support heavier integrated loads.
Connecting Railing to the Pergola Deck Edge or Adjacent Platform
Clean integration at the deck edge often requires a hybrid approach. One common method is to run the cable railing between pergola posts where they land on the deck perimeter, using the pergola post as the end or intermediate support. Another option is to mount a separate fascia-mounted railing system that visually aligns with the pergola columns.
Whichever route you choose, maintain a continuous load path. Avoid attaching railing only to the top beam of the pergola; instead, anchor at both top and bottom of the post or use intermediate brackets. This distributes forces and reduces the risk of twisting. For platforms or rooftop terraces, ensure the underlying structure was designed with the combined dead, live, and guard loads in mind.
Avoiding Common Problems: Wobble, Sag, Deflection, and Loosening
Cable systems are only as good as their tension and post stiffness. Over-tensioning a marginal post can cause visible bowing or fatigue at the connections. Under-tensioning leads to sag that violates the 4-inch sphere rule in most codes. The solution is staged tensioning: bring cables to approximately 150–200 lbs initially, allow the structure to settle, then fine-tune while checking for deflection with a straight edge or laser.
Use anti-vibration hardware and lock washers at all bolted connections. In freeze-thaw climates, annual re-tensioning may be needed as materials expand and contract. Selecting complete cable railing kits with matched tensioners and terminals from the start reduces long-term maintenance headaches.
Balancing Aesthetics, Sightlines, Privacy, and Code Compliance
One of the strongest appeals of cable railing is the unobstructed view it preserves under a pergola. Matte black or brushed stainless posts coordinate beautifully with modern aluminum pergola finishes. Keep cable spacing at 3 inches or less to satisfy the 4-inch sphere safety rule while maintaining openness.
Privacy can be added selectively with integrated screens or strategic planting rather than solid railing panels that would clash with the pergola's light architectural feel. Our 2026 Blueprint for Smart Outdoor Living Spaces shows how to combine these elements with app-controlled LED lighting for both function and drama.
Code compliance remains the non-negotiable boundary. A Wisconsin administrative code example illustrates the broader principle that structural posts must deliver the required resistance to the rail. In 2026 most jurisdictions still reference IRC or equivalent standards requiring a 36-inch minimum guard height in many residential settings, though local amendments vary. Always pull a permit and have plans reviewed before finalizing an integrated design. Non-compliance can void warranties and create liability.
Practical Checklist: How to Choose and Execute a Safe Integrated Build
Use this checklist before you buy or begin construction:
- Confirm local code requirements for guard height, load resistance, and sphere rule.
- Verify that your modular pergola posts have adequate section modulus and base anchorage for combined loads; request engineering data from the manufacturer.
- Choose posts at least 4×4 inches with thick walls or plan reinforcement sleeves and gussets.
- Select marine-grade 316 stainless cable railing hardware and tensioners rated for outdoor use.
- Design the footing and beam connections to transfer lateral forces; add diagonal bracing if needed.
- Align railing and pergola post locations on the same layout grid for clean aesthetics.
- Tension cables in stages and re-check after 30–60 days of seasonal weather exposure.
- Schedule a final inspection to confirm compliance before enjoying the space.
When You Should Not Use Pergola Posts for Cable Railing
There are clear situations where integration is not worth the risk or cost. Do not attempt to attach cable railing to modular pergola posts if the posts are light-gauge aluminum, thin-wall, or only fastened for overhead shade rather than guard-level side loads. The same caution applies if the pergola is already built without dedicated lateral anchorage, if the location is high-wind or a primary guard zone, or if adding reinforcement would require new footings and significant structural changes.
In these cases, the cleanest solution is often a dedicated stainless steel surface mount cable railing post system installed alongside or independent of the pergola. This preserves the pergola's original engineering while still achieving the modern open look. Our Cable Railing for Wood Posts: Hardware & Installation Guide offers parallel insights that transfer well to metal post planning.
Final Decision Framework for 2026 Outdoor Projects
Integrated cable railing and modular pergola systems can create stunning, low-maintenance outdoor rooms when planned from the beginning with structural integrity in mind. The key is treating the pergola posts as true structural members rather than afterthought attachment points. By selecting appropriately sized kits, upgrading hardware and anchorage where needed, and verifying everything against local code, you can achieve both safety and the clean aesthetic that defines contemporary deck design.
If your project involves an existing pergola or you are unsure about load paths, consult a structural engineer or local building official early. The small upfront investment in proper engineering or reinforcement pays for itself in peace of mind, code approval, and decades of reliable performance.
This article discusses comfort, setup, and structural guidance for residential outdoor living only. It does not constitute engineering, architectural, or legal advice. Local codes vary and may have changed in 2026; always verify with your jurisdiction. For persistent structural concerns or existing conditions, consult qualified professionals.
