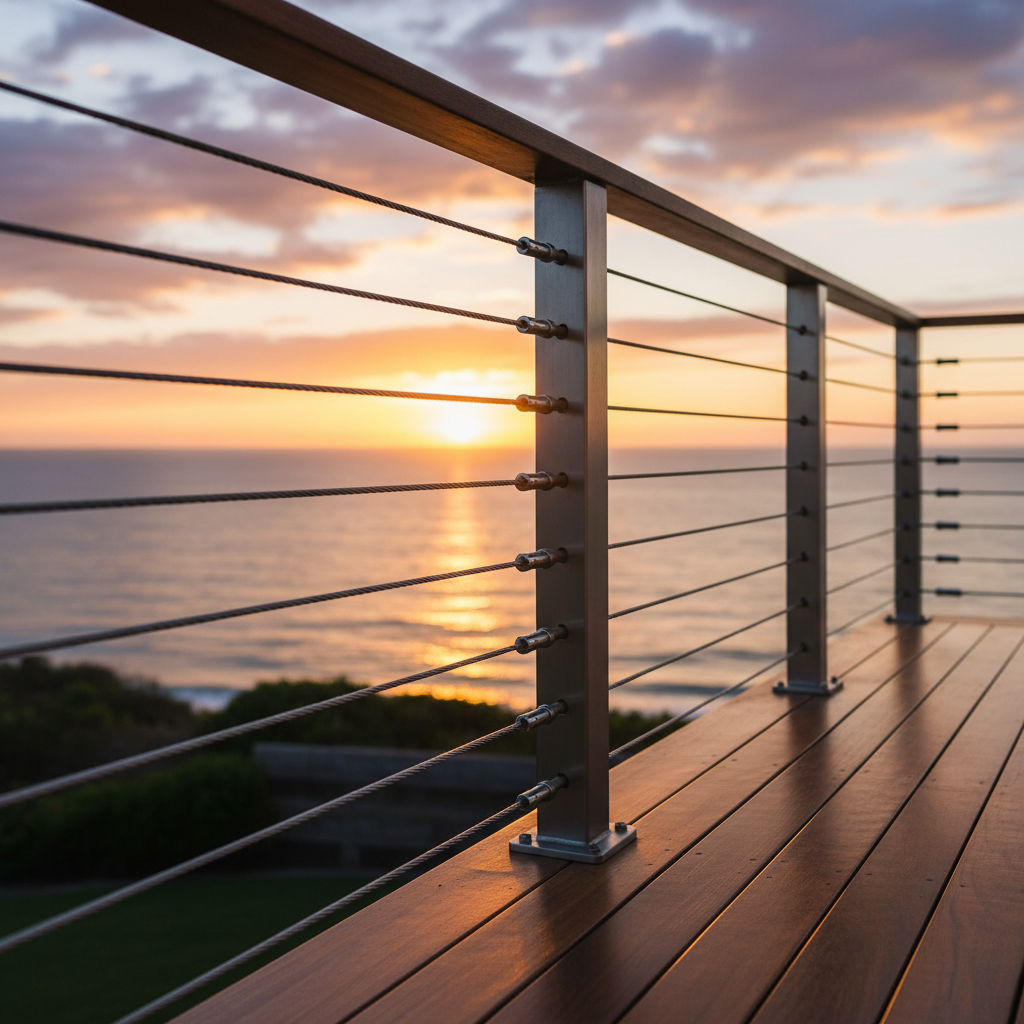

Modern coastal deck with marine-grade stainless steel cable railing during golden hour, showcasing material durability and transparency.

Marine-Grade Stainless Steel Standards for Residential Cable Railing: A Technical Whitepaper

March 10, 2026

Executive Summary

The integration of stainless steel cable railing systems in residential architecture represents a convergence of structural necessity and aesthetic transparency. As of 2026, the industry has shifted toward a more rigorous, data-driven approach to material selection, moving beyond the generic label of "marine-grade" to specific metallurgical standards defined by ASTM and ISO. This whitepaper provides a comprehensive technical analysis of the standards governing residential cable railing, specifically focusing on the performance of Type 304 and Type 316 stainless steel in varying environmental corrosivity categories.

Key findings indicate that while Type 304 remains a viable solution for inland applications (ISO C1-C2), the presence of Molybdenum in Type 316 is the non-negotiable differentiator for coastal durability (ISO C4-CX). Furthermore, structural compliance with the International Residential Code (IRC) hinges not only on static opening sizes but on the dynamic relationship between cable tension and post-rigidity. This document serves as a canonical reference for homeowners, contractors, and architects to validate material integrity and ensure long-term safety compliance in residential railing projects.

Scope & Definitions

To ensure technical clarity, the following definitions and standards are utilized throughout this whitepaper:

T304 Stainless Steel (UNS S30400): An austenitic chromium-nickel alloy, commonly referred to as 18/8 steel, providing excellent corrosion resistance in mild environments.
T316 Stainless Steel (UNS S31600): An austenitic chromium-nickel-molybdenum alloy. The addition of 2-3% Molybdenum significantly enhances resistance to chloride-induced pitting.
Marine-Grade: A commercial designation typically referring to T316 stainless steel, though technically not a specific ASTM certification.
PREN (Pitting Resistance Equivalent Number): A theoretical value used to compare the pitting corrosion resistance of various stainless steel grades based on their chemical composition.
IRC (International Residential Code): The governing building code for one- and two-family dwellings, specifically Section R312 for guards.
ASTM A240/A240M: The standard specification for chromium and chromium-nickel stainless steel plate, sheet, and strip for pressure vessels and general applications.
ASTM A313/A313M: The standard specification for stainless steel spring wire, which governs the mechanical properties of the individual wires used in cable rope.

Key Findings

Molybdenum Criticality: The 2.0% to 3.0% Molybdenum content in T316 stainless steel is the primary factor in preventing "tea staining" and structural pitting in environments with high chloride concentrations (salt spray).
PREN Thresholds: Type 316 typically exhibits a PREN value between 23 and 28, whereas Type 304 ranges from 18 to 20. A PREN > 24 is generally considered the minimum requirement for coastal exposure.
The 4-Inch Sphere Rule: Per IRC R312.1.3, guard openings must not allow the passage of a 4-inch diameter sphere. In cable railing, this requires a combination of ≤ 3-inch vertical spacing and a minimum of 200 lbs of tension per cable to account for deflection.
Galvanic Risks: Mixing stainless steel cables with aluminum posts in coastal zones creates a high risk of galvanic corrosion unless dielectric isolation (e.g., nylon sleeves) is employed.
Passivation Necessity: Post-fabrication passivation per ASTM A967 is critical to restoring the passive oxide layer and removing surface iron contaminants that lead to premature corrosion.

Modern coastal deck with marine-grade stainless steel cable railing

Material Science: Decoding T316 vs. T304

The performance of stainless steel in residential railing is dictated by its microscopic chemical composition. Both T304 and T316 are members of the austenitic family, characterized by their face-centered cubic (FCC) crystal structure, which provides excellent formability and toughness. However, the subtle differences in alloying elements lead to vastly different lifecycle outcomes.

Chromium and Nickel Content

Chromium is the fundamental element that makes steel "stainless." Upon exposure to oxygen, chromium forms a thin, transparent, and self-healing layer of chromium oxide (Cr2O3) on the surface. ASTM A240 mandates a minimum of 18% Chromium for T304 and 16% for T316. While T316 has slightly less Chromium, it compensates with higher Nickel content (10-14% vs. 8-10.5% in T304), which stabilizes the austenitic structure and improves ductility.

The Role of Molybdenum

The presence of Molybdenum (Mo) in T316 is the defining characteristic for "marine-grade" performance. Molybdenum acts as a catalyst in the formation of the passive layer, making it more robust against the aggressive attack of chloride ions. In coastal regions, salt (NaCl) dissociates into sodium and chloride ions. Chloride ions are particularly destructive because they can penetrate the passive layer at localized points, leading to pitting corrosion—a form of extremely localized attack that can cause structural failure without significant overall metal loss.

Logic Summary: While T304 is often marketed as "rust-resistant," its lack of Molybdenum makes it susceptible to chloride-induced pitting. For any project within 5 miles of a saltwater body, the metallurgical advantage of T316 is required to prevent aesthetic and structural degradation.

For a detailed comparison of these grades in a residential context, refer to our guide to 304 vs. 316 stainless steel for cable railing.

Corrosion Resistance & Environmental Suitability: Understanding the PREN

To quantify the corrosion resistance of different alloys, engineers use the Pitting Resistance Equivalent Number (PREN). The formula most commonly used for austenitic stainless steels is:

PREN = %Cr + 3.3 * %Mo + 16 * %N

For standard T304 and T316, Nitrogen (N) content is often negligible unless specified (as in "316LN"), so the formula simplifies to the Chromium and Molybdenum contributions.

ISO 9223 Corrosivity Categories

Selecting the right material requires an assessment of the installation site's environmental corrosivity, as defined by ISO 9223. This standard classifies environments into six categories:

C1 (Very Low): Heated buildings with clean atmospheres (e.g., desert interiors).
C2 (Low): Unheated buildings, rural areas with low pollution.
C3 (Medium): Urban and industrial atmospheres, moderate sulfur dioxide pollution, or low-salinity coastal areas.
C4 (High): Industrial areas and coastal areas with moderate salinity.
C5 (Very High): Coastal and offshore areas with high salinity.
CX (Extreme): Extreme offshore and industrial environments.

In C1 through C3 environments, T304 stainless steel typically provides a satisfactory lifecycle. However, once a project enters C4 or higher—typical of most coastal residential decks—T316 becomes the baseline standard. In CX environments (e.g., beachfront properties with direct salt spray), even T316 may require monthly rinsing or specialized coatings to maintain its appearance.

Structural Safety & Code Compliance: Tensioning and the 4-Inch Sphere Rule

The International Residential Code (IRC) and International Building Code (IBC) provide the legal framework for railing safety. For residential applications, the primary concern is the "4-inch sphere rule" (IRC R312.1.3), which states that guards shall not have openings that allow passage of a sphere 4 inches in diameter.

The Deflection Challenge

Unlike rigid balusters, stainless steel cables are flexible. A system that measures 3 inches between cables at rest can easily deflect to 5 inches or more under load if not properly tensioned. To remain compliant, the system must be designed such that the deflected opening does not exceed 4 inches.

Building officials often use a "sphere test" with a weighted device to check for compliance. To pass this test, the industry standard for cable railing building codes and considerations typically involves:

Vertical Spacing: Cables spaced no more than 3 inches apart center-to-center.
Post Spacing: Structural posts or intermediate balusters spaced no more than 42 to 48 inches apart to limit the span of the cable.
Tension: Each cable tensioned to approximately 200 to 300 lbs.

ASTM Standards for Components

It is a common misconception that all "316" components are created equal. High-quality systems utilize components governed by specific ASTM standards:

Cables: Should meet ASTM A313 for wire quality and mechanical properties. A 1x19 construction is preferred for railing due to its rigidity and smooth surface, which minimizes salt trap areas.
Fittings: Swage terminals and turnbuckles should be machined from bar stock meeting ASTM A276.
Posts: Tubular sections should meet ASTM A554 or A240.

Technical diagram showing the 4-inch sphere rule and cable deflection

Lifecycle Cost Analysis: Initial Investment vs. Long-Term Maintenance

A common hurdle for homeowners is the higher initial cost of T316 stainless steel compared to T304 or aluminum. However, a lifecycle cost analysis (LCCA) reveals that T316 is often the more economical choice in coastal environments.

Maintenance Requirements

Stainless steel is "low maintenance," not "no maintenance." In a C4 environment, T304 may require cleaning every 2-4 weeks to prevent permanent pitting. T316, by contrast, may only require a fresh water rinse every 3-6 months. The labor costs and chemical cleaners required to maintain T304 in a high-salt environment quickly exceed the initial price premium of T316.

Expected Lifespan

When properly maintained, T316 cable railing systems can last 25-50 years, even in coastal zones. T304 in the same environment may show significant "tea staining" (surface oxidation) within the first year and structural pitting within 5-10 years. For more on this, see our complete guide on how long cable railings last.

Logic Summary: LCCA assumes a 30-year horizon. If the property is intended for long-term ownership or as a rental with high aesthetic standards, T316 is the lower-risk investment.

Regional Selection Framework: Decision Matrix for Material Selection

To assist in material specification, we have developed a decision matrix based on distance from the coast and environmental factors.

Distance from Saltwater	Environment Type	Recommended Grade	Maintenance Level
> 10 Miles	Inland / Rural	T304	Low (Annual)
1 - 10 Miles	Urban / Suburban	T304 or T316	Moderate (Bi-annual)
0.5 - 1 Mile	Coastal (C4)	T316	Moderate (Quarterly)
< 0.5 Mile	Beachfront (C5/CX)	T316 (Passivated)	High (Monthly Rinse)

Note: Areas with high industrial pollution or proximity to chlorinated pools should be treated as C4/C5 environments regardless of distance from the ocean.

Advanced Considerations: Passivation and Galvanic Compatibility

The Importance of Passivation (ASTM A967)

During the manufacturing and installation of cable railing, the stainless steel surface can be contaminated with "tramp iron" from cutting tools or nearby construction. These iron particles will rust, even if the underlying stainless steel is T316. Passivation is a chemical process—typically using nitric or citric acid—that removes these contaminants and accelerates the formation of the protective chromium oxide layer. Specifying T316 marine grade stainless steel hardware that has been factory-passivated is a critical step for coastal success.

Galvanic Corrosion in Mixed-Metal Systems

A frequent SERP gap in railing literature is the risk of galvanic corrosion when mixing metals. In the presence of an electrolyte (saltwater/moisture), two dissimilar metals in contact will create a battery-like reaction. The more "noble" metal (stainless steel) will cause the less noble metal (aluminum) to corrode at an accelerated rate.

If using aluminum posts with T316 marine grade cable, it is imperative to use non-conductive isolation. Nylon or plastic grommets at every cable entry point prevent the metals from touching, effectively breaking the galvanic circuit.

Evidence-backed guidance

Based on current engineering standards and building codes, the following guidance is recommended for residential cable railing projects in 2026:

Specify T316 for all exterior applications unless the project is located in a strictly rural, low-humidity inland zone. The marginal cost increase is offset by the reduction in maintenance and risk of aesthetic failure.
Enforce the 3-inch rule. While the code allows for a 4-inch sphere, the flexibility of the cable means that a 3-inch physical gap is necessary to pass a 4-inch deflection test.
Verify Tension. Use a tension meter to ensure all cables are between 200 and 300 lbs. Over-tensioning can warp posts, while under-tensioning leads to code violations.
Use 1x19 Cable Construction. For railing, 1x19 is superior to 7x7 or 7x19 because it is stiffer and has fewer crevices for salt and dirt to accumulate.

Data snapshots

The following table summarizes the technical specifications for the two most common stainless steel grades used in residential railing.

Feature	Type 304 (UNS S30400)	Type 316 (UNS S31600)	Source(s)
Chromium (Cr)	18.0 - 20.0%	16.0 - 18.0%	ASTM A240
Nickel (Ni)	8.0 - 10.5%	10.0 - 14.0%	ASTM A240
Molybdenum (Mo)	N/A	2.0 - 3.0%	ASTM A240
PREN (Typical)	18 - 20	23 - 28	Specialty Steel Industry of NA
Coastal Suitability	Low (Not Recommended)	High (Standard)	Nickel Institute
Tensile Strength	75 ksi (min)	75 ksi (min)	ASTM A240

Limitations & Open Questions

While T316 is the industry standard for marine environments, it is not invincible. In "Extreme" (CX) environments, such as properties located directly on the surf line with constant salt spray, T316 will still exhibit surface oxidation if not rinsed regularly.

Current research into "Super Duplex" stainless steels (e.g., 2507) suggests even higher corrosion resistance (PREN > 40), but these materials remain cost-prohibitive for most residential applications. Furthermore, the long-term impact of micro-plastic accumulation in marine-grade coatings is an emerging area of study that may influence future material standards.

FAQ

Why is Molybdenum the critical differentiator for coastal cable railing durability? Molybdenum significantly increases the resistance of the chromium oxide passive layer to chloride ions found in salt spray. Without Molybdenum, the passive layer in T304 stainless steel can be penetrated, leading to localized pitting corrosion that compromises both the look and structural integrity of the railing.

How does the '4-inch sphere rule' impact cable tensioning and post spacing requirements? The rule mandates that no opening in a guardrail allow a 4-inch sphere to pass through. Because cables are flexible, they will deflect when a force is applied. To prevent this deflection from exceeding the 4-inch limit, cables must be tensioned to 200-300 lbs and supported by posts or intermediate balusters every 42-48 inches.

What are the specific ASTM standards for residential cable railing components? The primary standards include ASTM A240 for the chemical composition of the steel, ASTM A313 for the mechanical properties of the wire rope, and ASTM A276 for the bar stock used in swage fittings. Compliance with these standards ensures the material meets the minimum requirements for strength and corrosion resistance.

How do environmental factors like salt spray and humidity accelerate galvanic corrosion? Saltwater acts as a highly efficient electrolyte. When two different metals (like stainless steel and aluminum) are in contact in a humid, salty environment, the salt spray completes an electrical circuit between them. This causes the less noble metal to corrode rapidly to protect the more noble metal, a process known as galvanic corrosion.

What is the expected lifecycle of T316 vs. T304 in high-chloride environments? In high-chloride (coastal) environments, T316 is expected to last 25 years or more with basic maintenance. In contrast, T304 may show significant surface rust within months and could require replacement within 5-10 years due to structural pitting. For more information on longevity, check our guide on how long metal railings last.

Does 'marine-grade' mean the railing is maintenance-free? No, "marine-grade" (T316) refers to the material's superior resistance to corrosion, but it still requires periodic maintenance. Salt and pollutants can accumulate on the surface, and if not rinsed off, they can eventually break down the protective layer. Regular fresh water rinsing is the most effective way to extend the life of any marine-grade system.
