The short answer: cantilever stairs should be evaluated before the supporting wall and floor framing are finalized. Confirm the load path, stair opening, finished elevations, tread and guard concept, acceptable movement, lighting routes, trade sequence, and approval documents first. If those eight conditions cannot be coordinated, a visible mono-stringer may be the more buildable floating-stair solution.
The visual idea is simple—individual treads appear to project from a wall—but the structure is not. Recent homeowner discussions show why early coordination matters. One cantilever-stair project discussion focused on flex and bounce even though a steel structure was hidden below the finish. Another homebuilding discussion about a high floating-stair quote compared concealed cantilever, mono-stringer, and dual-stringer systems that were not equivalent. The right comparison starts with site conditions, not a photo.
Fast feasibility screen
| Condition | Proceed when | Pause when |
|---|---|---|
| Supporting structure | A structural load path and attachment zone are defined | The stair is being added after an ordinary partition is framed |
| Opening and elevations | Surveyed dimensions and finished floors are known | Only rough architectural dimensions are available |
| Geometry | Rise, run, landing, headroom, and tread buildup coordinate | Finish thicknesses or landing edges are undecided |
| Guard system | Guard attachments are designed with the tread and wall structure | The guard is treated as a later accessory |
| Movement | Performance expectations are agreed and engineered | No one has defined acceptable tread feel or vibration |
| Services | Lighting and wiring routes are detailed early | Electricians will need to drill the completed support zone |
| Trade sequence | Steel, framing, wall finish, treads, and guards have a sequence | Access will be covered before inspection or adjustment |
| Submittals | Required drawings and calculations are identified | Fabrication is expected before local review |
1. What actually supports the cantilever stairs?
A cantilever tread transfers load back to a concealed support. Depending on the project, that may involve a steel spine, brackets, a reinforced wall assembly, floor framing, or a coordinated combination. The finished drywall or cladding is not the structure.
Ask the structural professional to identify the complete load path, connection locations, edge distances, tolerances, and the work that must be complete before the stair support arrives. Renovations need special care because existing walls may conceal utilities, irregular framing, or insufficient foundations. A site opening that looks correct on a plan can still be incompatible with the required connection zone.

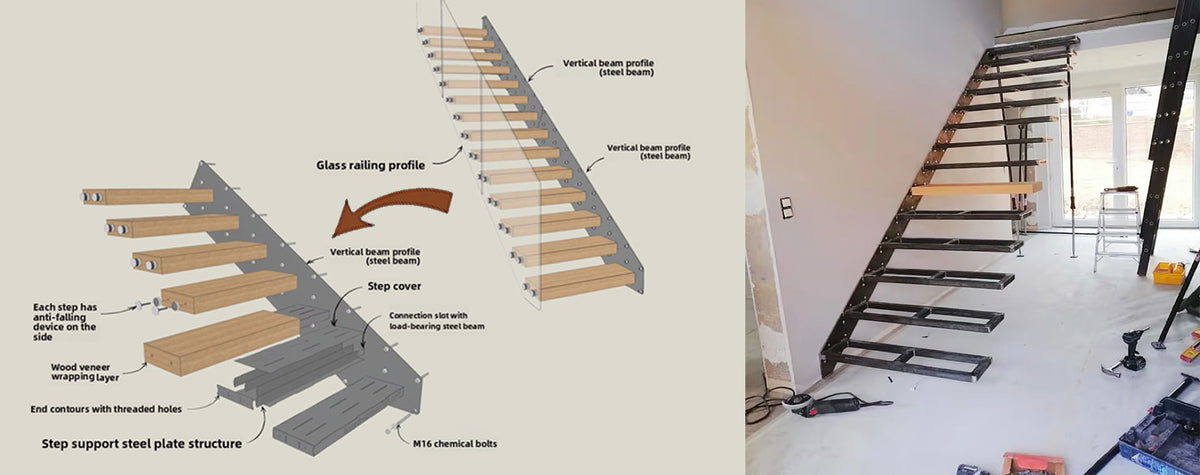

A concealed support still needs space, connections, inspection access, and a finish sequence. The project engineer must define the actual assembly.
2. Are the opening and finished elevations verified?
Record floor-to-floor height, opening length and width, slab or framing edges, wall locations, and landing elevations. Then add the layers that will exist at completion: flooring, underlayment, tread finish, ceiling, wall finish, and any recessed base detail. The stair geometry must work with finished surfaces, not just structural rough-in.
A good quote package distinguishes verified field dimensions from design assumptions. If a renovation cannot be opened for measurement yet, mark that limitation and plan a field-verification milestone before final fabrication.
3. Does the geometry work as one system?
Rise, run, tread thickness, nosing, landings, headroom, and walking line interact. Changing tread material after the steel is released can change finish buildup and clearances. Likewise, moving a top-floor edge may alter both the last rise and the guard transition.
Use a section drawing through the entire flight. It should show every finished elevation, not only a plan view. For winder, switchback, or landing conditions, add enlarged details where the stair meets floors and guards.
4. How will the guard attach?
The guard is part of the stair design. Glass channels, cable posts, metal rails, and tread-mounted brackets impose different forces and require different edge clearances. A minimalist guard may also need concealed reinforcement that competes for the same space as the tread support.
Define the guard material, attachment face, post or panel spacing concept, handrail continuity, termination at the landing, and interfaces with walls. Do not assume a beautiful stair photo proves that the same guard can be attached to your tread thickness or structure.

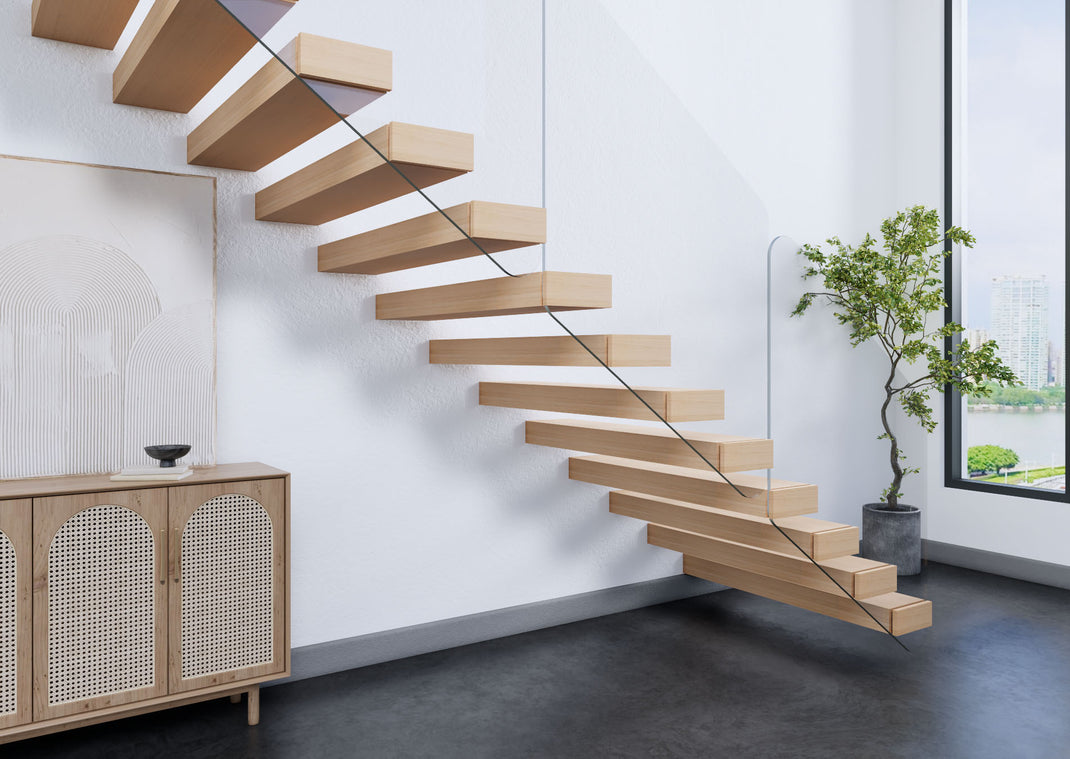

The open appearance depends on coordinated tread support, wall construction, and guard attachment—not the wood finish alone.
5. What movement will occupants feel?
Strength and perceived stiffness are different questions. A stair may support its design loads yet feel more flexible than a homeowner expects. Tread projection, support stiffness, connections, guard behavior, finishes, and construction tolerances all influence the experience.
Discuss deflection and vibration expectations with the structural engineer and fabricator. If a material such as stone will wrap a steel tread, movement compatibility and finish detailing matter. Ask how the design is evaluated and what site conditions could change the result; do not accept an unsupported promise that a stair will have “zero movement.”
6. Where do lighting and utilities go?
Integrated tread lights are easiest when power supplies, wiring routes, drivers, access panels, controls, and replacement strategy are planned before walls close. Low-voltage wiring still needs coordination with the structural zone and applicable electrical requirements.
Place lighting details on the stair drawings, including fixture location, cable path, connection point, and who supplies each component. Avoid field drilling into concealed steel or engineered connections without approval.
7. Can the trades build it in the right order?
A typical coordination sequence may include survey, engineering, concealed steel, framing, rough electrical, inspection, wall finish, tread installation, guard installation, and final adjustment. The actual order varies, but every project needs one accountable sequence.
Decide who protects exposed steel and finished treads, who verifies field dimensions, how components enter the building, whether temporary stairs are required, and when concealed connections are inspected. The AISC stair detailing resource reinforces the value of communication among designers, fabricators, and erectors; residential feature stairs benefit from the same discipline.
8. What must be approved before fabrication?
Local requirements vary. The project may need structural calculations, sealed drawings, shop drawings, product information, connection details, guard details, and a defined inspection sequence. The 2024 IRC building-planning chapter is a model-code reference for residential planning topics, but the locally adopted code and authority having jurisdiction control.
Ask the design professional and permitting office what is required before the purchase order is released. Clarify who is responsible for engineering the support structure, the stair steel, the guard, and their interfaces. “By others” gaps are where expensive field changes often begin.
Cantilever or mono-stringer?
| Decision factor | Concealed cantilever | Mono-stringer |
|---|---|---|
| Visual goal | Individual treads appear to emerge from a wall | A visible central steel spine supports the flight |
| Wall coordination | High; concealed support occupies the wall zone | Often lower, though floor and landing connections remain structural |
| Renovation access | May require substantial wall opening and reinforcement | Can be easier to survey and install in some existing spaces |
| Trade sequence | Concealed work must precede final wall finish | More structure remains visible and accessible |
| Best use | Projects designed around the hidden support from the start | Projects that want an open stair with a visible structural expression |
What to send for a useful quote
- Project location and building type
- Dimensioned plans, section, and current site photos
- Floor-to-floor height and finished-floor assumptions
- Wall and floor structural information
- Preferred tread material, thickness concept, and finish
- Guard and handrail concept
- Lighting concept and control location
- Permitting, engineering, and schedule requirements
- Access limits for delivery and installation
Bottom line
Cantilever stairs are most successful when the building is designed around their concealed structure. Verify the wall, opening, geometry, guard, movement expectations, lighting, sequence, and approvals before final design. If a project cannot accommodate that coordination, compare a mono-stringer on equal scope instead of forcing a hidden system into an unsuitable site.
