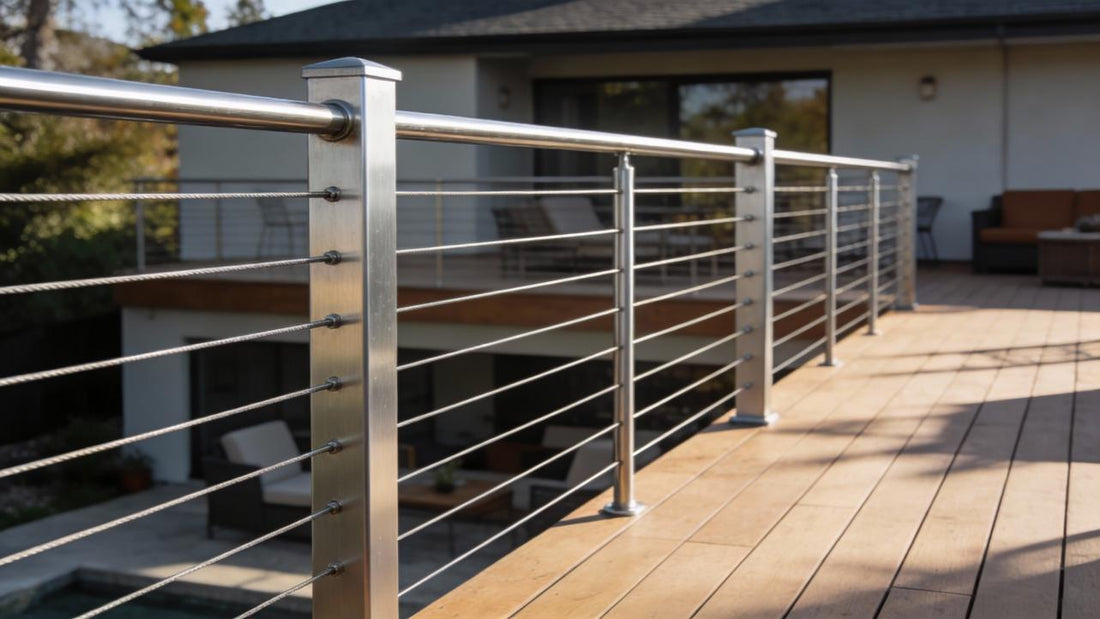

Steel cable railings look light and modern, but they only stay that way if every part of the system is chosen and built correctly. Most problems come from poor crimps, mismatched metals, or railings that never get cleaned. If you want to crimp steel cable railings once and trust them for years, you need to focus on materials, tools, technique, and simple maintenance.
Prepare Corrosion-Resistant Materials for Your Cable Railings
Durability starts at the material level. Once the posts are set and the cables are up, changing alloys or fittings is painful and expensive, so it makes sense to get this part right from the beginning.
Why Marine-Grade Stainless Steel Matters Outdoors
For cable railings, stainless steel is standard, but not all stainless steel performs the same. Type 304 works well in many inland locations with ordinary rain and humidity. In harsher environments, especially where salt or pool chemicals are present, type 316 performs better because it contains molybdenum, which improves resistance to pitting and crevice corrosion.
If your deck is near the coast, a salt-treated road, or a pool, treat 316 as the baseline for both cable and fittings. For a typical suburban deck far from salt, 304 can be acceptable as long as you plan to clean it periodically. Either way, choosing the right grade upfront makes it much easier to keep steel cable railings looking clean instead of stained.
Match Your Steel Cable and Fittings
Once you pick the stainless grade, keep the system consistent. Mixing metals that do not belong together is an easy way to invite galvanic corrosion in damp conditions.
Aim for three simple rules:
- Use cable and swage fittings made from the same stainless grade.
- Match the fitting size and design to the exact cable diameter and construction.
- Choose hardware that is rated for guardrail use, not light decorative work.
When cable and components are designed to work as one system, every place you crimp steel cable railings has a much better chance of staying tight and corrosion-resistant.
Use the Right Tools for Crimping Steel Cable Railings
The next factor in a solid railing is tool choice. Even good materials will fail if you crush sleeves with pliers or cut cable with whatever is lying around.
Choose a Purpose-Built Cable Crimping Tool
Swage sleeves and threaded fittings are engineered for specific die profiles and compression depths. A purpose-built swaging tool helps you hit those targets reliably.
For most residential projects:
- Select a hand swager that clearly lists your sleeve and cable sizes on the dies.
- Ensure the handles are long enough for you to close them fully on every crimp.
- For larger jobs or thicker cable, consider a hydraulic swager that uses the same principles with less effort.
Many professional tools ship with a go / no-go gauge. After each crimp, you slide the gauge over the sleeve to confirm it sits in the acceptable size range. That quick check tells you the crimp is fully formed instead of guessing.
Get Clean, Square Cable Cuts
Good crimps begin with clean ends. Wire rope is a bundle of small wires; if you cut it with dull tools, the end flares or crushes, and stray strands make it hard to insert the cable fully into the fitting.
A dedicated steel cable cutter:
- Shears the cable cleanly without heavy crushing
- Keeps the end round so it slides easily into fittings
- Reduces sharp, loose strands that can catch fingers and clothing
With proper cutters, every later step feels easier, and your steel cable railings look more professional.
How to Crimp Steel Cable Railings Step by Step
With materials and tools ready, a simple, repeatable sequence keeps your work consistent from one cable run to the next.
Measure and Prepare Your Steel Cable
- Measure the clear distance between end posts at the cable height.
- Check fitting instructions for the required insertion depth at each end.
- Add those insertion lengths to your clear distance and adjust for any tensioners.
- Mark the cut point on the cable with a permanent marker.
- Cut with your cable cutter, keeping the jaws square to the cable.
Handle the cable gently so you avoid kinks and sharp bends, especially near the ends where the fittings will sit.
Crimp Cable Fittings Correctly
A proper crimp presses the sleeve evenly around the cable so the fitting grips along its full length. Rushing this step is one of the fastest ways to weaken steel cable railings.
- Insert the cable to the specified depth.
- Position the sleeve in the correct die cavity and center it.
- Make the first compression near the cable exit end, leaving a small unpressed section right at the tip.
- If a longer sleeve requires more compressions, space them evenly along the sleeve as the instructions show.
- Close the tool fully with each compression. Partial strokes leave the sleeve under-crimped.
- Inspect the finished crimp for cracks, sharp edges, and irregular shape, and use a gauge if one is provided.
Working this way on every run gives you a consistent pattern of crimps that share load effectively across the entire railing.
Common Crimping Mistakes You Need to Avoid
Many cable railing failures come from the same handful of errors. Knowing them upfront makes it easier to spot and fix problems as you build.
Weak, Over-Crimped, or Damaged Fittings
- Under-crimped fittings that barely grip the cable and can slip when someone leans on the rail
- Over-crimped or mis-sized fittings that crack, distort, or cut into the outer strands
- Kinks and bird-caging near the fitting, which indicate internal damage and reduced strength
A simple rule helps: after each crimp, pull firmly on the cable, look closely at the sleeve, and be honest about what you see. If a fitting looks or feels wrong, cut it off and redo it before you move on.
Mixing Cable Railing Components
Grabbing whatever hardware is on hand might save a few minutes now and cost you a lot later.
Mechanical and metallurgical mismatches both matter:
- A sleeve designed for a different cable construction may never compress correctly.
- Combining stainless parts with unprotected carbon steel or zinc-plated elements can create corrosion problems in wet or salty air.
Treat the railing hardware as a system instead of a bin of loose parts. When you do, every point where you crimp steel cable railings becomes more predictable and safer.
Maintain Your Cable Railings for Long-Term Corrosion Resistance
Even perfectly installed railings live in the weather every day. Dust, pollution, and salt will sit on stainless surfaces and slowly wear down the protective layer if you never clean them.
Simple Cleaning Habits for Stainless Steel Railings
- Mix warm water with a mild dish soap.
- Wipe cables, fittings, and posts with a soft cloth or nylon brush.
- Rinse thoroughly with clean water.
- Dry with a clean cloth to reduce spots and mineral deposits.
- Avoid bleach, harsh acids, and abrasive pads.
In coastal or poolside locations, plan on quick washes a few times a year. For inland decks, once or twice a year is often sufficient to keep steel cable railings in good condition.
Inspect Your Cable Railing Once a Year
A short yearly inspection keeps small issues from growing. Walk the length of the railing and check:
- Cables for sagging, broken wires, or flared strands
- Crimps for cracks, rust streaks, or distortion
- Posts and top rail connections for looseness
Tighten hardware, replace damaged fittings, and clean any discoloration with a stainless-safe cleaner. This small habit protects the time and money you invested when you first crimped steel cable railings.
Build Safe, Clean-Looking Cable Railings That Last
Strong, low-maintenance cable railings do not happen by accident. They come from smart material choices, proper tools, careful swaging, and a bit of routine care. When you crimp steel cable railings with the right technique and keep an eye on them over time, you end up with a system that feels solid, resists corrosion, and keeps your view open season after season.
FAQs about Steel Cable Railing Crimping
Q1: How tight should steel cable railings be tensioned?
Cable tension needs to be high enough to limit deflection, but not so high that it bows posts or pulls fasteners out. In practice, follow the manufacturer’s recommended tension values and use a tension gauge. Over-built posts and proper blocking help share the load.
Q2: What post design works best with crimped steel cable railings?
Stiff posts matter as much as strong cables. Many installers prefer engineered wood or steel posts with internal blocking, solid footing connection, and intermediate posts or cable spacers to reduce span length. The stiffer the frame, the less each cable needs to be over-tensioned.
Q3: Are crimped cable railings suitable for stairs and ramps?
Yes, but you need hardware designed for angled runs. Look for angle washers, pivoting terminals, or fittings rated for stair applications. Hole locations must follow the stair pitch so cables run parallel to the handrail, and local code requirements for graspable rails still apply.
Q4: Do I need special drilling patterns or sleeves in my posts?
For most systems, holes should be slightly larger than the cable to prevent chafing but not so large that the cable wanders. On metal posts, grommets or bushings are often used to isolate the cable from sharp edges and reduce wear at each penetration point.
Q5: When should I involve an engineer or building official for cable railings?
Anytime the railing guards a significant drop, serves public or multi-family spaces, or ties into unusual structures, it is wise to consult an engineer or building official. They can confirm post spacing, attachment details, and loading assumptions before you crimp the first cable.
