Choose floating stair treads by more than species and apparent thickness. Before fabrication, define eight items together: finished geometry, tread construction, moisture condition, attachment interface, edge and finish, traction, railing and lighting coordination, and delivery and installation responsibilities. A thick-looking tread can still be a poor fit if its internal construction, fastener locations, or site conditions are not coordinated with the stair frame.
This guide is a fabrication brief for homeowners, designers, builders, and stair suppliers. It helps you compare proposals for the same finished result. It does not replace project-specific engineering, shop drawings, or approval by your local building authority.
What is a floating stair tread?
A floating stair tread is the finished walking element of an open stair whose main support is visually minimized or concealed. Depending on the stair, each tread may sit on brackets connected to a central steel stringer, span between two supports, wrap around a concealed steel arm, or slide over a cantilever projecting from a wall. The visible wood or finish layer is therefore only one part of a coordinated stair assembly.
The support concept should come first. Compare mono stringer stairs with cantilever stairs before finalizing a tread detail. The same-looking block of wood may need a completely different internal recess, attachment pattern, or removable access detail on those two systems.
The eight specifications to confirm
1. Finished geometry, not just a rough board size
List the finished tread width, depth, visible thickness, nosing projection, edge profile, and any wall-side clearance. Also define the finished floor-to-floor height, number of risers, and intended rise and run. If the tread wraps a steel bracket or receives railing hardware, include a dimensioned section through that condition.
Consistency matters as much as the nominal number. The 2024 International Residential Code uses a minimum tread depth of 10 inches and a maximum riser height of 7 3/4 inches for the residential stairways covered by its general provisions, and it limits variation within a flight. Open-riser openings, nosings, guards, handrails, landings, and headroom have related requirements. Your jurisdiction may use another edition or local amendments, so confirm the controlling rules before approving shop drawings.
Do not order every tread from one typical dimension when the flight includes winders, a landing transition, a wall that is not straight, or a finished opening that has not been field-verified. A numbered tread schedule reduces the temptation to trim expensive finished parts on site.
2. Structural interface and visible thickness
“Three inches thick” describes an appearance; it does not define capacity. A tread may be solid, laminated, built around an internal core, or fabricated as a hollow sleeve over steel. Its safe span and attachment depend on material properties, grain direction, internal construction, support spacing, connection geometry, and the loads required by the project.
Ask the stair designer to show the load path from the front edge of each tread into the bracket or stringer. The drawing should distinguish decorative wood from structural steel or other engineered components. It should also identify who approves the tread assembly and how much movement or deflection is acceptable. Avoid choosing a universal thickness from a photograph or forum comment.

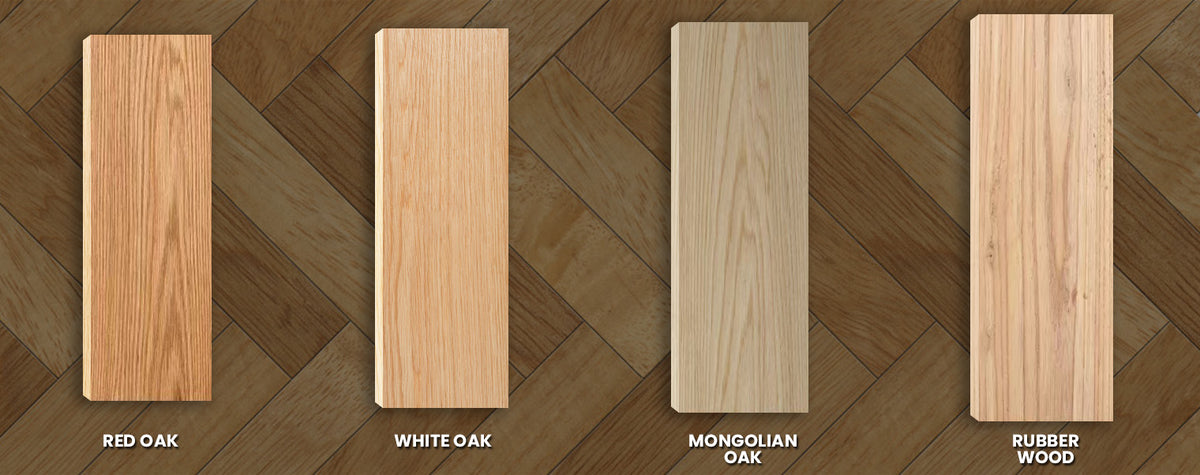

3. Wood species, construction, and moisture condition
For wood treads, specify more than a species name. Record whether the visible assembly is solid, laminated, veneered over a stable core, or a box that encloses steel. Define the grade or visual standard, grain direction, color range, acceptable sapwood or knots, and whether the parts should be sequence-matched. Ask for a physical finish sample made on the proposed material.
Wood exchanges moisture with its surroundings and can change dimension as conditions change. The USDA Forest Products Laboratory’s chapter on drying, moisture control, and dimensional change explains why moisture measurement and protection during fabrication, transit, storage, and service matter. For a stair project, have the wood supplier and installer agree on the target moisture condition, how it will be checked, where the treads will be stored, and when acclimation or conditioning is complete.
4. Attachment method and hardware appearance
Define how each tread is located, retained, and removed. The detail may use concealed bolts, screws from below, threaded inserts, approved adhesive as part of a designed assembly, or a sleeve that fits over steel. The correct method is project-specific. A note that simply says “attach wood tread to steel” leaves the most important coordination unresolved.
Ask these questions before fabrication:
- Which component carries the load, and which component only conceals it?
- Are fasteners visible from the side or underside?
- Can a damaged tread be removed without damaging the frame or finished wall?
- Is there room for wood movement without creating a loose connection or rubbing the wall?
- Who verifies bracket level, hole locations, thread engagement, adhesive compatibility, and final tightening?
Recent woodworking discussions about floating stair treads repeatedly turn into questions about MDF boxes, oak wear layers, end-grain screws, adhesive, clamping, and hidden steel. That is a signal to request one approved assembly detail—not to improvise the connection after the tread arrives.
5. Edge profile, finish, and repair standard
The front edge is both a design line and a high-contact surface. Specify whether it is square, eased, radiused, beveled, or formed with a separate nosing. State which edges remain visible from below and whether seams are permitted on the sides or underside. If treads meet a wall, define the intended reveal rather than assuming every wall is straight.
For the finish, record color, sheen, texture, stain system, protective topcoat, and acceptable variation from the approved sample. Decide whether the tread arrives prefinished or receives its final coat after installation. The proposal should also explain how field cuts, fastener plugs, small chips, and future wear are repaired so the service plan matches the original appearance.
6. Traction, contrast, and household use
A glossy sample can look attractive under showroom lighting but feel very different with socks, dust, water, or worn footwear. Discuss surface texture and traction with the designer and finish supplier. If the project needs an inset strip, removable runner, or another treatment, coordinate it before machining so the solution looks intentional and does not create a raised trip edge.
Also describe who will use the stair. Children, older adults, pets, and people carrying laundry may value edge contrast, consistent lighting, and a comfortable graspable handrail more than a perfectly uniform wood tone. Read the separate guide to floating stair planning for pets, then discuss the actual household and local requirements with the project team. A tread finish is only one part of safe stair use.
7. Railing, glass, cable, and lighting coordination
Guard posts, glass fasteners, cable terminations, and tread lighting can all require holes or concealed access. Place those items on the tread drawings before the wood is machined. Otherwise, the railing installer may have to drill finished treads on site or discover that a fastener conflicts with a hidden steel bracket.
For lighting, identify the fixture or channel, cable route, connector location, driver access, and replacement method. For the guard, show whether loads transfer through a tread, into the stringer, or to a separate structural member. The mono versus double stringer comparison explains how support layouts differ, but the project drawings should still show every penetration and connection.
8. Fabrication, packing, storage, and site acceptance
Finish the specification with responsibilities. Name who field-measures, releases dimensions, supplies templates, numbers the treads, approves samples, provides hardware, unloads the shipment, stores the wood, installs the parts, and completes touch-ups. If multiple trades are involved, identify the handoff point between steel, wood, railing, electrical, and finish work.
Request protective packing that keeps finished faces separated and makes the tread number visible without opening every package. On arrival, inspect quantities, labels, moisture condition where specified, finish consistency, damage, machining, and fit against approved drawings before discarding packaging or starting installation.
Floating stair tread specification table
| Decision | What to put in writing | Why it changes the quote |
|---|---|---|
| Geometry | Numbered sizes, finished thickness, depth, width, edge, reveal, and special treads | Controls material yield, machining, templates, and site fitting |
| Assembly | Solid, laminated, wrapped, or engineered construction approved for the support detail | Changes labor, material, internal machining, weight, and repairability |
| Appearance | Species, grade, grain, color range, matching, seams, sample, and sheen | Defines selection labor and what counts as an acceptable finished part |
| Connection | Bracket interface, fasteners, access, tolerances, and removable-part strategy | Controls steel coordination, machining, installation time, and visible hardware |
| Use | Interior or exterior exposure, traffic, traction, pets, children, and cleaning | Influences finish system, detailing, lighting, and maintenance |
| Coordination | Railing, glass, cable, lighting, wiring, and inspection hold points | Prevents field drilling, collisions, and remaking finished treads |
| Delivery | Numbering, packaging, storage limits, inspection, installation, and touch-up | Separates the part price from the complete installed scope |
How to compare two tread proposals
Send both suppliers the same stair drawings, tread schedule, finish reference, support detail, and responsibility list. Then compare line by line. A lower tread price may exclude field templates, finish samples, hidden machining, fasteners, packaging, freight, installation, or touch-up.
- Confirm the same assembly. Do not compare a solid tread with a wrapped or cored assembly as if the description were identical.
- Confirm the same finish standard. A named color without an approved sample does not define grain or acceptable variation.
- Confirm the same connection scope. Identify who supplies and verifies inserts, bolts, adhesives, brackets, and field drilling.
- Confirm the same delivery condition. Separate unfinished parts, prefinished parts, and installed, touched-up work.
- List every exclusion. Templates, engineering, railing holes, LED channels, freight, unloading, storage, and installation should each have an owner.
Information to send with a floating stair tread inquiry
- Finished floor-to-floor height, opening dimensions, stair width, and layout
- Current architectural and structural drawings with revision date
- Preferred support type and bracket or stringer details, if available
- Numbered tread schedule, including landings, winders, and special pieces
- Wide and close photos of the stair opening and receiving structure
- Wood or finish preferences, reference sample, edge profile, and sheen
- Railing type, post or glass locations, and lighting concept
- Interior, exterior, coastal, wet, high-traffic, child, or pet conditions
- Required documents, approvals, delivery address, access limits, and target schedule
You can review the available design paths on the Senmit floating stairs page. When your measurements, photos, and preferences are ready, use the floating stair design and quote form so the team can evaluate the treads as part of the complete stair rather than as isolated boards.
Frequently asked questions
How thick should floating stair treads be?
There is no safe universal thickness. The required assembly depends on material, span, support spacing, attachment, internal reinforcement, railing connections, code loads, and the permitted movement. Specify the desired visible thickness, then have the responsible designer or engineer approve the actual construction.
Are solid wood treads always better?
No. Solid wood can provide an authentic edge and repairable surface, while laminated or wrapped constructions can provide different stability, appearance, weight, and machining options. Compare approved assemblies for the same support condition and finish standard rather than choosing by label alone.
Should floating stair treads be finished before installation?
Often, but not automatically. Shop finishing can improve consistency and protect visible faces, while field finishing may be needed when plugs, trimming, or adjacent work must be blended. The specification should name who finishes, protects, touches up, and accepts the result.
Can the treads be replaced later?
They can be replaceable when the connection is designed for access. Confirm whether fasteners can be reached, whether railing components penetrate the tread, and whether removing one tread affects wiring, glass, cable, or adjacent finishes.
When should tread details be finalized?
After project geometry and the structural support concept are verified, but before steel, railing, and wood are released for fabrication. That timing lets the team coordinate brackets, tolerances, holes, lighting, finish samples, and installation access on the same approved drawings.
