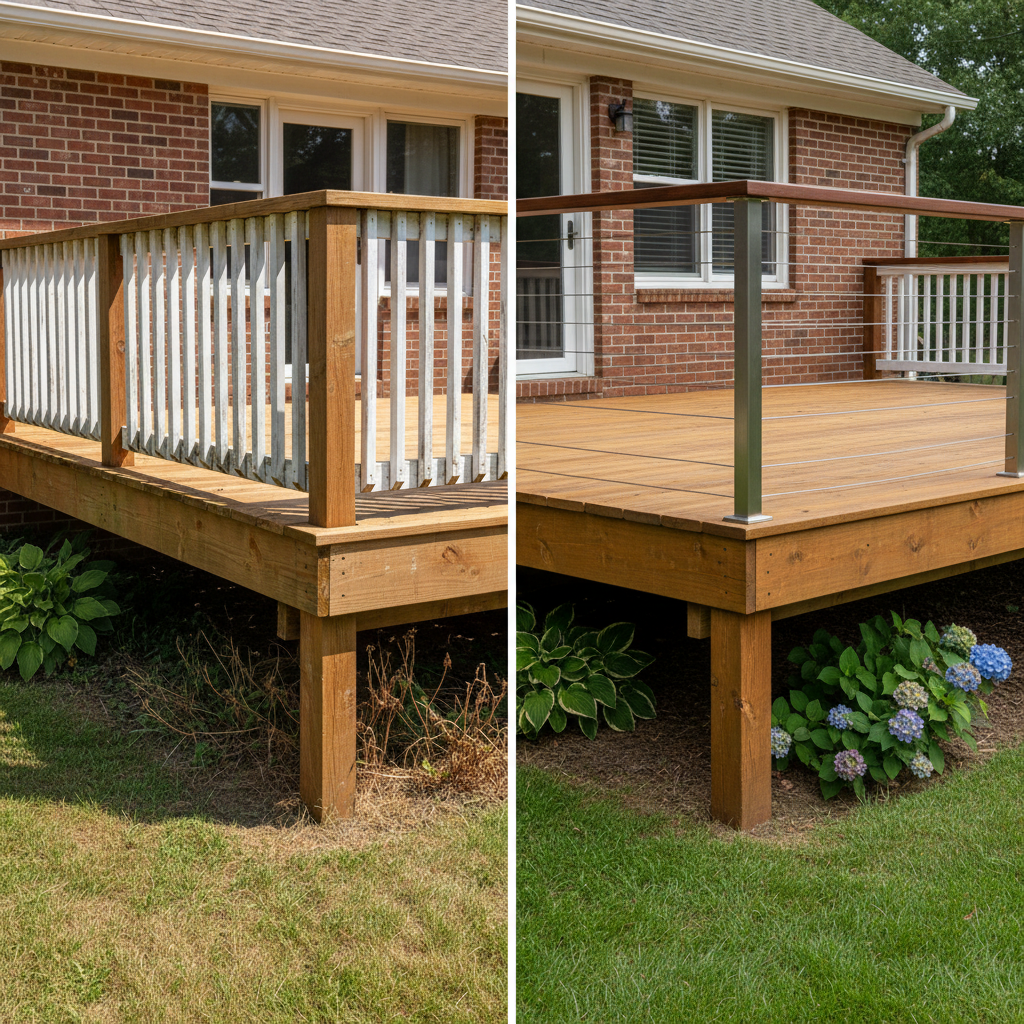

Upgrading an older wood deck to a modern cable railing system can dramatically improve sightlines, curb appeal, and resale value in 2026, but only if the existing structure can safely handle the unique loads that cable systems impose. The key decision is not whether cable railing looks better—it almost always does—but whether your current posts, framing, and attachments have enough stiffness and anchorage to prevent deflection, creep, or code violations once the cables are tensioned. Treat the retrofit as a structural project first and an aesthetic upgrade second.
Why Retrofitting a Wood Deck with Cable Railing Is More Than a Baluster Swap
Cable railing delivers the open, minimalist look many homeowners want, but it behaves differently from traditional wood or composite balusters. Cables under tension exert continuous lateral force on posts, which can reveal weaknesses that older railings concealed. Before buying hardware or removing a single baluster, verify that your deck meets local guard and handrail requirements. As this Sonoma County technical bulletin on cable rails explains, cable railing is governed by jurisdiction-specific rules that cannot be assumed from product marketing.
Elevated decks almost always require guards on open sides, turning any railing retrofit into a life-safety matter rather than a simple cosmetic refresh. Many older decks were built to looser standards or have experienced years of weather exposure, rot, or movement. Jumping straight to installation without a structural review is one of the most common reasons retrofits fail over time.
Assessing Your Existing Deck: The First Decision Filter
The biggest information-gain step is determining whether your deck is even a realistic candidate for a cable retrofit. Use this quick constraint-first filter before comparing products or planning layouts:
- The deck feels bouncy or the railing already shows movement.
- Posts are attached only to rim joists or fascia with minimal blocking.
- There are signs of rot, ledger issues, or corrosion on fasteners.
- The railing run is long with few opportunities for intermediate stiffening.
If two or more of these conditions exist, the project typically shifts from a simple railing swap to a more involved structural upgrade. Internal resources on wood creep and bowing posts highlight how constant cable tension combined with moisture can cause wood posts to bow over time, leading to loose cables and a spongy feel.
Similarly, deck blocking is critical because it prevents post deflection under load. Without adequate blocking, even code-compliant post sizes can flex enough to make the finished railing feel unsafe or require frequent retensioning.
Key Code and Structural Thresholds for Cable Railing Retrofits
Local building codes dictate guard height, infill spacing, and post strength. Many jurisdictions require the finished railing to prevent passage of a 4-inch sphere and limit cable spacing to no more than 3 inches. The same Sonoma bulletin notes that cable infill is typically limited to 3 inches maximum, with possible minimum cable diameter rules varying by location.
Wood posts used in guards are often required to be at least 2x4 or larger and spaced no more than 8 feet apart in certain regulations, though exact requirements differ. As outlined in California’s Title 8 railing design standards, guard posts are structural elements; simply swapping balusters is rarely sufficient if post size, spacing, or anchorage does not meet current standards.
The chart below illustrates relative retrofit suitability across common deck run lengths and conditions. These are heuristic scores synthesized from code references, wood-creep behavior, and industry retrofit patterns. They are not measured test data or guarantees of code compliance.
Retrofit Decision Boundaries for Existing Wood Decks
Illustrative decision-fit scores for retrofit paths, based on common deck/railing heuristics and the supplied evidence modules.
View chart data
| Category | Wood Keep | Reinforce Wood | Replace Metal |
|---|---|---|---|
| Short Run (<20 ft) | 4.0 | 3.0 | 1.0 |
| Medium Run (20–40 ft) | 2.0 | 4.0 | 3.0 |
| Long Run (>40 ft) | 0.0 | 2.0 | 5.0 |
Illustrative heuristic synthesis from the supplied constraint filter, threshold table, scenario matrix, and dont_buy_if guidance: cable spacing max 3 in; wood posts often 4x4 or 6x6 with roughly 6-8 ft spacing heuristic; long runs, poor blocking, and visible creep increase risk; coastal settings favor 316 stainless hardware. Scores are relative decision-fit levels, not test results, code compliance findings, or safety guarantees.
Post spacing remains one of the primary variables affecting rigidity. Longer spans increase deflection risk, which is why many successful retrofits add intermediate posts or switch to metal for better stiffness. Evaluation reports such as ICC-ESR-4798 and ESR-4217 show that approved cable systems rely on specific tested post and infill configurations—exact compatibility with your existing deck matters.
Wood Posts vs. Metal Posts: When the Recommendation Flips
The scenario matrix below summarizes the most common decision points. Wood posts can work well when the deck is already robust, runs are short, and the owner is willing to inspect and retension periodically. Metal posts usually become the preferred path on longer runs, marginal framing, or when maximum stiffness and minimal future maintenance are priorities.
Scenario Matrix (Simplified)
- Short run (<20 ft), solid framing, good condition: Wood posts often sufficient with proper blocking and marine-grade hardware. Lowest visual change.
- Medium run (20–40 ft), average condition: Reinforcement (additional blocking, larger posts, or sistering) is frequently needed. Consider hybrid approaches.
- Long run (>40 ft) or visible flex/rot: Metal posts typically provide better long-term performance and resistance to creep. The incremental cost is often justified to avoid repeated adjustments.
Coastal or high-moisture environments further tilt the scale toward Type 316 stainless steel components to resist pitting and corrosion. The marine-grade stainless steel standards whitepaper details why molybdenum-enhanced alloys perform better in chloride-rich settings.
Our internal guide on wood versus metal posts for cable railing in 2026 explores these trade-offs in greater depth, including cost, installation complexity, and longevity expectations.
Hardware and Installation Considerations for Wood-Post Retrofits
When keeping or reinforcing wood posts, select hardware specifically engineered for cable loads. Swage lag screws, protector sleeves, and tensioners help distribute force and reduce vibration. Products such as Senmit Swage Lag Screws or the Lag Screw Swage Turnbuckle Kit simplify tensioning while maintaining a clean appearance.
Protector sleeves prevent chafing where cables pass through wood, and stainless steel stemball swages create secure dead-end terminations. The full range of wood post railing systems and cable railing hardware offers tested components that align with common retrofit needs.
Detailed guidance is available in the cable railing for wood posts hardware and installation guide and the comprehensive retrofit deck railing upgrade from wood to cable.
Common Retrofit Failures and How to Avoid Them
The dont-buy-if list is straightforward: do not proceed with a simple cable swap if the deck already exhibits flex, deterioration, marginal fascia attachment, or if you expect zero maintenance. The most frequent regrets stem from insufficient blocking, undersized or poorly anchored posts, and hardware that cannot compensate for wood movement.
Prevention checklist:
- Add blocking between joists at every post location.
- Verify post attachment reaches into solid framing, not just rim boards.
- Use only marine-grade (Type 316) stainless steel in coastal or humid areas.
- Plan for initial tensioning and periodic checks—wood creep is a documented phenomenon.
- Confirm the final assembly meets the 4-inch sphere rule and local height/spacing rules.
Case studies in revamping old decks with cable systems demonstrate how proper reinforcement and hardware choices deliver lasting results.
Planning Your Retrofit Project in 2026
Begin with a professional inspection or thorough DIY structural audit if you are comfortable doing so. Document post sizes, spacing, attachment methods, and any signs of distress. Next, measure railing runs and decide on post material based on the scenario matrix above. Source all hardware from a single compatible system to avoid galvanic corrosion risks in mixed-metal setups.
Budget-conscious homeowners may start with wood-post reinforcement using existing wood post tension kits. Those prioritizing longevity or long spans often choose modular metal posts early to reduce callbacks. Either path benefits from the cleaner sightlines and modern aesthetic that cable railing provides when installed correctly.
For stair-to-landing transitions or front porch integrations, consult specialized guides such as transitioning cable railing from stairs and front porch upgrades swapping wood for minimalist metal.
Final Recommendations and Safety Boundary
A well-executed cable railing retrofit can transform an aging deck into a contemporary outdoor living space while maintaining or increasing property value. Success depends on treating the project as a structural and code-compliant upgrade rather than a weekend baluster replacement.
This article discusses comfort, setup advice, and structural considerations for deck retrofits. It does not constitute engineering, building, or medical advice. Local codes vary; always verify requirements with your jurisdiction and consult qualified professionals for structural assessments, especially if your deck shows signs of deterioration or if you experience persistent safety concerns. If in doubt, hire a licensed contractor or structural engineer before beginning work.
Disclaimer: Cable railing systems must comply with applicable building codes. The illustrative chart and matrices in this guide are heuristic planning aids synthesized from publicly available references and industry patterns. They are not substitutes for site-specific engineering or official permits. Improper installation can create safety hazards. Senmit provides quality hardware but cannot assume liability for unverified existing structures.
