Cable Railing Code Requirements: A Guide for DIY Homeowners

March 10, 2026

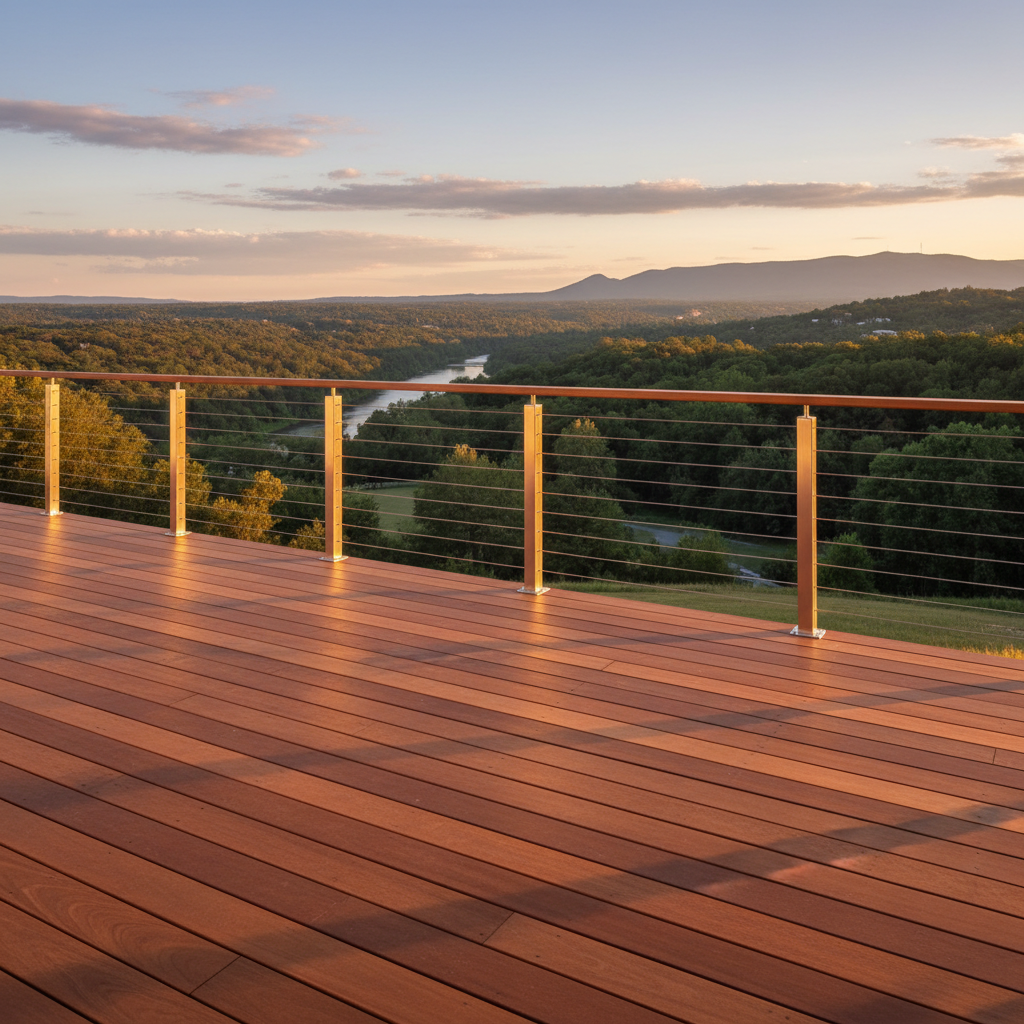

A professional architectural shot of a modern residential deck featuring a sleek cable railing system overlooking a scenic landscape during golden hour.

Summary

Ensuring that your DIY cable railing project meets local building codes is the most critical step in transitioning from a conceptual design to a safe, legal structure. Residential compliance primarily hinges on the "4-inch sphere rule," which dictates that no opening in the railing—including the space between cables under tension—can allow a 4-inch diameter sphere to pass through. By maintaining a minimum guardrail height of 36 inches and utilizing specific post spacing and tensioning techniques, homeowners can achieve a minimalist aesthetic without compromising on structural integrity or safety standards.

Key takeaways

The 4-Inch Rule: Cables must be spaced no more than 3 inches apart to account for deflection, ensuring they pass the 4-inch sphere test required by the International Residential Code (IRC).
Height Requirements: Most residential codes require a minimum guardrail height of 36 inches for decks elevated more than 30 inches above the ground.
Structural Load: The top rail must withstand a 200-pound concentrated load, while the cable infill must resist a 50-pound load applied to a small area.
Post Spacing: To prevent excessive cable sag, intermediate posts or vertical spacers should be placed every 3 to 4 feet.
Corner Reinforcement: Corner posts must be significantly beefed up or doubled to handle the cumulative tension of multiple cable runs without bowing.

Navigating the International Residential Code (IRC) for Cable Railing

For most homeowners in the United States, the International Residential Code (IRC) serves as the primary benchmark for deck safety. While the IRC does not explicitly name "cable railing" as a unique category, it classifies it under "guards" and "infill." Understanding these essential cable railing building codes and considerations is vital because local jurisdictions often adopt the IRC with specific regional amendments. In 2026, inspectors are increasingly focused on the cumulative structural load of the entire system rather than just the individual components.

The primary purpose of a guardrail is to prevent falls from elevated surfaces. If your deck is more than 30 inches above the grade below, a guard is mandatory. The IRC specifies that this guard must be at least 36 inches high, measured from the deck surface to the top of the rail. However, if you are building in a commercial setting or in certain high-density residential areas, the International Building Code (IBC) might require a 42-inch height. Always verify with your local building department before purchasing materials.

Logic Summary: The IRC provides a baseline for safety, but local "authority having jurisdiction" (AHJ) has the final word. We recommend 36 inches as a minimum for residential projects, but 42 inches is a safer bet for future-proofing and universal compliance.

The 4-Inch Sphere Rule: Why Spacing and Deflection Matter

The most frequent point of failure during a DIY inspection is the "4-inch sphere rule" (IRC R312.1.3). This rule is designed to prevent small children from slipping through the railing. While a rigid baluster can be spaced exactly 3.9 inches apart, cable is flexible. If you space your cables at 3.9 inches, a child (or an inspector with a test sphere) can easily push the cables apart, creating an opening larger than 4 inches.

To pass the deflection test, industry standards suggest a "3-inch rule." By spacing your cables 3 inches apart center-to-center, you provide enough tensioned resistance to ensure that even when pushed, the gap does not expand beyond the 4-inch limit. This requires high-quality stainless steel tension turnbuckles for cable railing to maintain the necessary rigidity over time.

A close-up technical shot of a cable railing system showing a tensioning tool being used to secure a 1/8 inch stainless steel cable into a post.

Table: Cable Spacing and Post Requirements

Component	IRC Requirement	Pro Recommendation	Why?
Cable Spacing	< 4" opening	3" center-to-center	Accounts for cable deflection under load.
Post Spacing	Not specified (load based)	3' to 4' maximum	Prevents cables from sagging or spreading.
Top Rail Height	36" minimum	36" to 42"	Safety for adults and children.
Cable Diameter	Not specified	1/8" or 3/16"	Balances visibility with structural strength.

Guardrail Height and Structural Load Standards

A common misconception is that the guardrail only needs to look sturdy. In reality, it must meet strict load-bearing requirements. The top rail must be able to withstand a 200-pound concentrated load applied in any direction at any point along the rail. This means your posts must be securely mounted to the deck frame, not just the floorboards.

For cable infill, the code requires the system to resist a 50-pound load applied to a 1-square-foot area. While this sounds simple, the cumulative tension of 10 or 12 cables can exert upwards of 3,000 pounds of force on your end posts. If your posts are not properly blocked or reinforced, they will bow inward, causing the cables to sag and fail the sphere test. This is why choosing the right materials, such as in a 304 vs 316 stainless steel comparison for cable railing, is as much about structural longevity as it is about corrosion resistance.

Stair Railing Codes: Graspability and Geometry

Stairs introduce a new layer of complexity to code compliance. Unlike level deck railings, stair railings must serve two purposes: they act as a "guard" to prevent falls and a "handrail" to provide support. The IRC requires stair handrails to be between 34 and 38 inches high, measured vertically from the stair nosing.

A critical gap in many DIY guides is the "graspability" requirement (IRC R311.7.8.3). A handrail must be easy to grip. If your top rail is a wide 2x6 board, it does not qualify as a handrail because a hand cannot wrap around it. In these cases, you must install a secondary, graspable handrail on the inside of the guard. Furthermore, the 4-inch sphere rule still applies, but there is an exception for the "triangular" opening formed by the riser, tread, and bottom rail: this gap can be up to 6 inches.

Logic Summary: Stair codes are more restrictive because the risk of injury is higher. We assume a standard 7-inch riser and 11-inch tread; if your stairs vary, your cable angles and spacing must be adjusted accordingly to maintain the 6-inch triangle rule.

Corner Post Reinforcement and Tensioning Math

One of the most overlooked aspects of cable railing is the physics of the corner post. When cables turn a 90-degree corner, they exert a massive amount of "resultant force" on that single post. A standard 4x4 wood post or a thin-walled metal post will often fail or lean under this pressure.

To solve this, pros use two primary methods:

Double Posting: Placing two posts at the corner so the cables don't actually "turn" the corner but terminate into separate structural members.
Reinforced Blocking: Adding heavy-duty structural screws and internal blocking beneath the deck surface to lock the corner post into the joist system.

When it comes to tensioning, aim for approximately 200 to 300 pounds of tension per cable. You can verify this using a tension gauge or the "deflection test." If you pull on a cable in the center of a 4-foot span and it moves more than 1 inch, it likely needs more tension. Following a step-by-step cable railing installation guide can help you sequence your tensioning—starting from the middle cables and working outward—to prevent post warping.

Canadian Building Code Variations (NBC 2025)

If you are building in Canada, the National Building Code (NBC) 2025 has slightly different requirements than the US IRC. While the 100mm (roughly 3.94 inch) sphere rule is similar, the height requirements are often stricter. For example, in many provinces, any deck more than 600mm (24 inches) above grade requires a guardrail, and that guardrail must be 42 inches (1067mm) high if the drop is significant.

Furthermore, some Canadian jurisdictions have historically been wary of "climbable" railings (the ladder effect). While the NBC has moved away from strict "no-horizontal-rail" rules in recent years, it is essential to check if your specific province—like Ontario or BC—has retained these restrictions. For a deeper dive, see our guide on is cable railing legal in Canada? A comprehensive guide.

Maintenance and Documentation for Code Compliance

Code compliance doesn't end when the inspector leaves. Cable railing is a "live" system; stainless steel cables can stretch slightly over the first year, and wood posts can shrink as they dry. This can lead to sagging cables that no longer pass the 4-inch sphere rule.

We recommend a bi-annual "tension check." Simply walk the perimeter and give each cable a firm tug. If there is noticeable slack, use your turnbuckles to take up the gap. Keeping a small log of these checks can be incredibly helpful if you ever sell your home, as it demonstrates to future buyers and inspectors that the system has been professionally maintained. For all your replacement parts and maintenance needs, you can browse a complete cable railing hardware collection to ensure you are using compatible, high-grade components.

FAQ

What is the 4-inch sphere rule for cable railings? The 4-inch sphere rule is a safety standard in the International Residential Code (IRC) that prohibits any opening in a railing from allowing a 4-inch diameter sphere to pass through. For cable railings, this means the cables must be spaced closely enough—and tensioned tightly enough—that they do not spread apart beyond 4 inches when pressure is applied. Most professionals recommend a 3-inch center-to-center spacing to ensure compliance under load.

How far apart should cable railing posts be? To maintain proper tension and prevent cable deflection, structural posts should generally be spaced no more than 6 to 8 feet apart. However, you must include intermediate "spacer" posts or pickets every 3 to 4 feet. These intermediate supports don't necessarily need to be structural, but they are essential for keeping the cables aligned and preventing them from being pushed apart.

Do I need a top rail for cable railing? Yes, a top rail is almost always required by code. The top rail provides the necessary structural "cap" that holds the posts together against the tension of the cables. It also serves as the primary guardrail surface that must withstand a 200-pound concentrated load. Some modern systems use a very thin metal top rail, but it must still meet the structural load requirements of the IRC.

Can I use cable railing on stairs? Absolutely, but stair installations must follow specific "graspability" and height rules. The handrail must be between 34 and 38 inches high and have a profile that is easy to grip. If your main guardrail is not graspable, you must add a separate handrail. Additionally, the spacing between the bottom cable and the stair tread must not allow a 6-inch sphere to pass through the triangular opening.

How much tension should be on each cable? Most residential cable railing systems require between 200 and 300 pounds of tension per cable. This is enough to prevent significant sagging without putting excessive strain on the end posts. You can measure this with a tension gauge or by ensuring that the cable deflects no more than 1 inch when pulled firmly in the center of a 4-foot span.

Is cable railing legal in all states? While cable railing is legal under the International Residential Code (IRC), some local municipalities have specific "climbability" restrictions that may limit its use. These rules are becoming less common, but it is always best to check with your local building department. In most cases, as long as you meet the height and 4-inch sphere requirements, cable railing is a fully compliant option for residential decks.
