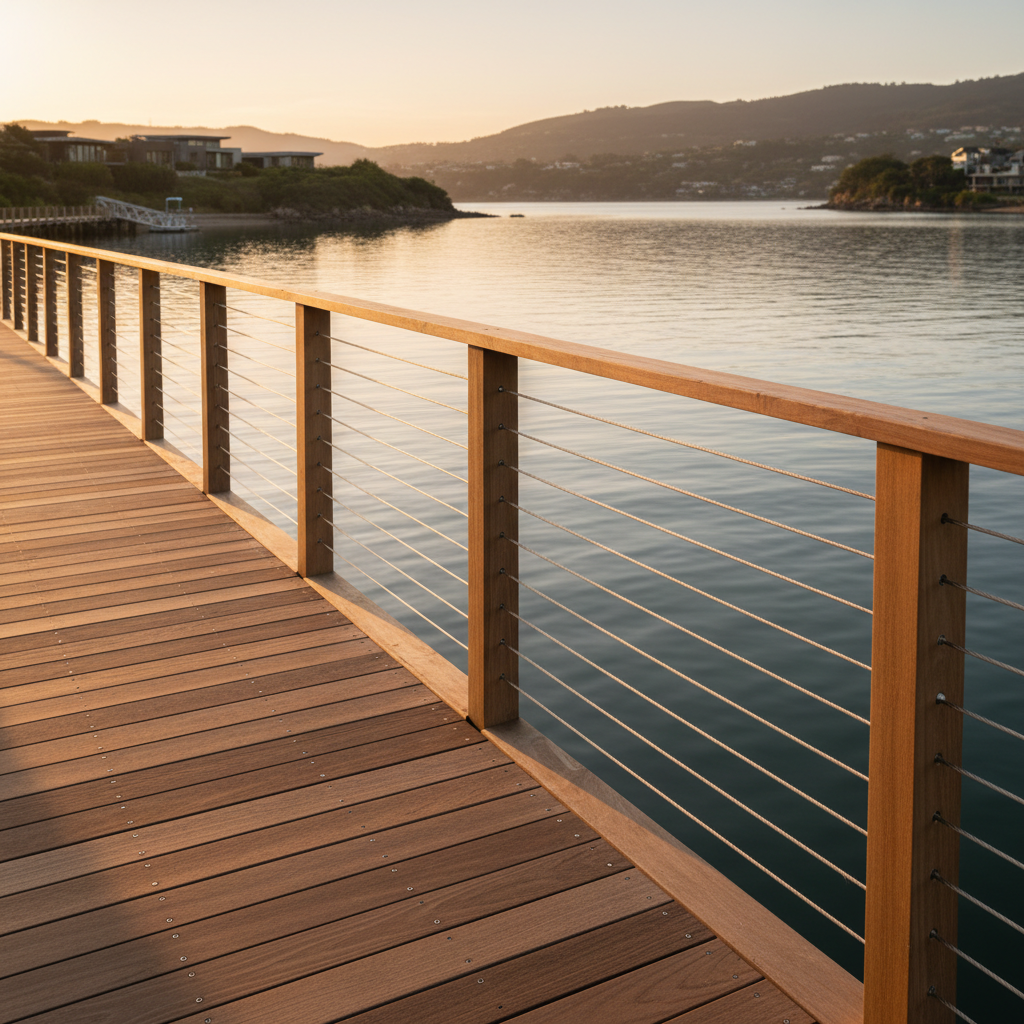

A wooden dock with stainless steel cable railing overlooking a calm bay at golden hour, showing the complete railing system in a marine environment

Cable Railing for Docks: Marine-Grade Hardware Guide

March 15, 2026

Summary

Waterfront docks represent one of the most demanding environments for architectural hardware due to constant exposure to salt spray, high humidity, and dynamic wave action. For long-term structural integrity and aesthetic clarity, T316 marine-grade stainless steel is the industry standard, offering superior resistance to chloride-induced pitting compared to standard T304 alloys. This guide details the technical requirements for dock-side installations, including the role of molybdenum in corrosion resistance, strategies for managing wave-induced tension loss, and protocols for preventing galvanic corrosion when integrating with aluminum framing. By adhering to ASTM standards and implementing a rigorous maintenance schedule, homeowners can ensure their railing remains safe and visually unobstructed for decades.

A wooden dock with stainless steel cable railing overlooking a calm bay at golden hour, showing the complete railing system in a marine environment

Key takeaways

Material Priority: Always specify T316 stainless steel for any hardware within 5 miles of saltwater to prevent rapid pitting and structural failure.
Dynamic Loading: Account for dock movement and wave vibration by using high-quality tensioners and performing monthly tension checks.
Galvanic Protection: Use isolation washers or Tef-Gel when mounting stainless steel hardware to aluminum dock frames to prevent accelerated corrosion.
Maintenance Routine: Implement a quarterly freshwater rinse and annual passivation check to maintain the protective chromium oxide layer.
Safety Compliance: Ensure all installations meet IRC standards, specifically the 4-inch sphere rule and proper tensioning to prevent cable deflection.

Why Marine-Grade T316 is Non-Negotiable for Docks

When designing a railing system for a dock or marina, the primary adversary is chloride. Saltwater environments are classified under ISO 9223 as C5 (Very High) or CX (Extreme) corrosivity categories. In these zones, standard stainless steel alloys like T304, which perform admirably in inland applications, will often show signs of "tea staining" or pitting within months. This is not merely an aesthetic issue; pitting can lead to stress corrosion cracking, compromising the structural safety of the entire railing system.

The fundamental difference lies in the chemical composition of the steel. T316 stainless steel contains 2-3% molybdenum, an element that significantly enhances the stability of the passive chromium oxide layer. This layer is what protects the steel from "pitting," where chloride ions penetrate the surface and create deep, localized cavities. For a deeper dive into the metallurgical science behind these alloys, we recommend reviewing the marine-grade stainless steel standards for cable railing which provides a technical analysis of how molybdenum prevents chloride-induced failure in coastal zones.

Logic Summary: This recommendation is based on the ASTM A240 standard for chromium and chromium-nickel stainless steel. T316 is the baseline for marine environments because T304 lacks the molybdenum necessary to resist chloride pitting. In "splash zones" where hardware is directly hit by waves, even higher grades like 2205 duplex may be considered, but T316 remains the standard for residential dock railings.

Understanding the Science: Pitting and Molybdenum

Pitting corrosion is particularly insidious because it is highly localized. A cable may appear perfectly fine on the surface, while microscopic pits are hollowing out the interior of the wire strands or the threads of a tensioner. This is why a comparison of 304 vs 316 stainless steel for marine environments is essential for any homeowner planning a waterfront project.

The Pitting Resistance Equivalent Number (PREN) is a helpful heuristic for evaluating materials. T304 typically has a PREN of around 18-20, while T316 ranges from 23-26. In marine environments, a PREN above 23 is generally considered the minimum threshold for acceptable performance. When selecting your T316 marine-grade stainless steel wire rope, ensure the manufacturer provides material test reports (MTRs) verifying the molybdenum content.

Overcoming Installation Challenges in High-Corrosivity Zones

Installing cable railing on a dock presents unique challenges that differ from a standard backyard deck. The proximity to the water line means the hardware is constantly subjected to a "micro-climate" of high humidity and salt aerosols.

One often-overlooked factor is the "splash zone" versus the "atmospheric zone." Hardware located within 3 feet of the high-tide line (the splash zone) will accumulate salt much faster than hardware at the top of a transition ramp. For these high-exposure areas, using T316 marine-grade turnbuckle and toggle sets with closed-body designs can help minimize the surface area where salt can collect.

Close-up detail of marine-grade stainless steel cable railing hardware showing turnbuckle tensioner, cable clamps, and post fittings with corrosion-resistant finish

Hardware Selection Checklist for Docks

Component	Requirement	Why?
Cable	1/8" or 3/16" T316	Balance of visibility and strength.
Tensioners	Swage-style T316	Eliminates crevices where salt can hide.
Posts	T316 or Powder-Coated Aluminum	Resistance to salt spray and structural rigidity.
Fasteners	T316 Stainless Steel	Prevents galvanic corrosion with posts.
Protection	Passivation Fluid / Tef-Gel	Maintains the passive layer and prevents seizing.

Managing Wave-Induced Tension and Dynamic Loading

Unlike a static deck attached to a house, a dock is a dynamic structure. It moves with the tides, vibrates with wave action, and shifts under the weight of moored vessels. This constant motion can lead to "work hardening" of the stainless steel cables and, more commonly, a gradual loss of tension in the railing system.

To combat wave-induced tension loss, it is critical to use high-quality tensioning hardware that can be easily adjusted. We recommend a complete selection of 1/8" cable railing hardware that includes robust turnbuckles designed for frequent re-tensioning. During the first year of installation, tension should be checked monthly. As the cables settle, this can be moved to a quarterly schedule.

Logic Summary: Dynamic loading assumptions: We assume a standard residential dock with moderate wave exposure. In extreme high-energy environments (open ocean fronts), cable railing may require specialized dampeners or higher-diameter cables to prevent fatigue failure.

Preventing Galvanic Corrosion in Mixed-Material Systems

A significant "SERP gap" in many online guides is the failure to address galvanic corrosion. Many modern docks use aluminum frames or posts for their lightweight and rust-resistant properties. However, when you mount stainless steel hardware directly to aluminum in a saltwater environment, you create a galvanic cell. The aluminum (the more anodic metal) will sacrifice itself to protect the stainless steel, leading to rapid "white rust" and structural weakening of the aluminum post.

To prevent this, you must isolate the two metals. Use nylon or EPDM rubber washers between the stainless steel fittings and the aluminum posts. Additionally, applying a non-conductive grease like Tef-Gel to the threads of your fasteners can prevent both galvanic corrosion and "galling" (the cold-welding of stainless threads).

Maintenance Protocols for 2026 Coastal Environments

Even the highest grade of T316 stainless steel requires maintenance in a marine environment. The goal of maintenance is to remove accumulated salt and allow the steel to "breathe"—a process known as re-passivation. When salt sits on the surface, it blocks oxygen from reaching the chromium, preventing the protective oxide layer from self-healing.

For maintaining cable railing in coastal conditions, follow this 2026-standard protocol:

Freshwater Rinse: Spray down the entire railing system with fresh water at least once a month (more often in high-wind/high-spray weeks).
Mild Cleaning: Use a pH-neutral soap and a soft microfiber cloth to remove stubborn salt crusts. Avoid abrasive pads or steel wool, which can embed carbon steel particles and cause rust.
Passivation Check: Once a year, use a "ferroxyl test" or a simple copper sulfate swab to check for free iron on the surface. If iron is present, apply a citric-acid-based passivation gel (compliant with ASTM A967) to restore the surface.

FAQ

Can I use T304 stainless steel on a dock if I paint it? While painting or powder coating T304 provides an initial barrier, any scratch or chip in the coating will immediately expose the vulnerable steel to chloride attack. In a marine environment, the salt will eventually get under the coating, leading to "filiform corrosion" that is difficult to stop. For docks, T316 is the only reliable choice regardless of the finish.

How tight should the cables be on a dock railing? Cables should be tensioned to approximately 200-300 lbs of force. This ensures that the cable does not deflect more than 4 inches when a 50 lb weight is applied, meeting the standard International Residential Code (IRC) requirements. On a moving dock, you may need to check this tension more frequently than on a land-based deck.

What is the "4-inch sphere rule" for dock railings? The 4-inch sphere rule is a safety standard requiring that no opening in the railing (including the space between cables) is large enough for a 4-inch diameter sphere to pass through. This is designed to prevent small children from slipping through the railing. Proper tensioning is key to maintaining this gap under load.

Do I need a top rail for my dock cable railing? Yes, a top rail is structurally necessary to take the compressive load generated by the tensioned cables. Without a rigid top rail, the end posts will bow inward over time, causing the cables to sag. For marine environments, we recommend a T316 stainless steel or a heavy-duty aluminum top rail.

How do I clean rust spots if they appear on my T316 hardware? If you see brown spots, it is likely "tea staining"—surface contamination rather than structural rust. Clean the area with a specialized stainless steel cleaner and then apply a passivation treatment. If the pitting is deep, the hardware may need to be replaced to ensure safety.

Is cable railing legal for docks in all coastal areas? Most jurisdictions follow the IRC or IBC, which allow cable railing as long as it meets height and spacing requirements. However, some local coastal commissions have specific aesthetic or safety guidelines. Always check with your local building department before starting a project.
