Summary
Corner posts represent the most critical structural junction in any cable railing system, acting as the primary anchor point for multi-directional tension forces. Successfully navigating a 90-degree turn requires balancing aesthetic preferences with rigorous engineering principles to prevent post deflection and ensure long-term safety. Whether you opt for a single-post configuration with offset hardware or a more robust double-post layout, understanding the cumulative load—often exceeding 2,000 pounds of force—is essential for a code-compliant installation that resists sagging and structural failure over time.
Key takeaways
- Cumulative Tension Management: A standard 10-cable run can exert over 2,500 lbs of force on a corner post; structural reinforcement or double-post layouts are often necessary to handle this load.
- Single vs. Double Post Selection: Single posts offer a minimalist look but require specialized offset hardware, while double posts simplify tensioning by treating the corner as two separate end-runs.
- Code Compliance (IRC R312): The 4-inch sphere rule applies to the maximum opening under load, meaning cables must be tensioned to limit deflection when a 200 lb force is applied.
- Hardware Precision: Utilizing specialized components like T-lock terminals or angled turnbuckles prevents cable interference and ensures uniform tension distribution across the corner.
- Material Integrity: For coastal or high-load environments, T316 marine-grade stainless steel is the industry standard for preventing chloride-induced pitting and maintaining structural strength.
The Engineering Challenge: Understanding Cumulative Tension at Corners
When designing a cable railing system, many DIYers underestimate the sheer physical force concentrated at the corner posts. Unlike intermediate posts, which primarily serve as spacers to maintain cable alignment, corner posts act as terminal anchors. Each individual 1/8-inch stainless steel cable is typically tensioned to approximately 200 to 300 pounds. In a standard residential setup with 10 cables, the corner post must withstand a cumulative lateral pull of 2,000 to 3,000 pounds.
This force is not just a static number; it is a constant stressor that can lead to "post creep" or permanent deflection if the post is not properly anchored or sized. When a corner post bends even a fraction of an inch, the tension across the entire run drops, leading to unsightly cable sag and potential safety violations. To mitigate this, professionals often recommend using reinforced steel posts or larger wood members (such as 6x6 posts) when a single-post corner is desired. Avoiding common installation mistakes starts with respecting the physics of tension.
Logic Summary: These tension estimates assume a standard 36-inch or 42-inch guardrail height with 3-inch cable spacing. Actual forces may vary based on cable diameter and the specific tensioning hardware used. Reinforcement is recommended whenever the cumulative force exceeds the yield strength of the post material.
Single vs. Double Corner Posts: Choosing the Right Configuration
Choosing between a single or double post configuration is the most significant layout decision you will make. This choice impacts both the visual "weight" of your railing and the complexity of the hardware installation.
The Single Post Configuration
A single corner post provides a clean, unobstructed view, which is often the primary reason homeowners choose cable railing. However, it introduces a technical challenge: the cables from two different directions must pass through or terminate in the same post without hitting each other. This is typically solved using an "offset" drilling pattern, where one run of cables is drilled slightly higher or lower than the other.
The Double Post Configuration

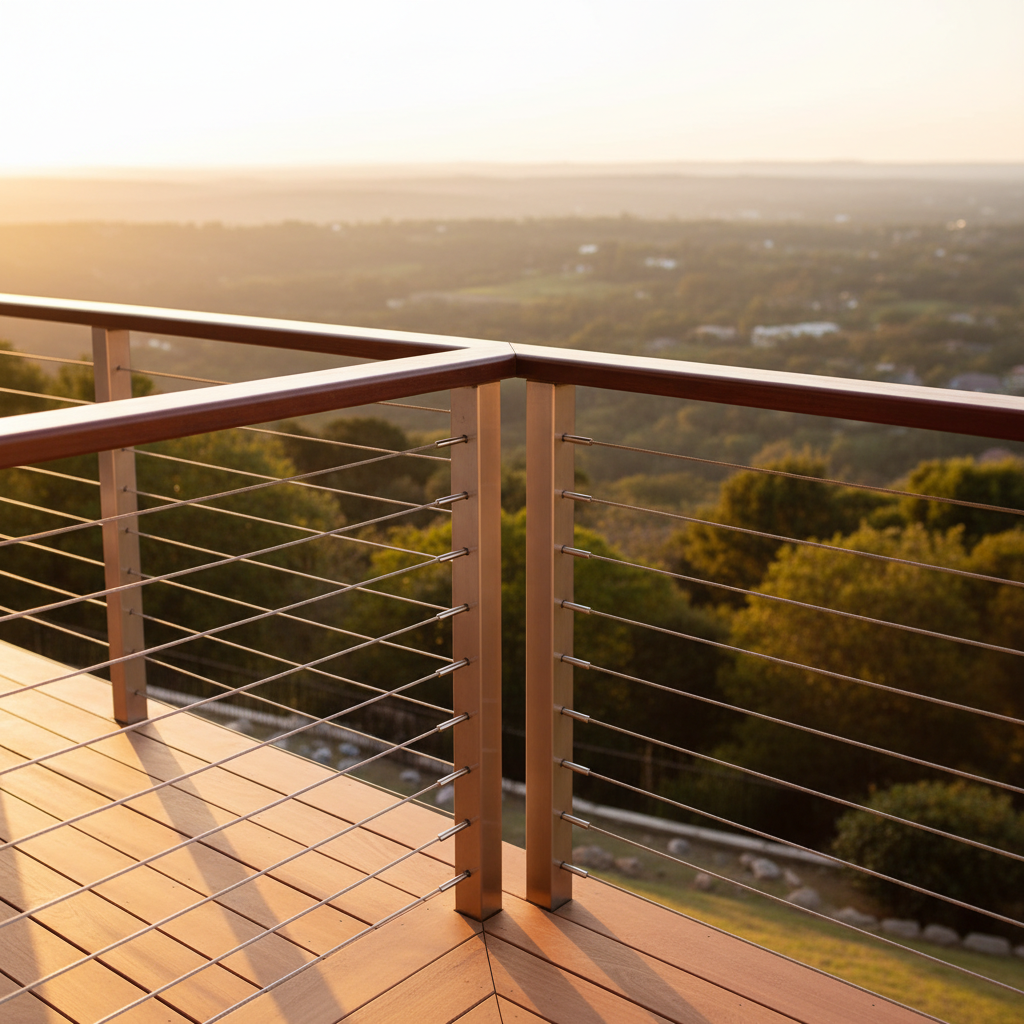

A double post layout involves placing two posts near the corner, usually 4 to 8 inches apart. This configuration effectively turns the corner into two separate straight runs. Each run terminates at its own post, allowing the cables to pass through the corner area without interference. While this takes up more visual space, it is structurally superior for long runs because it distributes the tension across two anchors rather than one. For those looking for a simplified DIY experience, an Express Stainless Steel Corner Railing Kit often utilizes pre-configured layouts to take the guesswork out of post placement.
| Feature | Single Corner Post | Double Corner Post |
|---|---|---|
| Aesthetics | Minimalist, maximize views | More "framed" look |
| Structural Strength | High stress on one post | Tension distributed across two posts |
| Hardware Complexity | Requires offset drilling/special fittings | Standard termination hardware |
| DIY Difficulty | Moderate to High (precision drilling) | Low to Moderate |
| Cost | Lower (fewer posts) | Higher (extra post and hardware) |
IRC Code Compliance and the 4-Inch Sphere Rule
Building codes are not just suggestions; they are the baseline for safety. The International Residential Code (IRC) R312.1.2 mandates that guards must be at least 36 inches high for residential decks (42 inches for commercial). However, the most critical rule for cable railing is the "4-inch sphere rule." This rule states that a 4-inch sphere must not be able to pass through any opening in the railing.
A common misconception is that spacing your cables at 3 inches is enough to pass inspection. In reality, inspectors often perform a "deflection test," applying a specific force to the cables to see if they can be pushed apart enough to allow a 4-inch sphere through. This is why understanding building codes is vital. If your corner post deflects under the cumulative tension, the cables will lose their tautness, and the system will fail the deflection test.
For a deeper dive into the technical requirements, the Marine-Grade Stainless Steel Standards for Residential Cable Railing: A Technical Whitepaper provides an exhaustive look at how material science and IRC standards intersect, specifically addressing the 4-inch sphere rule and the necessity of proper tensioning to maintain compliance in various environments.
Specialized Hardware for 90-Degree Layouts
To solve the interference issues inherent in corner layouts, specialized hardware is often required. Standard turnbuckles may be too bulky for a single-post corner where space is limited.
- T-Lock Terminals: These are designed to sit flush against the post, making them ideal for corner applications where you need to maximize the available space inside or outside the post. Using a T Lock Terminal for Corner Posts allows for a clean termination that doesn't interfere with the perpendicular run.
- Offset Drilling Templates: If you are drilling your own posts, a template is essential. By offsetting the holes by approximately 1/4 to 1/2 inch vertically, you ensure that the cables passing through the post from one side do not collide with the hardware from the other side.
- Tensioning Kits: High-quality tensioners, such as the Senmit Lag Screw Swage Turnbuckle Kit, provide the mechanical advantage needed to reach the required tension without stripping threads or damaging the post.
Logic Summary: Hardware selection should be based on the post material (wood vs. metal) and the desired aesthetic. Rule of thumb: Always use T316 stainless steel hardware to match the cable material and prevent galvanic corrosion.
Troubleshooting Tension Loss at Corners
Even a perfectly installed system may experience tension loss over time. This is particularly common at corners where the forces are highest. If you notice your cables are sagging, follow this diagnostic checklist:
- Check for Post Deflection: Look down the line of your railing. Is the corner post leaning inward? If so, the anchoring at the base may be loose, or the post itself may be undersized for the load.
- Inspect Terminal Fittings: Ensure that the swaged ends haven't slipped and that the threads on your turnbuckles are still secure.
- Evaluate Thermal Expansion: Stainless steel expands and contracts with temperature changes. A system tensioned in the heat of summer may become overly tight in winter, while a system installed in winter may sag in the summer.
- Re-tensioning Schedule: It is normal for new cables to "stretch" slightly (constructional stretch) during the first few months. Plan to re-tighten your system 3-6 months after installation.
For more detailed steps on maintaining a taut system, refer to our comprehensive cable railing sag guide, which covers why sag happens and how to keep your lines tight year-round.
FAQ
Can I use a 4x4 wood post for a single-post corner? While a 4x4 wood post is common, it may not be strong enough to handle the cumulative tension of 10+ cables over long spans without significant deflection. For single-post corners, we recommend using a 6x6 wood post or a reinforced steel post to ensure structural integrity and code compliance. If you must use a 4x4, consider shorter spans or a double-post configuration to distribute the load.
How do I prevent the cables from hitting each other inside a single corner post? The most effective method is "offset drilling." By staggering the height of the holes for the two perpendicular runs by about 1/2 inch, the cables can pass through or terminate within the post at different levels. This prevents the hardware from colliding and allows for a clean 90-degree turn.
What is the recommended torque for tensioning cable railing? While specific torque values can vary by manufacturer, a general rule of thumb for 1/8-inch cable is to aim for approximately 50 to 70 inch-pounds of torque. However, the ultimate goal is to meet the "4-inch sphere rule" deflection test. Using a tension gauge is the most accurate way to ensure all cables are uniform and safe.
Do I need a top rail for my corner posts? Yes, a structural top rail is absolutely necessary. The top rail acts as a compression member that resists the inward pull of the cables. Without a rigid top rail, the tension from the cables would pull the corner posts toward each other, causing the entire system to collapse or sag significantly.
Is it better to terminate the cables at the corner or run them through? Running a single cable through a corner (using protector sleeves) is possible for 45-degree turns, but for 90-degree turns, it is generally better to terminate the cables. Terminating at the corner allows you to tension each run independently, which is critical for maintaining even tension across the entire perimeter of your deck.
How often should I check the tension on my corner posts? We recommend a formal inspection once a year, ideally in the spring before the heavy-use season. Check for any signs of post movement, loose hardware, or cable sag. For coastal properties, more frequent checks (every 6 months) are advised to ensure that salt spray hasn't affected the hardware's moving parts.
