When planning a cable railing upgrade or new deck build, the mounting method you select for the posts—fascia mount on the rim joist or surface mount on top of the deck boards—directly affects structural performance, usable space, installation effort, and final appearance. Neither option is universally superior; the right choice depends on your deck's framing condition, whether it's a new build or retrofit, local code requirements, and your priorities around deck space versus simplicity.

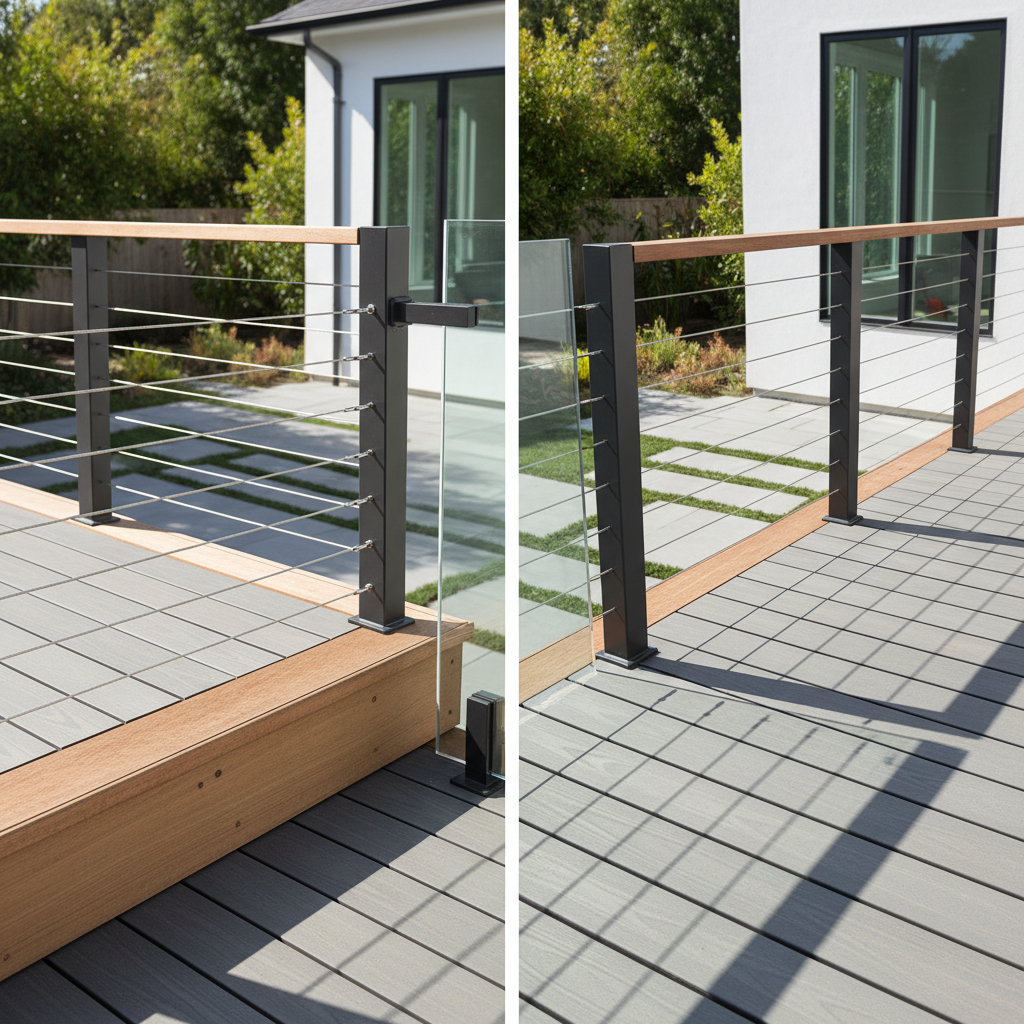

Fascia mount and surface mount represent two distinct ways to secure railing posts. Fascia mount attaches posts to the vertical face of the rim joist or ledger, keeping the posts outside the deck surface. Surface mount places posts directly on top of the deck boards or framing, with the base plate sitting on the walking surface. These approaches are not interchangeable because they create different load paths and require specific hardware geometries.
Understanding the Structural Differences
Deck guard and post connections must transmit loads safely into the framing. According to structural principles from the American Wood Council, mounting location affects the load path and should be selected based on structural capacity rather than appearance alone. Fascia mount relies heavily on the rim joist or ledger for lateral and vertical support. This can work well in new construction where blocking and flashing can be planned, but it increases sensitivity to moisture management at the ledger connection.
Surface mount typically distributes loads more directly through the deck surface into joists or blocking below. It often feels more straightforward for retrofits because you can reinforce from above or below without depending solely on the edge framing. However, it requires adequate deck width because the post base occupies walking space.
Cable railing systems must also satisfy guard height and opening size rules under the local adopted building code. As noted in resources from the International Code Council, cable railing must be designed to meet applicable guard-height and opening-size requirements, subject to the local adopted code. Post spacing, attachment strength, and cable tensioning all play roles in passing inspection.
Fascia Mount Cable Railing: Pros, Cons, and Best Uses
Fascia mount systems preserve the full deck surface area because posts sit outside the perimeter. This makes them popular for maximizing usable space and creating clean sightlines with minimal visual obstruction from inside the deck. Many homeowners choose fascia mount when retrofitting an existing deck where every inch of walking area matters.
Advantages include:
- Maximizes usable deck width and furniture placement near the edge
- Cleaner modern aesthetic with posts aligned to the deck's outer face
- Often preferred for stairs and balconies where surface space is limited
Drawbacks include:
- Higher dependence on rim joist or ledger integrity and proper blocking
- More complex moisture protection details to prevent rot at the attachment point
- Typically requires more precise alignment and may need specialized fascia brackets
Fascia mount is often preferable in space-constrained layouts or when the deck edge framing is sound and well-blocked. For guidance on reinforcement, see our article on the importance of blocking to reinforce posts under the deck.
If you opt for fascia mount, verify the rim joist condition carefully. Improper attachment here can lead to deflection or failed inspections. Senmit offers dedicated fascia mount cable railing posts in stainless steel and aluminum designed specifically for this application, along with complete fascia mount DIY kits.
Surface Mount Cable Railing: Pros, Cons, and Best Uses
Surface mount places the post bases on top of the deck, making the attachment more direct into the framing below. This approach is frequently easier for DIYers because it allows straightforward access for drilling and bolting from above, and it can be more forgiving if the rim joist condition is questionable.
Advantages include:
- Generally simpler installation with more accessible attachment points
- Easier to add blocking or reinforcement from above or below
- Often more tolerant in retrofit situations where edge conditions vary
Drawbacks include:
- Reduces usable deck space by the width of the post bases (typically 2–4 inches per side)
- Posts protrude into the walking area, which can affect furniture placement and traffic flow
- May require careful sealing around the base plate to prevent water intrusion into the deck boards
Surface mount tends to suit new builds where deck width is generous and for homeowners prioritizing installation simplicity. Explore our surface mount stainless steel posts or surface mount aluminum options to match your design.
Key Tradeoffs and Hidden Costs
The biggest oversight many make is assuming the two mounting styles are interchangeable. In reality, fascia mount shifts more structural demand onto the rim joist and ledger area, making it sensitive to moisture intrusion and framing quality. Surface mount consumes deck space but often provides a more direct and forgiving load path.
Moisture management is critical for attached decks. Ledger and rim-joist connections are known failure points if flashing and sealing are inadequate. Fascia mount installations require extra attention to these details to avoid long-term durability issues.
Installation complexity also differs. Fascia mount often involves more careful alignment and may require working on the vertical face, while surface mount allows top-down access but demands precise post placement on the deck surface.
Comparison Chart: Fascia Mount vs Surface Mount Tradeoffs
Fascia Mount vs Surface Mount: Decision Tradeoffs
Relative decision factors for choosing a cable railing mount type.
View chart data
| Series | Structural fit | Space preservation | Installation simplicity | Moisture risk | Retrofit suitability | New-build suitability |
|---|---|---|---|---|---|---|
| Fascia mount | 4.0 | 5.0 | 2.0 | 3.0 | 2.0 | 4.0 |
| Surface mount | 3.0 | 2.0 | 4.0 | 4.0 | 4.0 | 3.0 |
Illustrative 1-5 relative scores derived from the provided writer_evidence and reverse_recommendation notes: load-path and rim-joist considerations, space preservation vs consumption, installation complexity, moisture-management risk, non-interchangeable mounts, and IRC code awareness. These are bounded qualitative scores, not measured performance values.
This radar chart uses relative 1–5 heuristic scores to illustrate tradeoffs. Fascia mount scores higher on space preservation and new-build suitability when framing is planned carefully, while surface mount generally rates better on installation simplicity and retrofit scenarios. These are illustrative comparisons only—your specific deck conditions will determine the final fit.
How to Choose the Right Mounting Method for Your Project
Use this decision framework to evaluate your situation:
Choose fascia mount if:
- You want to maximize every inch of deck surface
- Your rim joist and ledger are in excellent condition with proper flashing
- You are comfortable with detailed moisture protection and precise alignment
- The project is new construction where blocking can be added during framing
Choose surface mount if:
- Installation simplicity and faster DIY progress are priorities
- You have sufficient deck width to spare for post bases
- The rim joist condition is uncertain or difficult to access
- You are retrofitting an existing deck without major structural modifications
Always check local building codes before starting. Our comprehensive guide to cable railing code requirements covers the 4-inch sphere rule, post spacing, and tensioning standards that apply in 2026.
For step-by-step instructions, review the ultimate DIY cable railing guide or the pro contractor guide to efficient installation.
Installation Tips to Avoid Common Mistakes
Regardless of mounting style, proper post attachment is essential for safety and code compliance. Use adequate blocking for lateral support, follow manufacturer torque specifications for fasteners, and tension cables correctly to minimize deflection.
Fascia installations particularly benefit from stainless steel or aluminum posts designed for side mounting, such as the Senmit fascia mount stainless steel post. Surface mount projects often use square posts like the Senmit 2x2 matte black surface mount post.
Complete kits simplify the process. Consider the black fascia mount all-in-one kit or the surface mount equivalent depending on your decision.
Our general how to install cable railing guide provides tool lists, tensioning tips, and safety advice for both approaches.
Important Safety and Comfort Note: This article discusses setup and structural considerations for cable railing systems to help with planning and purchasing decisions. It does not constitute structural engineering advice, building code certification, or construction guidance. Deck safety depends on proper local code compliance, professional inspection where required, and correct installation. If your deck has existing structural concerns, rot, or you experience any uncertainty about load capacity, consult a qualified contractor, engineer, or building inspector before proceeding.
Final Recommendation
The best mounting method for your deck depends heavily on the specific conditions of your project. Fascia mount excels at preserving space and delivering a sleek look when the rim joist is suitable, while surface mount often provides an easier, more forgiving path for many DIYers and retrofits. Evaluate your framing, space needs, skill level, and local codes carefully before choosing.
Whichever direction you take, Senmit's modular hardware is engineered to support both styles with durable stainless steel and aluminum components. Take time to measure your deck, review your framing, and select compatible posts and kits. With the right preparation, you can achieve a safe, modern cable railing system that enhances both safety and style for years to come.
For additional planning resources, explore our top mount vs fascia mount space optimization guide.
