Summary
A successful DIY cable railing project requires a strategic blend of precise measurements, adherence to local International Residential Code (IRC) standards, and the selection of high-grade stainless steel components to ensure long-term safety and aesthetic clarity. By following a structured roadmap—from initial layout and post-spacing calculations to final tensioning with specialized hydraulic tools—homeowners can achieve a professional-grade architectural finish that maximizes views while maintaining structural integrity.
Key takeaways
- Code Compliance is Non-Negotiable: Ensure your design adheres to the 4-inch sphere rule and maintains a minimum railing height of 36 inches for residential decks (42 inches for commercial or specific local jurisdictions).
- Material Grade Matters: Use Type 316 stainless steel for any project within 10 miles of saltwater to prevent chloride-induced pitting, while Type 304 is suitable for inland, low-moisture environments.
- Post Rigidity is Critical: Cable railing exerts significant lateral force; end and corner posts must be reinforced or thicker than intermediate posts to prevent bowing under tension.
- Tensioning Precision: Achieve optimal safety by tensioning cables to approximately 20-25% of their breaking strength, typically requiring a hydraulic crimper for secure, permanent fittings.
- View Preservation: Horizontal cable systems provide the highest level of transparency, making them the preferred choice for properties with scenic landscapes or waterfront views.
Navigating the DIY Cable Railing Landscape in 2026
Modern architectural trends in 2026 continue to favor minimalism and transparency, placing cable railing at the forefront of residential deck design. For the DIY enthusiast, the transition from traditional wood pickets to sleek stainless steel wire involves more than just an aesthetic upgrade; it is an engineering project that demands attention to detail. This guide serves as your central hub for planning, designing, and executing a cable railing system that meets both safety standards and high-end design expectations.

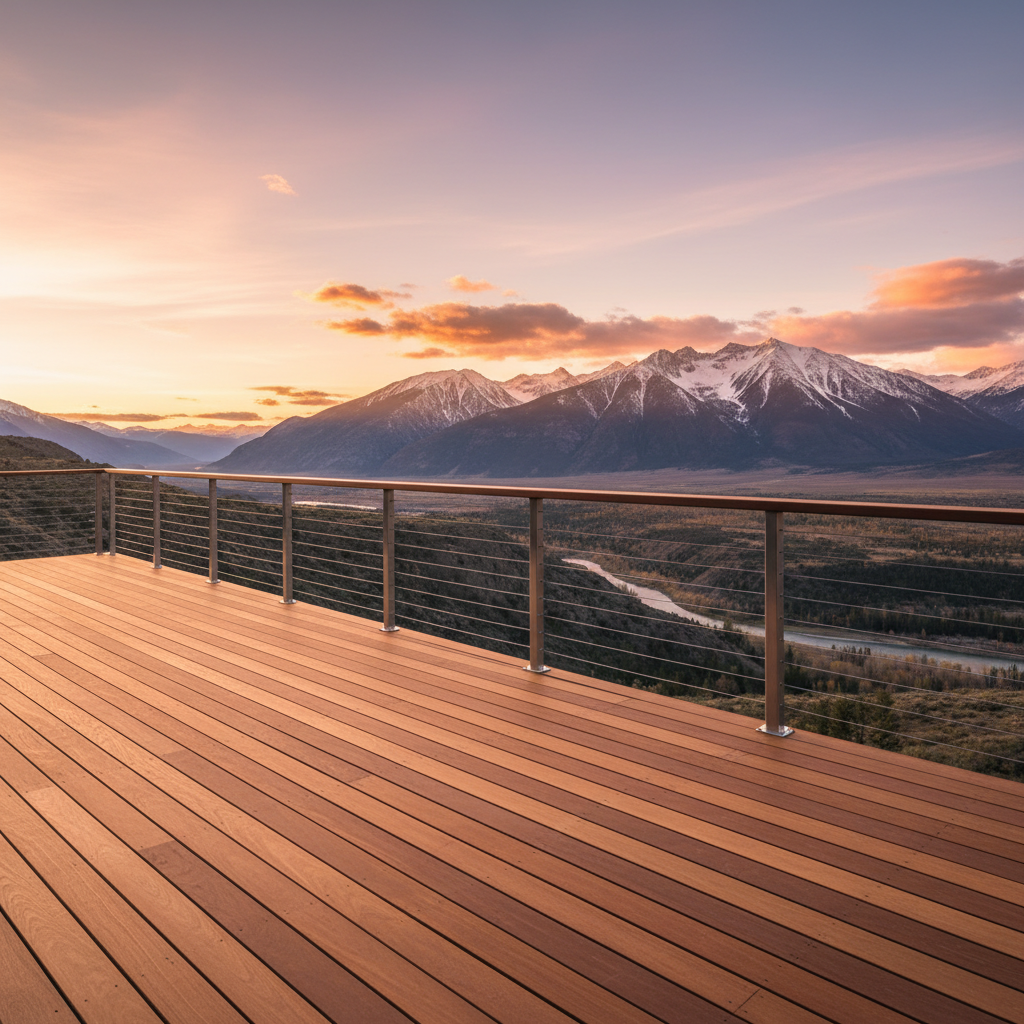

The primary appeal of cable railing lies in its "invisible" nature. Unlike bulky wooden balusters or glass panels that require frequent cleaning, thin stainless steel cables disappear into the background, allowing the surrounding environment to take center stage. However, the simplicity of the finished look belies the tension and physics at play behind the scenes. Understanding how to manage these forces is the difference between a sagging, unsafe railing and a crisp, professional installation.
How to Plan Your Cable Railing Layout and Design
Effective planning begins with a clear understanding of your site’s geometry. You must determine the total linear footage, the number of corner transitions, and the specific mounting surfaces (wood, metal, or concrete). A common mistake is failing to account for the "pull" that ten or more cables will exert on your end posts. Each cable, when properly tensioned, can exert upwards of 200 to 300 pounds of force. On a standard 36-inch high railing with 10 cables, that is nearly 3,000 pounds of cumulative tension trying to pull your end posts inward.
Before purchasing hardware, you must consult cable railing building codes to ensure your plan is legal. The most critical regulation is the "4-inch sphere rule," which dictates that a 4-inch ball must not be able to pass through any opening in the railing. Because cables are flexible, they must be spaced no more than 3 inches apart vertically to account for potential deflection under load.
Logic Summary: The 3-inch spacing recommendation is a heuristic designed to ensure that even when a force is applied to the center of a cable run, the resulting gap does not exceed the 4-inch IRC limit. This assumes intermediate posts are spaced no further than 4 feet apart.
Selecting the Right Materials: 304 vs. 316 Stainless Steel
Choosing the correct alloy is the most significant factor in the longevity of your railing. While both Type 304 and Type 316 stainless steel look identical to the naked eye, their chemical compositions offer vastly different levels of corrosion resistance. For a deep dive into the metallurgical properties and ISO 9223 corrosivity categories, refer to the Marine-Grade Stainless Steel Standards for Residential Cable Railing: A Technical Whitepaper, which provides a data-driven framework for material selection based on environmental exposure.
In short, Type 316 contains molybdenum, an element that specifically resists "pitting" caused by chlorides (salt). If you are comparing 304 vs 316 stainless steel, remember that 304 is an excellent, cost-effective choice for dry, inland areas, but 316 is mandatory for coastal or poolside applications where moisture and salt are prevalent.
| Feature | Type 304 Stainless Steel | Type 316 Stainless Steel |
|---|---|---|
| Corrosion Resistance | High (Inland/Dry) | Superior (Coastal/Marine) |
| Molybdenum Content | 0% | 2.0% - 3.0% |
| Best Use Case | Indoor stairs, inland decks | Pool decks, oceanfront, high humidity |
| Relative Cost | Baseline | ~15-25% Higher |
| Maintenance | Annual cleaning | Bi-annual rinsing in salt zones |
Budgeting for Your DIY Project: 2026 Cost Estimates
Budgeting for cable railing is often more complex than traditional materials because of the specialized hardware involved. You aren't just buying "wire"; you are investing in tensioners, terminals, and swage fittings. Current data on cable railing installation costs suggests that DIYers can save significantly on labor, which typically accounts for 40-60% of a professional quote.
Expect to pay between $30 and $75 per linear foot for high-quality DIY kits, depending on the post material and the complexity of the hardware. Hidden "invisible" hardware tends to be at the higher end of the price spectrum, while traditional turnbuckles are more budget-friendly.
Essential Tools for a Professional Finish
You cannot install a high-tension cable system with standard household pliers. To achieve a "swaged" connection—where the metal fitting is permanently compressed onto the cable—you need a hydraulic cable crimper tool. This tool applies several tons of pressure to ensure the cable never slips under tension.
Required DIY Tool Checklist:
- Hydraulic Crimper: For securing terminals and tensioners.
- Cable Cutters: Specifically designed for wire rope to prevent fraying.
- Tension Gauge: To verify that cables meet the 200-300 lb requirement.
- Power Drill & High-Quality Bits: Stainless steel is harder than wood; cobalt bits are recommended for metal posts.
- Level and String Line: To ensure perfect post alignment before drilling.
Step-by-Step Cable Railing Installation Guide
Once your posts are securely mounted and your tools are ready, the installation follows a logical sequence. While a full step-by-step cable railing installation is available for detailed reference, the following phases outline the core methodology.
1. Post Preparation and Drilling
Mark your hole locations on all posts using a template to ensure perfect horizontal alignment. For wood posts, it is highly recommended to use protector sleeves (grommets) where the cable enters and exits the wood. This prevents the cable from "biting" into the wood over time, which causes tension loss.
2. Running the Cable
Thread the cable through the intermediate posts. If you are using best cable railing kits, your terminals may be pre-attached to one end. Avoid "kinking" the cable during this process, as a permanent bend in the wire rope will create a weak point and an eyesore.
3. Swaging and Tensioning
Insert the raw end of the cable into the tensioning fitting and use your hydraulic crimper to secure it. Begin tensioning from the middle cable of the run and work your way outward (up and down). This "center-out" pattern distributes the load evenly across the post and prevents the post from bowing prematurely.
Logic Summary: The center-out tensioning sequence is based on structural load distribution principles. By starting in the middle, you stabilize the post's vertical axis before applying the maximum leverage forces at the top and bottom.
Engineering Corners: Single vs. Double Post Configurations
One of the most debated topics in DIY cable railing is how to handle 90-degree corners. There are two primary methods, each with distinct trade-offs:
- The Double Post Method: This is the "gold standard" for structural integrity. By using two posts at the corner, the cables can terminate on one post and begin again on the other. This eliminates the need for cables to "turn" a corner, which reduces friction and allows for much higher tension.
- The Single Post Method: This is more aesthetic and cost-effective but requires the cable to pass through the corner post. This creates a "bind" point. If you choose this route, you must use offset holes or specialized corner blocks to ensure the cable doesn't saw through the post under tension.
Long-Term Maintenance and Seasonal Adjustments
Stainless steel is "low maintenance," not "no maintenance." In regions with significant temperature swings, the physical properties of both your posts and the cables will change. Wood posts may shrink in dry winters, while metal cables can slightly expand in extreme summer heat.
Seasonal Maintenance Protocol:
- Spring Inspection: Check the tension of every cable. If a cable "rings" like a guitar string when plucked, it is likely sufficient. If it feels dull or sags, give the turnbuckle a half-turn.
- Cleaning: Use a dedicated stainless steel cleaner or a mild soap and water solution. Avoid steel wool or carbon steel brushes, as they can leave behind iron particles that will rust, creating the illusion that your stainless steel is failing.
- Passivation: For coastal areas, applying a passivating solution every 2-3 years can help restore the protective chromium oxide layer on the steel's surface.
Cluster map
To further refine your project, explore these specialized guides within our design ecosystem:
| Topic | Focus Area | Resource Link |
|---|---|---|
| Material Science | 304 vs 316 Deep Dive | Read Whitepaper |
| Cost Planning | Budgeting & ROI | View Cost Guide |
| Installation | Technical Walkthrough | Installation Steps |
| Regulations | Building Codes | Code Compliance |
| Selection | Kit Comparisons | Shop Best Kits |
FAQ
How far apart should my cable railing posts be? For residential decks, intermediate posts (or cable spacers) should be spaced no more than 4 feet apart. This limitation is critical to preventing the cables from spreading apart more than 4 inches when someone leans on them, which would violate IRC safety codes. If your structural posts are further apart, you can use thin "spacer bars" to maintain cable alignment without adding the bulk of a full post.
Can I install cable railing on my existing wood deck? Yes, cable railing is highly compatible with existing wood decks, provided the wood is in good structural condition. You must ensure that your end and corner posts are 4x4 or larger and are securely tied into the deck's joist system with through-bolts or heavy-duty lag screws. Many DIYers choose to comparing 304 vs 316 stainless steel hardware specifically to match the rustic look of wood with a modern metal finish.
What is the "4-inch sphere rule" and why does it matter? The 4-inch sphere rule is a safety standard mandated by the International Residential Code (IRC) to prevent small children from slipping through or getting stuck in railing openings. In a cable system, this means that even under pressure, the cables cannot deflect enough to allow a 4-inch ball to pass through. This is why 3-inch vertical spacing and 4-foot post spacing are the industry standards.
Do I need a professional to tension the cables? No, a DIYer can easily tension cables using a turnbuckle system or a threaded terminal. The key is using a hydraulic cable crimper tool to create the initial permanent connections. Once the fittings are swaged, you simply turn the tensioning nut or the turnbuckle body to pull the cable tight. A simple tension gauge can help you verify that you've reached the recommended 200-300 lbs of force.
How do I prevent my cable railing from sagging over time? Sagging is usually caused by one of three things: inadequate initial tension, post-movement, or cable "stretch." While stainless steel wire rope has very little "constructional stretch," the posts themselves often bow inward under the immense pressure. Using sturdy end posts and reinforcing them with a top rail that acts as a compression member will keep the system rigid and prevent sagging.
Is cable railing legal in all states? While the IRC is the national standard, some local jurisdictions have specific interpretations or additional requirements (such as "climbability" restrictions, though these have been largely removed from the national IRC). Always check with your local building department before starting your project to ensure your specific design meets local ordinances.
