Summary
Choosing between horizontal and vertical cable railing involves balancing aesthetic preferences with structural requirements and local building code interpretations. Horizontal cable railing is the hallmark of modern deck design, offering an expansive, "infinite" view and a simpler installation process for DIY enthusiasts, though it requires careful consideration of the "ladder effect" in specific jurisdictions. Conversely, vertical cable railing provides a more traditional silhouette that mimics classic balusters while utilizing modern materials, often serving as a safer alternative in areas with strict climbing-related regulations. Both systems rely on high-quality stainless steel and precise tensioning to ensure long-term safety and durability.
Key takeaways
- Aesthetic Impact: Horizontal cables emphasize width and provide the most unobstructed views, while vertical cables offer a more structured, traditional appearance.
- Code Compliance: Vertical systems naturally satisfy "ladder effect" concerns, whereas horizontal systems may require specific jurisdictional approval despite not being explicitly banned by the IRC.
- Structural Needs: Vertical cable railing requires a robust top and bottom rail to support tension, while horizontal systems rely on the strength of the end posts.
- Installation Effort: Horizontal layouts are generally faster and more cost-effective to install, requiring fewer hardware components per linear foot compared to vertical systems.

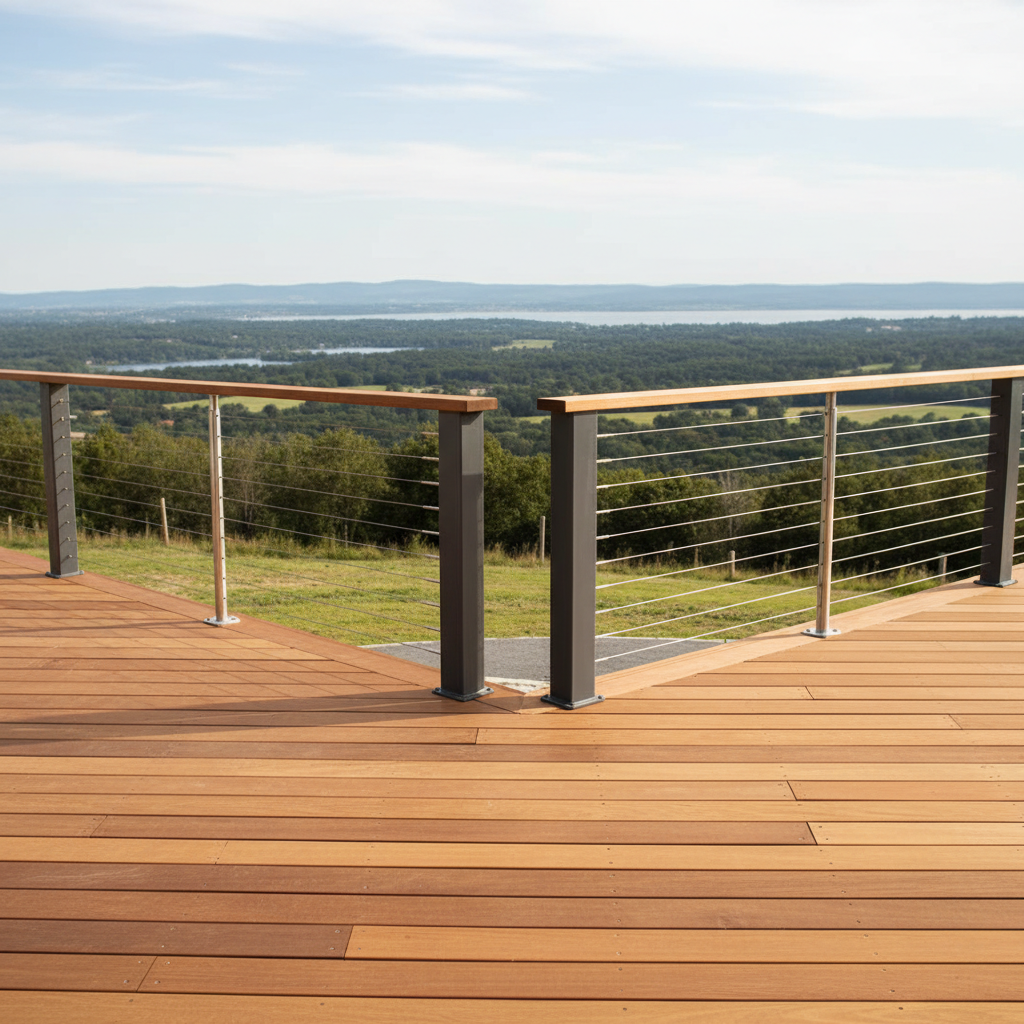

Understanding the Visual Geometry of Modern Decks
The transition from traditional wood balusters to cable railing has fundamentally changed how we perceive outdoor living spaces. In 2026, the focus has shifted from merely "replacing" old railings to using cable orientation as a primary design element. The geometry of your railing does more than just provide safety; it directs the eye. Horizontal lines tend to make a space feel wider and more grounded, drawing the gaze outward toward the horizon. This is why horizontal cable railing is the go-to choice for properties with significant views, such as coastal homes or mountain retreats.
Vertical cable railing, on the other hand, creates a sense of height and formality. It bridges the gap between the classic look of vertical pickets and the sleek, industrial feel of stainless steel. For many homeowners, the choice is driven by the architectural style of the home. A mid-century modern or ultra-minimalist home often calls for the clean, repetitive lines of horizontal cables. A more traditional or transitional home might benefit from the vertical orientation, which provides a familiar rhythm while still offering the transparency that only cable can provide.
Logic Summary: This design guidance assumes that the primary goal is maximizing visual transparency. While both orientations achieve this better than wood or glass, the "best" fit is subjective and should align with the home's existing architectural lines.
Horizontal Cable Railing: The Modern Standard for Unobstructed Views
Horizontal cable railing has become the industry standard for modern deck design because of its ability to "disappear" into the background. By running the cables parallel to the floor, the human eye easily skips over the thin 1/8" or 3/16" stainless steel lines, focusing instead on the scenery beyond. This orientation is particularly effective on large decks where long runs of cable can be achieved with minimal hardware.
One of the primary advantages of horizontal systems is the efficiency of the hardware. A single run of cable can span up to 40 or 50 feet with the right tensioners, passing through intermediate posts that serve only as guides. This reduces the total number of fittings required, which can significantly lower the overall material cost. However, the structural integrity of this system rests almost entirely on the end posts. These posts must be able to withstand hundreds of pounds of cumulative tension without bowing or failing.
When planning a horizontal layout, homeowners must also consider the spacing between cables. To meet the universal 4-inch sphere rule—which prevents a small child from passing through the railing—cables are typically spaced 3 inches apart. This accounts for the slight deflection that occurs when a force is applied to the cable. Ensuring proper tension is vital; a sagging cable is not just an aesthetic issue but a safety violation. For a deeper look at material durability, our technical whitepaper on marine-grade stainless steel details how 316-grade steel maintains its integrity under the high-tension loads required for these systems.
Vertical Cable Railing: Merging Traditional Safety with Modern Materials
While horizontal railing dominates the "modern" market, vertical cable railing is seeing a resurgence in 2026, particularly in urban environments and jurisdictions with unique safety requirements. Vertical systems offer a distinct look that many find more substantial and secure. Instead of long horizontal runs, the cables are installed vertically between a top rail and a bottom rail.
The structural requirements for vertical cable railing are significantly different from horizontal systems. Because the cables pull the top and bottom rails toward each other, these rails must be rigid enough to resist the tension. This usually necessitates a "frame" approach, where the railing is built as a series of panels. While this adds to the complexity of the build, it also provides a very sturdy feel. Vertical systems are often preferred for stairs, as the vertical lines naturally follow the pitch of the staircase without the need for complex angled drilling that horizontal systems require.
From a design perspective, vertical cable railing vs. horizontal is often a debate about "visual weight." Vertical cables feel more like a traditional barrier, which can be comforting for homeowners who feel that horizontal cables look too "climbable." This orientation also eliminates the "ladder effect" concern entirely, making it a "fail-safe" choice for passing building inspections in any region.
Is Horizontal Cable Railing Safe for Kids? The "Ladder Effect" Debate
The most common question from parents is whether horizontal cable railing is safe for children. The concern is the "ladder effect"—the idea that horizontal cables provide a convenient climbing surface for curious toddlers. Historically, some building codes (such as the 2000 IRC) included language prohibiting "climbing-friendly" designs. However, this language was removed in subsequent versions of the International Residential Code (IRC) after studies showed that children are just as likely to climb vertical balusters or other deck elements.
Despite the IRC's current stance, some local jurisdictions still enforce their own "no-climb" rules. It is essential to check with your local building department before committing to a horizontal design. In practice, the safety of a cable railing system—regardless of orientation—depends on two factors: cable spacing and tension. If the cables are spaced correctly (typically 3 inches) and tensioned to the manufacturer's specifications, they do not provide the stable "rungs" that a child would need to climb effectively.
Logic Summary: The "ladder effect" is largely a jurisdictional interpretation rather than a universal safety hazard. We recommend horizontal systems for most residential applications, but vertical systems are the safer bet if your local inspector is known for strict "no-climb" interpretations.
Structural Engineering and Tension Requirements
Whether you choose horizontal or vertical, the "secret sauce" of a safe cable railing system is tension. Each cable in a typical residential system is tensioned to approximately 200 to 300 pounds. In a horizontal system with 10 to 12 runs, a single end post may be supporting over 3,000 pounds of force. This is why structural blocking and heavy-duty posts are non-negotiable.
Vertical systems distribute these loads differently. The tension is applied between the top and bottom rails. If the rails are not sufficiently rigid, they will "smile" or bow inward over time. This is why most vertical systems utilize a metal frame or a very thick wood top rail with a matching bottom support. Understanding these loads is critical for preventing cable railing sag, which can compromise both the look and the safety of the deck.
Tension Distribution Comparison
| Feature | Horizontal Orientation | Vertical Orientation |
|---|---|---|
| Primary Load Bearing | End Posts (Tension) | Top/Bottom Rails (Compression) |
| Cumulative Force | High (focused on posts) | Distributed (per panel) |
| Deflection Risk | Mid-span of cable | Rail bowing |
| Tensioning Hardware | Turnbuckles at ends | Threaded studs at rail connections |
Cost Analysis: Materials vs. Labor for 2026
When budgeting for your project, it is important to look beyond the price of the cable itself. In 2026, the cost per linear foot for cable railing varies significantly between horizontal and vertical layouts.
- Horizontal Systems: These are generally more affordable in terms of materials. Because the cables can pass through intermediate posts, you need fewer tensioners and fittings. A 20-foot run of horizontal railing only needs two tensioning points.
- Vertical Systems: These tend to be more expensive. Every vertical cable (spaced every 3 inches) requires its own set of fittings at the top and bottom. For a 4-foot section of railing, you might need 15 to 16 individual cables, each with two fittings. This drastically increases the hardware count and the labor required for installation.
Labor costs also favor horizontal systems for DIYers. Installing a few long runs of cable is much faster than cutting, swaging, and tensioning dozens of short vertical pieces. However, for professional installs, the price gap may narrow if the contractor is using pre-fabricated vertical panels.
Installation Complexity and Necessary Tools
The "DIY-friendliness" of cable railing has improved significantly with the advent of specialized tools. For horizontal systems, the primary challenge is drilling straight holes through intermediate posts. Using a drill guide is essential to ensure the cables remain perfectly level across the entire deck.
Vertical systems require more precision in the framing. The top and bottom rails must be perfectly aligned so that the cables are truly vertical. Any misalignment will be immediately visible to the eye. Regardless of the orientation, having the right cable railing tools like hydraulic crimpers is the difference between a professional-looking finish and a frustrating weekend project. Hydraulic crimpers provide a much cleaner and more secure "swage" than manual hand-crimping tools, ensuring that the cable won't slip under high tension.
Maintenance and Long-Term Performance
One often overlooked factor in the horizontal vs. vertical debate is maintenance. Horizontal cables are easier to clean; you can simply run a cloth along the length of the cable. However, they are more prone to accumulating dust on the top surface of the wire. Vertical cables don't catch dust as easily, but there are more "nooks and crannies" where the cables meet the bottom rail, which can trap moisture and debris.
In coastal environments, the orientation doesn't matter as much as the material grade. As noted in our guide to cable railing code requirements, using T316 marine-grade stainless steel is the only way to prevent "tea staining" or surface rust in salt-air environments. Periodically checking the tension of your cables—especially after the first winter/summer cycle—is necessary for both systems to account for the natural settling of the wood or metal posts.
Decision Checklist: Which Orientation Should You Choose?
Use this checklist to determine which cable railing style best fits your specific project needs:
- [ ] Do you have a view you want to maximize? (Choose Horizontal)
- [ ] Is your local building inspector strict about the "ladder effect"? (Choose Vertical)
- [ ] Are you a DIYer looking for the simplest installation? (Choose Horizontal)
- [ ] Does your home have a traditional or transitional architectural style? (Choose Vertical)
- [ ] Are you working with a tight budget for hardware? (Choose Horizontal)
- [ ] Are you installing railing on a staircase with complex angles? (Choose Vertical for simplicity in layout)
FAQ
Is horizontal cable railing legal in all states? While the International Residential Code (IRC) does not prohibit horizontal cable railing, some local municipalities and Homeowners Associations (HOAs) still enforce "no-climb" rules. It is vital to verify your local codes before purchasing materials. In most cases, if you follow the 4-inch sphere rule and maintain proper tension, horizontal systems are accepted.
Which is more expensive, horizontal or vertical cable railing? Vertical cable railing is generally more expensive due to the higher volume of hardware required. Each vertical cable needs its own set of tensioners and fittings, whereas horizontal cables can span long distances with just two fittings per run. Labor costs are also typically higher for vertical systems because of the increased number of connections.
Can I install cable railing on wood posts? Yes, both horizontal and vertical cable railing can be installed on wood posts, provided they are structurally sound (usually 4x4 or 6x6 pressure-treated lumber). For horizontal systems, you must use protector sleeves to prevent the cable from biting into the wood. For vertical systems, ensure the top and bottom rails are securely fastened to the posts to handle the tension.
Does vertical cable railing require a bottom rail? Yes, vertical cable railing almost always requires a bottom rail. The bottom rail provides the necessary anchor point for the cables and helps maintain the 4-inch spacing required by code. Without a bottom rail, the tension from the cables would likely pull the cables together or cause the top rail to sag significantly.
How do I prevent my cables from sagging over time? Preventing sag starts with proper post-installation and ends with correct tensioning. Use a tension gauge to ensure each cable meets the manufacturer's recommended PSI. Additionally, check your tension annually, as temperature fluctuations and the natural drying of wood posts can cause slight changes in cable tautness.
Is 1/8" cable strong enough for a residential deck? Yes, 1/8" diameter T316 stainless steel cable is the standard for residential applications. It has a breaking strength of approximately 1,700 to 1,800 pounds, which is more than enough to meet the 200-pound concentrated load requirement set by the IRC. For commercial projects, 3/16" cable is often used for added durability and a bolder look.
