Cable railing sag on outdoor decks is a common frustration that often signals either normal settling from weather changes or deeper issues like post flex and improper initial tensioning. The good news is that most cases can be diagnosed and corrected without a full system replacement, provided you address the root cause first—whether it's wood creep in posts, loose hardware, or missing structural support—then use the right re-tensioning approach and plan for seasonal maintenance. By following a structured self-audit, applying targeted fixes, and choosing rigid hardware and proper installation practices upfront, you can keep your railing taut, visually clean, and aligned with typical code expectations year-round.

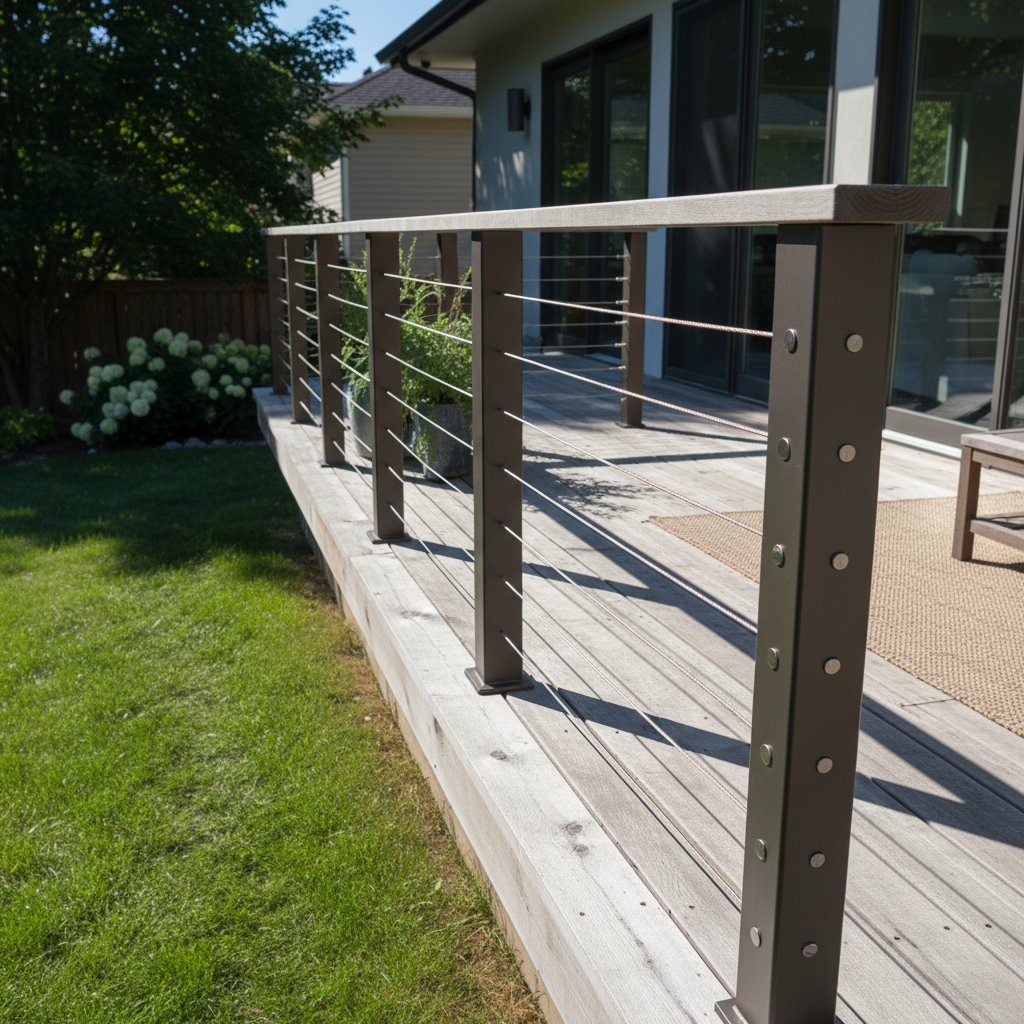

Why Cable Railing Sag Happens on Outdoor Decks
Outdoor cable railings rely on consistent tension to stay taut and functional. Over time, several factors cause that tension to drop, leading to visible droop, a less secure feel, and potential concerns about safety or compliance. The most frequent culprits include thermal expansion and contraction of the cables, moisture-driven wood creep that causes posts to bow outward under sustained load, and normal structural settling of the deck frame.
Post deflection is particularly problematic. As this manufacturer installation guidance notes, tensioning cables before the railing frame is fully braced can push undersized or underbraced posts beyond allowable limits, creating permanent sag that simple tightening won't solve. Similarly, long cable spans without intermediate supports or a rigid top rail amplify deflection under load, making even minor tension loss more noticeable.
Weather plays a major role too. Freeze-thaw cycles, heavy rain, and seasonal humidity changes cause wood posts to swell, shrink, and gradually creep, loosening the system. In coastal or high-moisture areas, this effect is accelerated. Flexible cable systems are designed around controlled movement rather than absolute rigidity, as highlighted in highway barrier research from the California Department of Transportation and Washington State DOT design manuals. The key is distinguishing normal, manageable slack from structural problems.
Common Myths About Cable Railing Sag
Several misconceptions lead homeowners to apply the wrong fix or ignore maintenance until the problem worsens. Here’s a clearer picture:
- Myth: Stainless steel cable never sags if installed correctly. Reality: Even premium marine-grade stainless cable will appear to sag when supporting posts flex or bow due to wood creep and constant tension. The structure matters as much as the cable itself.
- Myth: Sag is always just loose hardware. Reality: Uniform slack across multiple runs often points to post movement or frame settling rather than individual fittings. Localized slack near corners or end posts is more likely hardware-related.
- Myth: One-time tensioning lasts forever. Reality: Periodic re-tensioning is usually required as decks settle and weather cycles affect wood and cable length.
- Myth: Any tension tool works equally well. Reality: Proper tools prevent damaged fittings or under-crimped connections that create false security. Hydraulic options deliver consistent, high-pressure results without work hardening the cable.
- Myth: Any visible sag means the system is immediately unsafe. Reality: Small, stable looseness is typically a maintenance issue, while severe sag, visible post movement, or gaps that could violate the common 4-inch sphere rule warrant immediate attention. Always evaluate against your local guardrail requirements, as outlined in general OSHA technical guidance on guardrails.
These myths often push people toward endless tightening instead of fixing the underlying structure. Checking the whole system first prevents wasted effort.
How to Diagnose the Cause of Your Sag
Before grabbing a tool, run a quick self-audit to avoid treating symptoms while ignoring the disease. Start by pressing on the posts and top rail by hand. If they flex noticeably or the frame racks, the sag likely stems from insufficient rigidity rather than cable stretch. Next, examine whether the looseness is uniform across the railing or localized near specific posts or fittings—this helps differentiate settling from hardware failure or improper swaging.
Inspect swage fittings and turnbuckles for visible loosening, corrosion, or deformation. Check the installation date and recent weather history: rapid slack after rain or freeze-thaw often traces back to wood movement. If re-tensioning the cables causes the posts to pull inward or the top rail to deform, stop and reinforce the structure first.
A practical decision threshold can clarify next steps. The chart below synthesizes common patterns from installation guidance and maintenance reports into an illustrative triage tool. It is not a formal engineering standard or code limit—local requirements, post design, and span lengths will influence the real boundary.
Cable Railing Sag: Practical Decision Threshold Guide
Practical decision guide based on common installation patterns and maintenance reports. Use this to triage sag by scenario, not as a measured engineering standard.
View chart data
| Category | Re-tension only | Inspect & reinforce posts | Upgrade hardware / top rail | Call a professional |
|---|---|---|---|---|
| Mild seasonal looseness | 4.0 | 1.0 | 0.0 | 0.0 |
| Moderate recurring sag | 1.0 | 3.0 | 2.0 | 0.0 |
| Severe sag with post flex | 0.0 | 2.0 | 3.0 | 4.0 |
| Repeated loosening after re-tension | 0.0 | 4.0 | 3.0 | 4.0 |
| Visible deflection around 2 in | 0.0 | 4.0 | 3.0 | 5.0 |
Illustrative decision thresholds synthesized from the provided threshold table, scenario matrix, reverse recommendations, and maintenance notes: cosmetic looseness is usually handled by re-tensioning; recurring seasonal loss or older installations shift toward inspection and reinforcement; visible post movement, tension that will not hold, or repeated loosening point to professional evaluation.
Use this guide to decide whether a simple adjustment suffices or whether you need to strengthen posts, add a top rail, or seek professional evaluation. In most homeowner cases, the dominant early action is inspection followed by targeted re-tensioning when the structure remains rigid.
Step-by-Step: How to Fix Sagging Deck Cables
Once you have ruled out major structural movement, re-tensioning is straightforward and effective. Begin by cleaning the cables and fittings to remove dirt or light corrosion. For systems using turnbuckles or lag screw swage tensioners, simply turn the body to take up slack evenly across runs—work from the center outward to avoid uneven pull on posts. Avoid over-tensioning; the goal is a firm, straight appearance without deforming the frame.
For installations with crimped fittings or where initial swaging needs correction, a quality tensioning tool is essential. Hydraulic crimpers deliver the high, consistent pressure needed for secure, flat crimps on 1/8-inch or 3/16-inch stainless cable without damaging the wire. Senmit’s 10 Ton Hydraulic Cable Crimper Hand Tool or the HC02 Hydraulic Crimper Kit are designed specifically for this task and include cutters for clean work.
If your existing hardware is worn, upgrading to marine-grade lag screw swage turnbuckles or black stainless deck toggles can simplify future adjustments. Always tension only after the full frame is stable, as emphasized in multiple manufacturer guides. Test by applying moderate hand pressure along the cables; they should feel taut without excessive give.
For detailed re-tensioning without disassembly, see Senmit’s guide on what to do about sagging cables. If the sag returns quickly or posts continue to move, shift focus to reinforcement rather than repeated tightening.
How Often Should You Re-Tension Cable Railings?
There is no universal interval because conditions vary widely. In stable inland climates with rigid metal posts, an annual inspection may suffice. In regions with large seasonal moisture swings or wood posts, plan to check and adjust every 6–12 months, especially after spring thaw or heavy rains. The annual stainless steel railing inspection checklist offers 15 critical points, including cable tension, fitting integrity, and signs of wood creep.
Make re-tensioning part of your seasonal deck maintenance routine. A quick walk-around before hosting guests or after major weather events catches most issues early. Our outdoor railing maintenance manual provides protocols to keep T316 stainless systems looking and performing their best.
How to Prevent Cable Railing Sag in the Future
Prevention starts at installation and continues with smart hardware choices. Use adequately sized and braced posts—typically 4x4 or larger pressure-treated lumber with proper concrete footings and cross-bracing. Adding a structural top rail significantly reduces pull forces on end posts. Keep cable runs shorter where possible and maintain closer vertical spacing to limit visible deflection.
Choose marine-grade Type 316 stainless steel components for superior corrosion resistance, especially near the coast, as detailed in Senmit’s technical whitepaper on marine-grade standards. Invest in purpose-built tensioning hardware like Senmit’s wood post tension kits that allow easy future adjustment without cutting new cable.
During initial setup, wait until the entire deck frame has settled before applying final tension. Consider professional load testing for high-traffic or elevated decks. For comprehensive system options, explore Senmit’s complete cable railing kits or wood post railing systems that incorporate these best practices from the start.
Additional prevention steps include regular cleaning to prevent chloride buildup, prompt replacement of any deformed fittings, and avoiding over-tensioning that accelerates wood creep. The essential cable railing tools guide explains why hydraulic crimpers outperform hand swaging for long-term reliability.
Safety, Code, and When to Call a Professional
Cable railings must comply with local building codes, typically requiring that no sphere larger than 4 inches can pass through the openings and that the system withstands specified lateral loads. Sag that creates excessive gaps or allows noticeable deflection under normal use may violate these rules. This article discusses comfort, appearance, and setup practices only. It is not medical, structural engineering, or legal advice. If you notice persistent movement, cracking in posts, or have existing safety concerns, consult a qualified professional or local building inspector.
Important Safety Note: Cable railing sag can indicate tension loss, post flex, or hardware issues that may affect compliance and perceived security. This guide helps with common maintenance but does not replace proper engineering evaluation. For decks used by children, elderly individuals, or anyone with balance concerns, ensure the system feels solidly taut before use. When in doubt, reinforce or seek expert assessment rather than relying solely on re-tensioning.
Final Checklist for a Taut, Long-Lasting System
Use this practical checklist before declaring the job complete:
- Posts and top rail show no visible flex under moderate pressure.
- All cables have uniform, firm tension with minimal deflection when pressed.
- Swage fittings and turnbuckles are fully secured and free of corrosion.
- Cable spacing follows code (typically 4 inches maximum opening).
- You have a seasonal inspection plan and the proper tools on hand for quick adjustments.
- Upgraded hardware or additional bracing has been added where wood creep or long spans are concerns.
Following these steps transforms cable railing sag from a recurring headache into a manageable routine. With the right diagnosis, quality tensioning tools, and preventive practices, your outdoor deck can maintain a clean, professional look and dependable performance for years.
For more on related topics, read our article on wood creep and why posts bow over time or explore the full range of cable railing tools to equip your next project.
