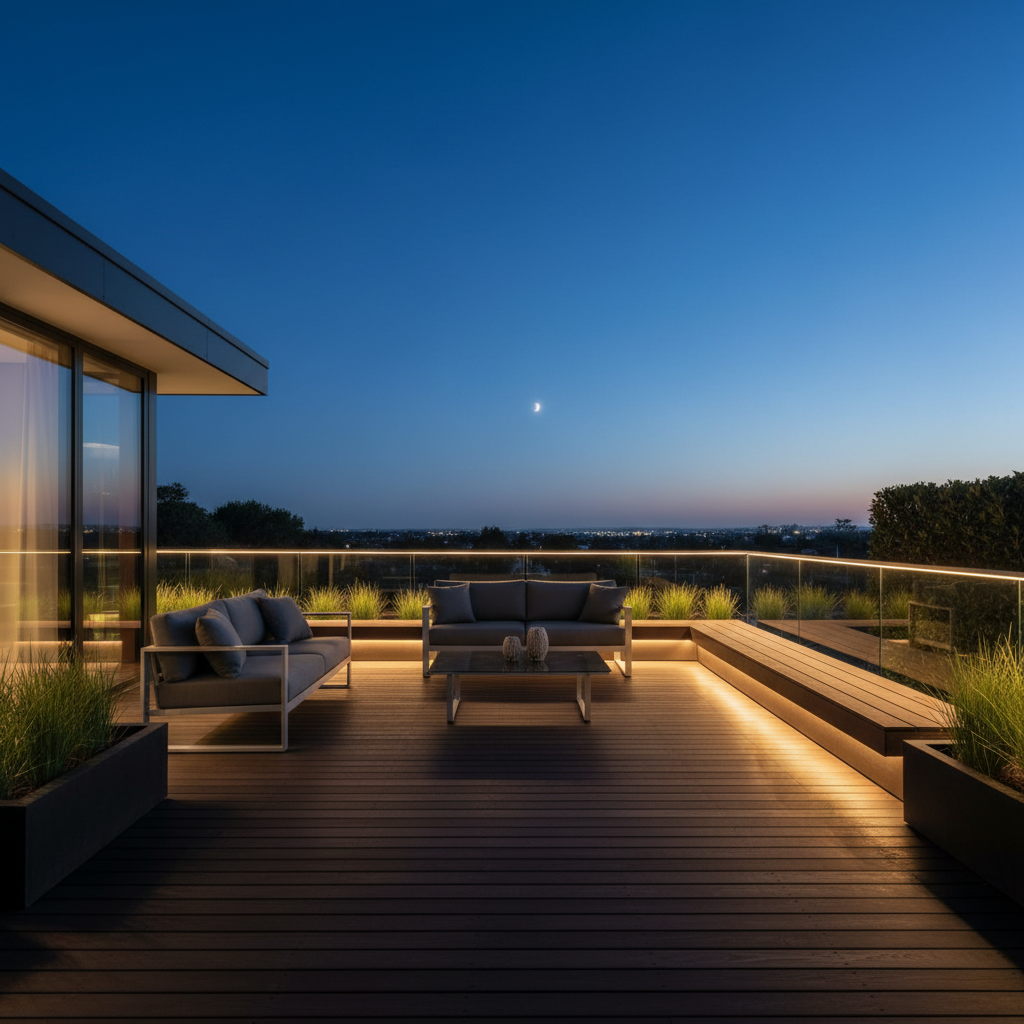

Modern deck at night with elegant LED handrail lighting illuminating the outdoor space

LED Deck Lighting Layouts: Wiring Plans for Modern Railing

March 14, 2026

Summary

Effective LED deck lighting relies on a pre-construction wiring plan that prioritizes consistent voltage delivery and invisible cable management. By utilizing a hub-and-spoke wiring topology and 24V low-voltage systems, homeowners can achieve professional-grade illumination that enhances both safety and nighttime aesthetics without the common pitfalls of voltage drop or cluttered, exposed wires.

Key takeaways

Plan Before Drilling: Always map your wiring paths through posts and rails before installation to avoid structural compromises or visible conduits.
Topology Matters: Favor a hub-and-spoke (home-run) wiring strategy over traditional daisy-chaining to ensure uniform brightness and easier system troubleshooting.
Standardize on 24V: Modern 2026 deck systems benefit from 24V power, which allows for longer wire runs and smaller gauge cables compared to older 12V standards.
Smart Integration: Future-proof your deck by selecting controllers that support Matter and Thread protocols for seamless interoperability with smart home ecosystems.
Concealment is Key: Use integrated LED handrails and hollow-core metal posts to route wiring internally, maintaining the clean lines of a modern railing system.

Strategic Layout Planning: The "Before You Drill" Phase

The most successful deck lighting projects are those where the electrical plan is treated as a foundational element of the deck's architecture. When you build a modern railing system, the integration of light should not be an afterthought. A well-conceived layout considers the primary traffic patterns, potential trip hazards like stairs, and the desired ambient mood. In 2026, the trend has shifted toward "invisible illumination," where the light source is hidden from direct view, casting a soft, downward glow that highlights the deck's materials without causing glare.

Before the first hole is drilled into your posts, you must determine the entry and exit points for every wire. This involves identifying where the transformer will be located—ideally in a ventilated, accessible spot near a GFCI outlet—and mapping the "home runs" from the transformer to each lighting zone. For those building in coastal environments, understanding material science is as critical as the electrical plan. Our technical whitepaper on Marine-Grade Stainless Steel Standards for Residential Cable Railing details how Type 316 alloys prevent chloride-induced pitting, a factor that can also impact the longevity of your lighting fixtures and their mounting hardware.

Logic Summary: This planning phase assumes a standard residential deck layout. The recommendation to plan before drilling is based on the difficulty of retrofitting wires into modern, high-tension cable railing systems. This approach may not apply to surface-mounted solar lighting, which requires no wiring but offers less control and brightness.

Wiring Topologies: Why Hub-and-Spoke Wins in 2026

While many DIY kits suggest a simple "daisy-chain" approach—where one light is connected to the next in a single line—professional installers have moved toward the hub-and-spoke (or parallel) topology. In a daisy-chain, the last light in the sequence often appears dimmer than the first due to cumulative voltage drop. Furthermore, a single break in the wire can take down the entire string, making troubleshooting a nightmare.

Modern deck at night with elegant LED handrail lighting illuminating the outdoor space

In contrast, a hub-and-spoke layout involves running individual wires (spokes) from a central junction box (hub) to each light or small group of lights. This ensures that each fixture receives nearly identical voltage, resulting in uniform brightness across the entire deck. It also simplifies repairs; if one light fails, the rest of the system remains operational, and the fault can be traced to a specific "spoke." When you follow a guide to installing cable railing, integrating these home-run lines into your post-drilling schedule is essential for a clean finish.

Comparing Wiring Topologies

Feature	Daisy-Chain	Hub-and-Spoke (Parallel)
Brightness Consistency	Low (Voltage drop at end)	High (Uniform delivery)
Troubleshooting	Difficult (One break affects many)	Easy (Isolated circuits)
Wire Usage	Minimal	Higher
Installation Complexity	Low	Moderate
Scalability	Limited	High

Concealment Techniques: Achieving the "Invisible Wire" Goal

The hallmark of a modern deck is clean, uninterrupted lines. Exposed wires or plastic conduits tacked onto the side of a post immediately degrade the aesthetic value of the project. To achieve a professional look, you must utilize the internal cavities of your railing components. Metal systems, such as an aluminum cable railing system, are particularly well-suited for this, as they often feature hollow posts and rails designed for wire routing.

For the ultimate in sleek design, consider a rust-resistant aluminum handrail with LED strip options. These rails feature a dedicated channel on the underside that houses the LED strip and conceals the wiring. When routing wires through posts, a surface mount aluminum cable railing post provides a stable, hollow vertical path. The wire enters through the base plate—often hidden beneath the deck boards—and travels up the center of the post to the handrail.

Technical cutaway diagram showing wire routing inside a deck railing post for LED lighting installation

Routing Through Complex Geometries

Corner posts and stair transitions present the greatest challenge for wire concealment. In a 90-degree corner, the internal space of the post is often occupied by cable railing tensioners. To navigate this, use "Y-splitters" or small waterproof junction boxes tucked into the joist space below the post. This allows you to send separate lines up each side of the corner without crowding the post's interior. For stairs, ensure your wiring has enough "slack" to accommodate the angle of the rail while remaining protected from the elements.

Logic Summary: These concealment techniques assume the use of hollow-core metal or composite posts. If using solid wood posts, you may need to router a channel into the back of the post and cover it with a matching wood strip or decorative trim.

Calculating Voltage Drop and Transformer Capacity

One of the most common mistakes in deck lighting is undersizing the transformer or using wire that is too thin for the length of the run. Voltage drop is the decrease in electrical potential as current flows through a wire. If the voltage at the light fixture drops below the manufacturer's specified range (typically +/- 10%), the LEDs may flicker, change color, or fail prematurely.

In 2026, 24V systems have largely replaced 12V for professional installations. Because 24V carries the same wattage at half the amperage of a 12V system, it experiences significantly less voltage drop over long distances. This allows you to use 16-gauge or 18-gauge wire for runs that would have required bulky 12-gauge wire in a 12V setup.

Transformer Sizing Rule of Thumb

To calculate the required transformer capacity, sum the total wattage of all planned fixtures and add a 20% safety margin. This "headroom" prevents the transformer from running at maximum capacity, which generates excess heat and reduces its lifespan.

Example Calculation:

10 Handrail LEDs (3W each) = 30W
8 Post Cap Lights (2W each) = 16W
Total Wattage = 46W
46W x 1.20 (Safety Margin) = 55.2W
Recommended Transformer: 60W or 100W unit.

When choosing materials, remember that the conductivity of your wiring environment matters. The choice between aluminum vs. stainless steel cable railings can affect how you manage heat dissipation for high-output LED drivers located near the railing structure.

Smart Deck Integration in 2026: Matter and Thread

The "Smart Deck" is no longer a futuristic concept; it is the standard for 2026. Modern lighting layouts should integrate with broader smart home ecosystems using the Matter protocol. Matter ensures that your deck lights can be controlled by any major smart home platform (Apple Home, Google Home, Amazon Alexa) without needing proprietary hubs for every device.

Furthermore, the adoption of Thread—a low-power, self-healing mesh networking protocol—has solved the "dead zone" issues common with outdoor Wi-Fi. By using Thread-enabled LED controllers, each light fixture can act as a node in a mesh network, extending the range and reliability of your smart system across even the largest estates. This is particularly useful for distributed layouts where the transformer might be far from the primary home router.

Heat Management and Maintenance of Integrated LEDs

A frequently overlooked aspect of integrated lighting is thermal management. While LEDs are efficient, they still generate heat. In enclosed aluminum handrails, this heat can build up, potentially shortening the life of the LED chips. Ensure your handrail system has adequate "breathing room" or use LED strips with a high-quality PCB (printed circuit board) that acts as a heat sink.

Maintenance and Repair Procedures

Integrated systems are beautiful, but they must be maintainable. Avoid "burying" connections in inaccessible places like inside a sealed post. Instead:

Use Modular Connections: Utilize waterproof "plug-and-play" connectors rather than permanent wire nuts inside posts.
Create Access Points: If possible, place junction boxes in accessible areas under the deck or behind removable trim pieces.
Document the Layout: Take photos of the wiring before the deck boards are installed. In 2026, many homeowners use digital "as-built" maps stored in their smart home app for future troubleshooting.

If an LED strip fails, a modular design allows you to slide the old strip out of the handrail channel and pull a new one through using the old wiring as a "fish tape," avoiding the need to dismantle the entire railing.

FAQ

Can I mix different brands of LED lights on the same wiring plan? Yes, you can generally mix brands as long as they operate on the same voltage (e.g., all are 24V DC) and the total wattage does not exceed your transformer's capacity. However, be aware that different manufacturers may use slightly different "warm white" color temperatures (e.g., 2700K vs. 3000K), which can lead to a mismatched appearance. It is best to test a sample of each fixture together before final installation to ensure visual consistency.

How do I calculate the maximum wire run length for a 24V system? The maximum length depends on the total wattage on that specific wire run and the gauge of the wire. For a typical 24V system using 16-gauge wire and a 30W load, you can usually run up to 150 feet before experiencing significant voltage drop. If you are using a 12V system, that distance would be cut by more than half. Always consult a voltage drop chart or use a digital calculator that accounts for 2026 safety standards.

Is it safe to run low-voltage deck lighting wires underground? Low-voltage (Class 2) wiring is generally safe for shallow burial, but it must be rated for "direct burial" (usually labeled as CL2 or landscape wire). For maximum protection against garden tools and rodents, many professionals recommend running the wire through a 1/2-inch PVC conduit where it passes through soil or under walkways. Always check local building codes, as some jurisdictions have specific depth requirements even for low-voltage lines.

What is the difference between Matter and traditional smart lighting? Matter is a universal communication standard that allows devices from different manufacturers to work together seamlessly. Traditional smart lighting often required a specific "bridge" or "hub" from the manufacturer to talk to your phone. With a Matter-enabled deck controller, you can add the lights directly to your existing smart home network (like Apple Home or Google Home) using a Thread border router, which is often built into modern smart speakers or TVs.

Do I need an electrician to install low-voltage deck lighting? In most jurisdictions, low-voltage (12V/24V) lighting does not require a licensed electrician for the installation of the fixtures and wiring itself, as it is considered safe for DIY. However, the transformer must be plugged into a GFCI-protected outlet. if you do not have an existing outdoor outlet, you will need a licensed electrician to install one. Always verify with your local building department to ensure compliance with the National Electrical Code (NEC).

How do I hide wires if I have a wood deck with metal railing? The most effective way is to route the wires through the joist space beneath the deck boards. You can bring the wire up through a small hole drilled directly under the base of each hollow metal post. If you are using solid wood posts, you can drill a vertical hole through the center of the post (long-bore drilling) or router a channel into the side of the post that will be covered by the railing's mounting brackets.
