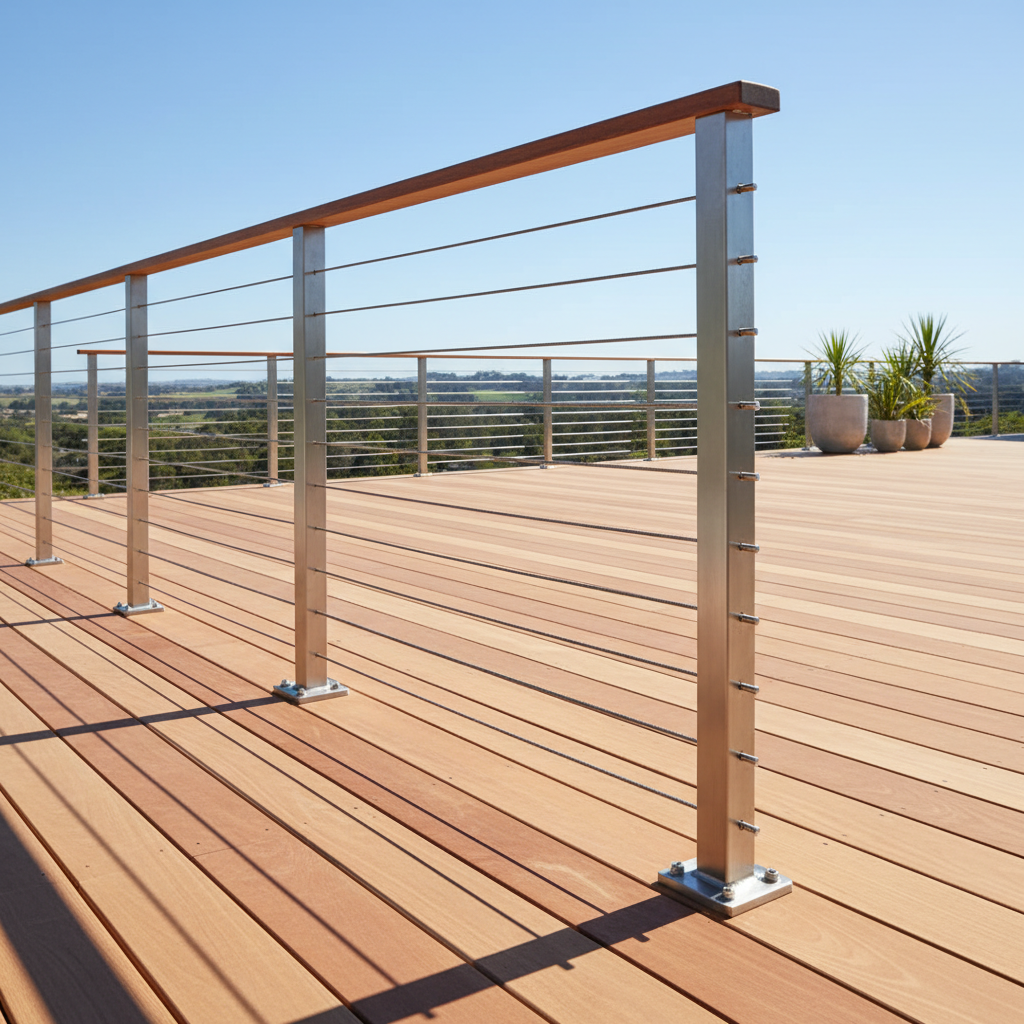

A modern stainless steel cable railing system installed on a residential deck with clean architectural lines

Maintain Cable Railing: Preventing Rust & Tension Loss

March 11, 2026

Summary

Maintaining a stainless steel cable railing system is essential for preserving its structural integrity and aesthetic appeal over decades. While stainless steel is inherently resistant to corrosion, it is not immune to environmental stressors like salt spray, industrial pollutants, or extreme temperature fluctuations. Effective maintenance focuses on two primary pillars: preserving the chromium oxide "passive layer" to prevent surface tea-staining and managing cable tension to counteract natural mechanical settlement and thermal expansion. By implementing a semi-annual cleaning regimen using pH-neutral or citric acid-based solutions and performing seasonal tension adjustments, homeowners can ensure their railing remains safe, taut, and visually pristine. This guide provides a comprehensive framework for identifying early signs of wear, selecting the correct tools for adjustment, and applying advanced cleaning techniques that promote long-term durability in any climate.

Key takeaways

Preserve the Passive Layer: Regular cleaning prevents "tea-staining" (surface oxidation) by removing contaminants that break down the protective chromium oxide layer of the stainless steel.
Differentiate Tension Loss: Understand the difference between initial "mechanical stretch" (occurring in the first 90 days) and "thermal expansion" caused by seasonal temperature shifts.
Use the Right Chemistry: Avoid bleach and chloride-based cleaners; instead, opt for citric acid-based passivating agents to actively restore the metal's corrosion resistance.
Maintain Code Compliance: Ensure cables remain tight enough to pass the "4-inch sphere rule" required by the International Residential Code (IRC) for safety.
Seasonal Calibration: Perform tension checks in late autumn and early spring to account for the metal's coefficient of thermal expansion.

The Science of Stainless Steel: Why Maintenance Matters

Stainless steel is a remarkable material, but its "stainless" nature is actually the result of a microscopic, self-healing film known as the passive layer. This layer, primarily composed of chromium oxide, acts as a barrier against oxygen and moisture. However, environmental factors such as salt air in coastal regions or de-icing salts in colder climates can penetrate this barrier, leading to a phenomenon known as "tea-staining." This is not structural rust but rather a surface-level brown discoloration that, if left untreated, can lead to deeper pitting.

Understanding the metallurgy of your system is the first step in effective care. For instance, Type 316 stainless steel contains molybdenum, which significantly enhances its resistance to chloride-induced pitting compared to Type 304. For a deeper dive into these material differences and the regulatory standards governing their use, we recommend consulting the marine-grade stainless steel for corrosion resistance, which provides a technical whitepaper on metallurgical standards and IRC safety compliance.

Logic Summary: Maintenance is recommended because the passive layer is dynamic, not static. We assume that most residential systems are exposed to at least some atmospheric pollutants, making periodic intervention necessary to prevent the transition from surface staining to structural corrosion.

Preventing Corrosion and "Tea-Staining"

Tea-staining often appears as a light brown film on the surface of the cables or fittings. It is frequently mistaken for the railing "rusting out," but it is usually just surface contamination. The key to prevention is regular rinsing. In coastal environments (within 5 miles of the ocean), salt deposition rates can be high enough to require monthly rinsing with fresh water. For inland properties, a semi-annual deep clean is typically sufficient.

When selecting materials, the choice between 304 vs 316 stainless steel comparison is critical. While T316 is the standard for marine environments, even T304 can maintain its integrity for decades in inland areas if properly maintained. The goal of cleaning is not just to remove dirt, but to allow the metal to "breathe" and reform its passive layer through exposure to oxygen.

A modern stainless steel cable railing system installed on a residential deck with clean architectural lines

How to Clean Cable Railing Without Damaging the Finish

The most common mistake in cable railing maintenance is using the wrong cleaning agents. Never use steel wool or carbon steel brushes, as they can leave behind iron particles that will rust and contaminate the stainless steel. Similarly, avoid any cleaners containing bleach or chlorides, which aggressively attack the passive layer.

The Citric Acid Advantage

While mild soap and water are effective for general dirt, citric acid-based cleaners (such as Citrisurf) offer a significant advantage: they clean and passivate simultaneously. Citric acid chelates the free iron from the surface without attacking the underlying metal, promoting the rapid regeneration of the chromium oxide layer.

DIY Passivation Protocol:

Clean: Wash the railing with a pH-neutral soap to remove heavy debris.
Apply: Spray a 10% citric acid solution onto the cables and fittings.
Dwell: Allow the solution to sit for 5–15 minutes (do not let it dry).
Rinse: Thoroughly rinse with fresh water and dry with a microfiber cloth.

This process effectively "resets" the corrosion resistance of your railing, a step often overlooked in standard maintenance guides.

Managing Cable Tension: Why Lines Sag and How to Fix It

A common concern for homeowners is preventing cable sag and maintaining tension. If you notice your cables feel loose or "bouncy," it is usually due to one of two factors: mechanical settlement or thermal expansion.

Initial Mechanical Stretch vs. Long-Term Sag

When a cable railing system is first installed, the individual wires within the 7x7 or 1x19 cable construction "seat" themselves into the fittings. This mechanical settlement usually occurs within the first 30 to 90 days. It is not a sign of a failing system but a natural part of the material's behavior. After this initial period, the cables should be re-tensioned to their final specification.

The Physics of Temperature Shifts

Stainless steel has a coefficient of thermal expansion of approximately 17.3 μm/m·°C. This means that a 10-foot cable span will physically contract or expand as the temperature changes. In the heat of summer, cables may appear slightly more relaxed, while in the freezing winter, they will contract. If a system is tensioned to its limit in the summer, the winter contraction could put excessive stress on the end posts. Conversely, a system tightened in the winter may sag when the sun hits it in July.

Logic Summary: We recommend a "middle-ground" tensioning approach. Tensioning should ideally be performed at a moderate temperature (approx. 60°F–70°F) to allow for equal expansion and contraction room. If adjusting in extreme heat or cold, adjustments should be made cautiously to avoid over-stressing the posts.

Seasonal Maintenance Checklist for 2026

To maximize the cable railing lifespan and maintenance, follow this seasonal schedule.

Season	Task	Focus Area
Spring	Post-Winter Deep Clean	Remove salt/grime; check for tea-staining.
Spring	Tension Calibration	Re-tighten cables that may have loosened during winter cycles.
Summer	Visual Inspection	Check for any physical damage or loose fittings.
Autumn	Pre-Winter Passivation	Apply citric acid treatment to protect against winter moisture.
Autumn	Tension Check	Ensure cables aren't too tight before the cold contraction begins.
Winter	Snow/Ice Removal	Gently brush off heavy snow; avoid using metal shovels near cables.

Close-up view of hands using a tensioning tool on a stainless steel cable railing turnbuckle fitting

Tools Required for Professional-Grade Maintenance

Having the right tools makes maintenance safer and more effective. For most Senmit systems, a few specialized items are required:

Tension Gauge: A mechanical or digital gauge is the only way to ensure your cables meet the manufacturer's tension specifications (typically 200–300 lbs of force).
Turnbuckle Wrenches: Specifically sized for your hardware to prevent marring the finish.
Hydraulic Crimper: If you need to replace a damaged run, a hydraulic cable crimper for tension adjustments ensures a secure, professional-grade swage.
Microfiber Cloths: To avoid scratching the polished or brushed surfaces of the posts and fittings.

For a full list of necessary equipment, explore our complete cable railing tool collection.

Safety Compliance and the 4-Inch Rule

The primary safety function of cable tension is to maintain the "4-inch sphere rule." According to the International Residential Code (IRC), a 4-inch sphere must not be able to pass through any opening in the guardrail. If cables are too loose, they can be deflected by a child or pet, creating a dangerous gap.

It is a common misconception that the building code specifies a exact pound-force for tension. In reality, the code specifies the result: the cable must not deflect enough to allow that 4-inch sphere through. Proper maintenance ensures that even as the cables age or the weather changes, your railing remains a solid, compliant barrier.

FAQ

How often should I clean my cable railing? For most inland residential settings, a thorough cleaning twice a year (spring and fall) is sufficient to prevent tea-staining. However, if you live within five miles of a saltwater coast or in an area with high industrial pollution, you should rinse your railing with fresh water monthly and perform a deep clean every 3–4 months. Regular rinsing removes accumulated chlorides before they can penetrate the protective passive layer of the stainless steel.

Can I use WD-40 to prevent rust on my cables? While WD-40 can provide a temporary moisture barrier, it is not recommended as a long-term solution for stainless steel railing. Oils can trap dust, pollen, and other contaminants against the metal, which may actually promote localized corrosion or "pitting" over time. Instead, use a dedicated stainless steel protectant or a citric acid-based passivating solution that enhances the metal's natural chromium oxide layer without leaving a sticky residue.

Why are my cables sagging even though I just tightened them? If you recently installed your railing, the "sag" is likely due to initial mechanical stretch, where the strands of the wire rope settle into a tighter configuration under load. This usually stabilizes after one or two adjustments in the first few months. If the system is older, sagging is often caused by thermal expansion during hot weather or the settling of the wooden or metal posts. Ensure your end posts are properly braced to handle the cumulative tension of multiple cable runs.

Is tea-staining permanent? No, tea-staining is a surface-level condition and can almost always be removed with the right cleaning protocol. Using a non-abrasive scotch-brite pad and a citric acid-based cleaner will typically lift the brown discoloration and restore the original finish. Once the stain is removed, it is vital to passivate the area to prevent the staining from returning quickly. If left for years, however, surface stains can evolve into deeper pitting, which is much harder to repair.

How tight should the cables actually be? A general rule of thumb for residential cable railing is to maintain between 200 and 300 pounds of tension per cable. This level of tension is usually enough to prevent a 4-inch sphere from passing through the cables when they are spaced 3 inches apart. Using a tension gauge is the most accurate way to verify this, as "hand-tight" can vary significantly between individuals and may not meet safety requirements.

What should I do if I see actual rust spots? If you see small "pitting" or dark spots that don't come off with standard cleaning, you may need a more aggressive restoration. Use a stainless steel-specific abrasive cleaner (never carbon steel) to gently sand away the spot, following the grain of the metal if applicable. Immediately follow this with a passivation treatment to seal the newly exposed metal. If the rust is coming from inside the cable, it may indicate a lower grade of steel was used, and that specific run may eventually need replacement.
