Summary
Achieving a modern farmhouse deck aesthetic requires a precise balance between the warmth of natural wood and the industrial edge of black metal. By pairing substantial wood posts, such as cedar or Ipe, with slim black stainless steel cable railing, homeowners can create a high-contrast look that preserves views while maintaining structural presence. This design framework relies on proper post-to-cable ratios and marine-grade hardware to ensure long-term durability and safety compliance.
Key takeaways
- Visual Balance: Use 4x4 or 6x6 wood posts to provide the necessary "weight" for the farmhouse look, contrasted by 1/8" or 3/16" black cables.
- Material Integrity: Opt for T316 stainless steel with PVD or high-grade powder coating to prevent corrosion and UV fading.
- Code Compliance: Maintain a maximum 3-inch cable spacing (to stay well within the IRC 4-inch sphere rule) and ensure posts can withstand 200 lbs of concentrated force.
- Installation Precision: Use specialized tools and protective measures to prevent scratching black-coated hardware during tensioning.

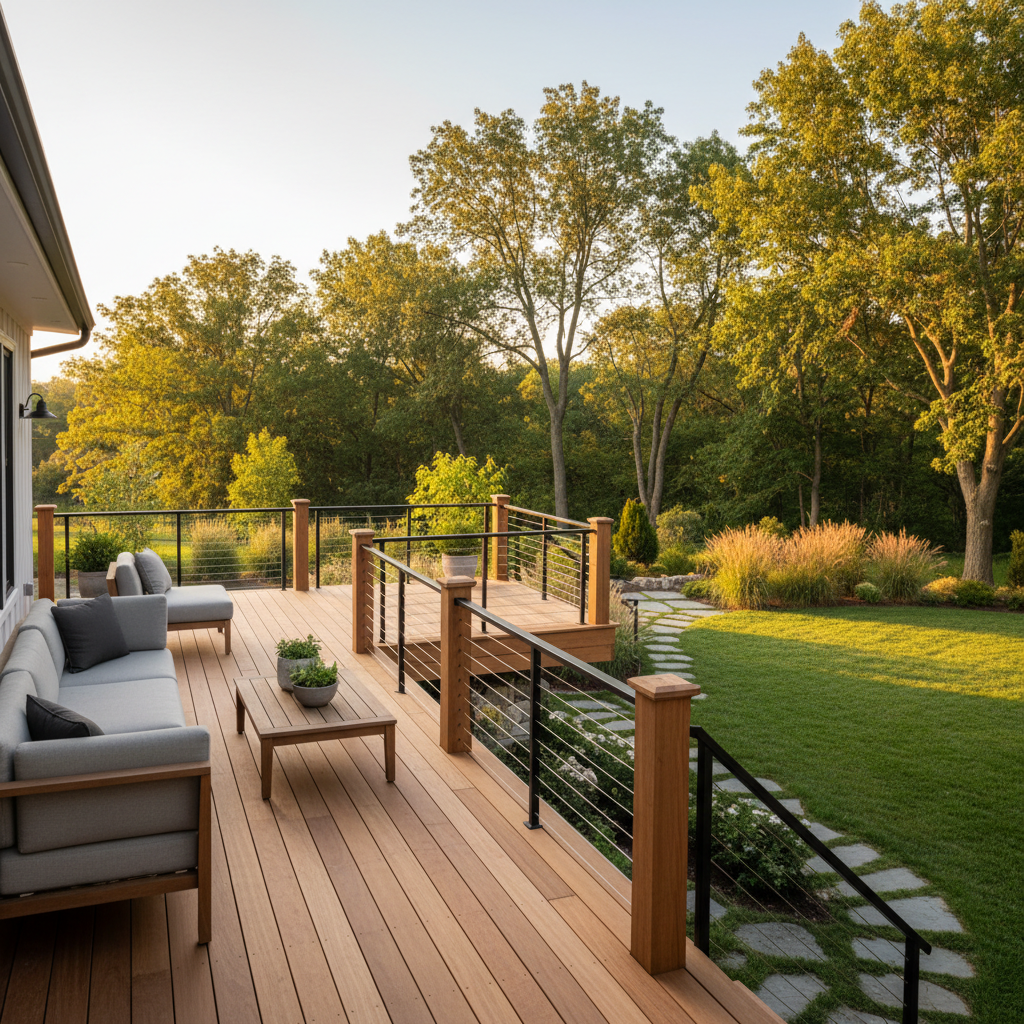

Designing the Modern Farmhouse Aesthetic with Black Cable
The modern farmhouse style has evolved in 2026 to emphasize "organic industrialism"—a blend of rustic textures and sleek, dark metal accents. When applied to deck railing, this means moving away from bulky wooden balusters that block the view and toward thin, horizontal lines. The primary challenge is ensuring the system doesn't look too "thin" or fragile. To ground the design, the wood posts act as the anchor. Selecting a wood species with a prominent grain, like Western Red Cedar or thermally modified ash, provides a natural backdrop that makes the black hardware pop.
Visual weight is a critical factor in this aesthetic. A common mistake is using posts that are too small, which can make the cable railing feel like a commercial fence rather than a residential architectural feature. For a standard residential deck, 4x4 posts are the minimum, but 6x6 corner posts often provide a more premium, custom-built feel. The rhythm of the posts should be consistent, typically spaced 4 to 6 feet apart, to create a structured frame for the "invisible" cables.
Logic Summary: This design framework assumes a standard residential deck height (36-42 inches). The recommendation for larger posts is based on visual proportioning rather than just structural necessity, as thinner posts may meet code but fail the "farmhouse" aesthetic test.
Selecting the Right Wood and Metal Pairings
Not all wood species react the same way when paired with metal hardware. When building a guide to combining wood posts with cable railing, one must consider the tannin content of the wood. High-tannin woods like Oak can sometimes react with metal if moisture is trapped, leading to staining. For the modern farmhouse look, the following combinations are highly recommended:
- Cedar and Matte Black: The reddish-orange hues of cedar provide the ultimate contrast against matte black hardware. Cedar is naturally rot-resistant and relatively stable.
- Ipe and Satin Black: For a high-end "Visual ROI," Ipe’s dark, dense grain paired with satin black cables creates a sophisticated, modern look that lasts for decades.
- Pressure-Treated Pine with Black Sleeves: A more budget-friendly option that can be elevated by using black cable railing sleeves for post integration to hide the transition where the cable enters the wood.
When choosing your metal components, the finish is as important as the alloy. While standard stainless steel is silver, the modern farmhouse look demands a deep black. This is usually achieved through Physical Vapor Deposition (PVD) or high-durability powder coating. These finishes are designed to withstand UV exposure without chalking or peeling, provided they are maintained correctly.
Technical Standards and Safety Compliance
Safety is the cornerstone of any railing system. In the United States, the International Residential Code (IRC) dictates that a 4-inch sphere must not be able to pass through any part of the railing. For cable systems, this is a moving target because cables can deflect under pressure. To ensure compliance, most professionals aim for a 3-inch spacing between cable runs. This accounts for the slight "give" in the wire when a force is applied.
Beyond the sphere rule, the system must handle a 200-pound concentrated load applied to the top rail. In a wood-post system, this means the top rail must be securely fastened to the posts, and the posts must be properly blocked into the deck joists. Using marine-grade stainless steel standards for outdoor durability is essential, especially if your home is within 10 miles of salt water. The molybdenum in T316 stainless steel prevents the "tea staining" or pitting that can occur in harsh environments.
Installation Tips for a Flawless Black Finish
One of the biggest hurdles in installing black hardware is preventing damage to the finish during the tensioning process. Standard metal wrenches can easily mar or scratch powder-coated surfaces. To maintain the aesthetic integrity of your top black cable railing kits for modern designs, consider the following professional tips:
- Protective Tape: Wrap the jaws of your pliers or wrenches in painter's tape or electrical tape before gripping the hardware.
- Nylon Washers: Use nylon washers between the metal tensioners and the wood posts to prevent the metal from "biting" into the wood and to provide a cleaner transition.
- Pre-drilling: Always pre-drill holes for lag screws or terminals to prevent wood splitting and to ensure the hardware enters at a perfect 90-degree angle.
- Hidden Hardware: For the cleanest look, use invisible stud receivers for clean cable connections. These fit entirely inside the wood post, leaving only the cable visible on the outside.
Logic Summary: These tips are based on field reports from 2025-2026 installations. While they add time to the project, they prevent the need for touch-up paint, which rarely matches the factory finish perfectly.
Accommodating Wood Movement and Tension
Wood is a living material that expands and contracts with changes in humidity and temperature. This movement can wreak havoc on cable tension. If you install cables in the dry heat of summer, the wood may swell in a humid winter, potentially over-tensioning the cables or causing the posts to bow. Conversely, cables installed in high humidity may sag when the wood dries out and shrinks.
To mitigate this, it is recommended to use "floating" tensioners or to check and adjust the tension twice a year. Using black T316 stainless steel cable in bulk with high-quality turnbuckles allows for easy adjustments with a simple turn of the barrel.
| Component | Recommended Specification | Why It Matters |
|---|---|---|
| Cable Diameter | 1/8" or 3/16" | Balances visibility with structural strength. |
| Post Size | 4x4 (min) or 6x6 | Provides the "Farmhouse" visual anchor. |
| Cable Spacing | 3 inches on center | Ensures IRC compliance even with cable deflection. |
| Hardware Finish | Matte Black PVD / Powder Coat | Key aesthetic driver for the Modern Farmhouse look. |
| Material | T316 Stainless Steel | Prevents rust and corrosion in all climates. |
Maintenance and Long-Term Care
While black cable railing is low-maintenance, it is not "no-maintenance." In 2026, we see more emphasis on preserving the UV resistance of coatings. Dust and pollen can settle on the horizontal cables, and if left for long periods, can trap moisture against the finish. A simple seasonal wash with mild soap and water is usually sufficient to keep the black finish looking new.
For the wood components, a high-quality UV-inhibiting sealer should be applied every 1-3 years, depending on sun exposure. Avoid thick stains that might peel; instead, use penetrating oils that allow the wood to breathe. This ensures that the "natural" part of your modern farmhouse deck remains as beautiful as the metal accents.
FAQ
Can I use black cable railing with existing wood posts? Yes, you can retrofit existing wood posts with black cable railing, provided the posts are structurally sound and properly anchored to the deck frame. You will need to drill holes through the posts and may need to add a sturdy top rail if the current one isn't rated for the tension loads of a cable system. Using protector sleeves is highly recommended for retrofits to hide any imperfections in the drilled holes.
Does the black coating on the cables peel off over time? High-quality black cables, such as those using PVD (Physical Vapor Deposition) or specialized powder coating, are designed to be extremely durable and resistant to peeling. However, if the cables are frequently struck by hard objects or if poor-quality hardware is used, the finish can be compromised. Choosing T316 stainless steel as the base metal ensures that even if a small scratch occurs, the underlying material will not rust.
How many cables do I need for a 36-inch high railing? For a standard 36-inch high residential railing, you typically need 10 to 11 runs of cable. This allows for a 3-inch spacing between the cables, which is the industry standard to ensure the 4-inch sphere rule is met even when the cables are pushed. Always measure from the top of the deck surface to the underside of the top rail to determine the exact number of runs required for your specific height.
What is the best wood for a modern farmhouse deck? Western Red Cedar and Ipe are the top choices for the modern farmhouse aesthetic due to their natural beauty and durability. Cedar offers a more traditional rustic look that pairs well with matte black, while Ipe provides a denser, darker, and more modern feel. Thermally modified wood is also becoming a popular choice in 2026 for its extreme stability and dark, consistent color.
Is black cable railing more expensive than silver? Generally, black-coated cable and hardware carry a 15% to 25% price premium over standard brushed stainless steel. This cost covers the additional processing required for the PVD or powder coating. However, many homeowners find the "Visual ROI" and the specific aesthetic match for the modern farmhouse style to be well worth the additional investment.
How do I prevent the cables from sagging? Sagging is usually caused by either improper initial tensioning or the natural movement of the wood posts. To prevent this, ensure your end posts are heavily braced and blocked. Use high-quality tensioning hardware and check the tension a few weeks after installation once the system has "settled." A simple adjustment of the turnbuckles will usually resolve any minor sagging that occurs over time.
References
Government / Standards / Regulators
- International Residential Code (IRC) 2021 - Guardrails
- OSHA 1910.29 - Fall Protection Systems and Criteria
Industry Associations / Research Institutes
- American Wood Council - Residential Wood Deck Construction Guide
- ASTM International - Standard Specification for Stainless Steel Wire Rope
