Summary
Designing a multi-level deck railing system requires a strategic approach to cable transitions and tensioning sequences to ensure both structural integrity and visual continuity. For complex, tiered outdoor spaces, the most effective method involves balancing continuous cable runs with strategic termination points, utilizing specialized hardware like beveled washers to manage elevation changes while adhering to the 4-inch sphere safety rule (IRC R312.1.3).
Key Takeaways
- Strategic Termination: Terminating cable runs at each level change is often structurally superior to continuous runs, as it prevents tension imbalances from propagating across the entire system.
- Angle Management: Use 30-degree or adjustable beveled washers to maintain perpendicular tension at stair-to-landing transitions and tier changes.
- Tensioning Sequence: Always tension cables from the middle of the run outward to the top and bottom to prevent post-deflection and ensure uniform distribution of force.
- Material Integrity: Multi-level systems experience higher cumulative stress; utilizing T316 marine-grade stainless steel is essential for long-term durability in complex layouts.
- Code Compliance: Ensure that the "greatest dimension" of any opening—including diagonal measurements between cables—remains under 4 inches when subjected to a 200-lb concentrated load (ASTM E935).

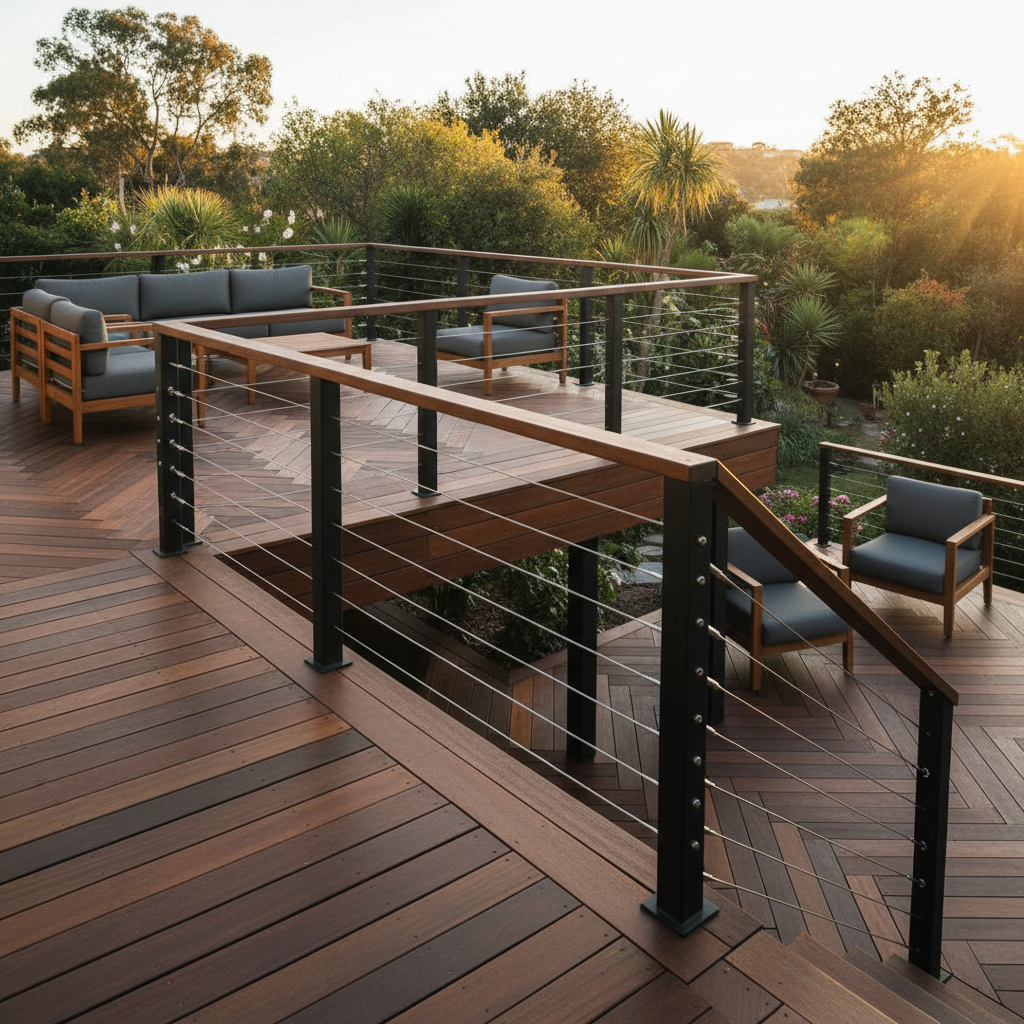

Planning Your Multi-Level Layout: Continuous vs. Terminating Runs
When embarking on a multi-level deck project, the first major design decision is whether to run cables continuously through multiple levels or terminate them at each tier. While continuous runs offer a sleek, uninterrupted aesthetic, they introduce significant engineering challenges.
Tension loss occurs at every corner or transition point due to friction between the cable and the post-pass-through holes. In a multi-level setup, internal field observations indicate that a single continuous 1/8" cable passing through three levels and two sets of stairs can lose up to 40% of its effective tension by the time it reaches the final post. This estimate assumes standard 1x19 cable and at least two 90-degree turns or equivalent elevation transitions.
Terminating runs at each level change or major transition is generally the recommended professional standard for complex layouts. This "modular" approach allows you to tension each section independently, ensuring that a slight sag on the upper balcony doesn't compromise the safety of the lower terrace. It also simplifies future maintenance, as you can adjust specific sections without affecting the entire perimeter.
Logic Summary: This recommendation assumes a standard residential deck configuration. While continuous runs are possible for shorter distances (under 60 feet total), modular termination is advised for tiered decks to prevent cumulative tension drop and simplify the installation of complete cable railing hardware (Example product source).
Managing Transitions and Angles Between Deck Tiers
The most common point of failure in multi-level railing is the transition point where a level section meets a stair or a lower tier. At these junctions, the cable must change direction, often at a 30 to 45-degree angle. Without proper hardware, the cable will "bite" into the wood or metal post, causing friction that makes proper tensioning impossible and eventually leading to post-rot or corrosion.
To solve this, professional installers use beveled washers for angled posts (Example product source). These components allow the tensioning nut to sit flat against an angled surface, ensuring that the force is applied directly down the center of the cable. In tiered layouts, you may also encounter "double-post" transitions where two levels meet at a corner; in these cases, offset the cable heights by 1/2 inch between the two posts to prevent the hardware from colliding inside the corner post.
Comparison: Continuous vs. Terminating Cable Runs
| Feature | Continuous Runs | Terminating (Modular) Runs |
|---|---|---|
| Aesthetics | Minimalist, fewer visible fittings | More hardware visible at transitions |
| Tension Consistency | Difficult to maintain across angles | High; each section is independent |
| Installation Difficulty | High; requires precise cable pulling | Moderate; easier to manage short segments |
| Maintenance | Complex; one adjustment affects all | Simple; isolated adjustments possible |
| Structural Stress | High load on end posts | Distributed load across multiple posts |
The Science of Tensioning: Sequential Tightening for Complex Projects
Tensioning a multi-level deck is not a "one and done" task. Because the posts are under significant lateral load—often exceeding 200 lbs of force per cable—the act of tightening one cable will naturally cause the post to deflect slightly, which in turn loosens the cables you already tightened. This effect is magnified in tiered decks where posts may be shared between different levels.
The most effective method is the "Inside-Out" sequential tightening protocol. Start by tightening the middle cable of a run to about 50% of its target tension. Then, move to the cables immediately above and below it, working your way toward the top and bottom rails. Once the entire section is at 50% tension, repeat the process to reach 100%. This gradual, balanced approach prevents the posts from bowing or twisting under uneven loads.
Logic Summary: Sequential tensioning is based on the principle of load distribution. By starting in the center, you stabilize the post's vertical axis before applying the highest loads at the top and bottom, where leverage is greatest.
Multi-Level Tensioning Checklist
- Pre-Stretch: Pull cables hand-tight and secure them before using tools to remove initial slack.
- Center-Start: Begin tensioning at the middle cable of the vertical stack.
- Alternating Pattern: Move from center to top-1, then center to bottom-1.
- Incremental Loads: Tighten in three passes (approx. 30%, 60%, 100% tension).
- Final Verification: Use a calibrated tension gauge (tension meter) to ensure all runs meet the target tension required to satisfy IRC R312.1.3.
To achieve professional-grade results, using professional cable crimping tools (Example product source) is essential. A hydraulic crimper ensures that the terminal ends are fused to the cable with enough force to withstand the high-tension requirements of multi-level systems without slipping over time.
Structural Requirements and Building Code Compliance
Modern building codes, such as the 2024/2026 International Residential Code (IRC), are increasingly stringent regarding "deflection limits." IRC Section R312.1.3 requires that a 4-inch sphere cannot pass through the cables at any point. In multi-level designs, the most common code violation occurs at the stair-to-landing transition, where the vertical gap between the bottom cable and the deck surface often widens as the deck levels change.
Furthermore, ASTM E935 outlines standard test methods for railing performance, requiring the system to withstand a 200-lb concentrated load. Selecting the right alloy—specifically Type 316 for coastal or high-exposure areas—is the foundation of a safe multi-level system, as detailed in the marine-grade stainless steel standards (Technical resource).
For tiered decks, we recommend a maximum post spacing of 4 feet to minimize cable deflection. This "over-engineering" ensures that even if one level experiences heavy snow load or structural settling, the railing remains a rigid safety barrier. For a deeper dive into the legalities of your project, consult our guide on deck railing building codes.
Long-Term Maintenance for Tiered Railing Systems
Multi-level decks are subject to complex structural movements. As the wood or metal frame of the deck expands and contracts with the seasons, the tension in your cables will fluctuate. In a tiered system, the lower levels often stay cooler and more humid than the sun-drenched upper levels, leading to uneven expansion rates across the project.
We recommend a bi-annual "Tension Audit." Every spring and autumn, walk the perimeter and check for cable railing sag. If you find a loose section, do not simply crank the tensioner as tight as possible. Instead, loosen the entire vertical run slightly and re-tension using the sequential method described above. This resets the load on the posts and prevents long-term structural warping.
Additionally, inspect all transition hardware. Beveled washers and terminal ends should be checked for signs of "tea staining" or surface oxidation. A quick wipe with a citric-acid-based cleaner will maintain the passivated layer of your T316 stainless steel, ensuring the system remains structurally sound and aesthetically pleasing.
FAQ
How do I handle a 90-degree corner transition between two different deck levels? The most stable way to handle a 90-degree corner on a multi-level deck is to use two separate posts at the corner, one for each level. This allows you to terminate the cables from the upper level on one post and start the cables for the lower level on the other, preventing hardware interference. If you must use a single post, you will need to offset the holes vertically by at least 1/2 inch so the tensioning terminals do not hit each other inside the post.
Can I use the same tensioning hardware for stairs and level sections? While some universal kits exist, it is highly recommended to use specialized stair hardware or beveled washers for angled sections. Level sections typically use flat-mount terminals, whereas stairs and tier transitions require hardware that can pivot or sit at an angle (usually 30 or 35 degrees). Using flat hardware on an angle will cause the cable to bend sharply at the post entry, creating a point of weakness.
What is the maximum length for a continuous cable run across multiple levels? For residential projects using 1/8" cable, we recommend a maximum continuous run of 60 feet, including no more than two 90-degree turns or one major elevation change. Beyond 60 feet, the friction at the posts makes it nearly impossible to achieve even tension at both ends of the cable.
How much tension should be applied to cables on a tiered deck? A general rule of thumb for 1/8" 1x19 T316 stainless steel cable is to apply approximately 200 to 300 lbs of tension per cable. You can verify this using a tension meter or a "deflection test": a properly tensioned cable on a 4-foot post span should not allow a 4-inch sphere to pass through when a 50-lb weight is hung from the center of the span.
Do I need different post types for the upper and lower levels of a tiered deck? The post type depends more on the mounting surface (surface mount vs. fascia mount) than the level itself. However, "transition posts" at the edge of a tier change often need to be reinforced or have a thicker wall gauge because they act as end-posts for two different directions of tension.
Why is T316 stainless steel recommended over T304 for multi-level decks? Multi-level decks often have "micro-climates" where moisture can be trapped on lower tiers. T316 stainless steel contains molybdenum, which provides superior resistance to chloride-induced pitting and crevice corrosion, essential for complex hardware like beveled washers where moisture can accumulate.
