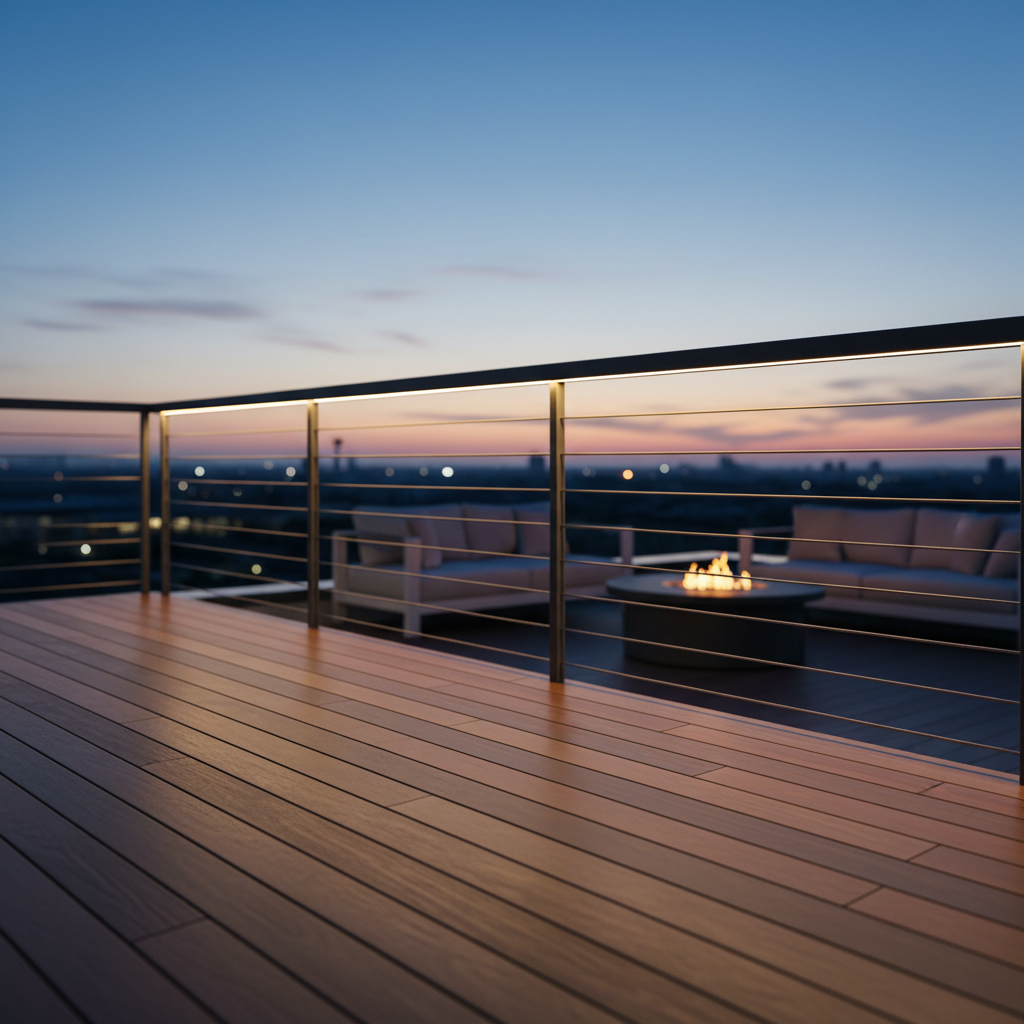

Retrofitting LED handrails with low-voltage deck lighting can deliver the clean, modern architectural look of integrated illumination without tearing down your existing deck or railing. The key is selecting weatherproof, modular systems designed for concealment, planning protected wire routes inside posts or channels, and placing transformers near GFCI-protected outlets while meeting local outdoor electrical standards.
This approach prioritizes safety-oriented, low-energy fixtures that enhance visibility for evening use rather than high-output decorative effects. When executed well, the result feels like a factory-built premium railing while avoiding visible cables or bulky add-ons.
Understanding Low-Voltage LED Deck Handrail Systems for Retrofits
Low-voltage lighting systems are commonly discussed as operating at 30 volts or less, making them a practical choice for outdoor deck upgrades. These setups typically rely on a transformer mounted near a power source and installed with outdoor-safe hardware. For retrofit projects, the focus shifts from new construction to compatibility with your current railing dimensions, post design, and available power access.
Many homeowners choose aluminum or stainless steel handrails with built-in LED channels because they allow strips to be inserted or clipped without major structural changes. This technical guide on installing LED integrated handrails explains COB versus SMD options and how channel geometry affects retrofit ease. Systems rated for exterior use incorporate weatherproof gaskets and UV-resistant materials to maintain performance in damp or exposed conditions.
Official guidance on outdoor lighting emphasizes low-energy, safety-oriented fixtures for exterior applications. Prioritizing efficient illumination helps reduce energy use while providing adequate visibility for safety during nighttime entertaining.
How to Hide Wiring in Existing Deck Railings
Concealing wires is often the biggest practical challenge in retrofits. In exposed or outdoor areas, low-voltage wiring is commonly routed in protective conduit or raceway to improve durability and safety. For railings, this means using hollow posts, pre-formed channels in aluminum handrails, or drilling controlled access points that can be sealed afterward.
Start by assessing your railing: hollow metal or composite designs with internal cavities offer the easiest paths. Surface-mounted solid posts without accessible routes increase complexity and risk. Exterior electrical connections should be treated as weather-exposed and protected with listed weatherproof parts and outdoor-rated methods. For outdoor installations, conduit-to-enclosure connections should be watertight and use listed weatherproof hubs.
When low-voltage wiring passes through occupied or service spaces, approved protective pathways may be required unless the wiring is concealed or otherwise protected. Practical techniques include routing wires down one post, along a hidden beam, or through deck framing before reaching the transformer. Our dedicated article on concealing LED deck railing wires provides step-by-step routing strategies and placement trade-offs that keep the final appearance flawless.
Community and DIY discussions consistently treat hidden wiring and transformer placement as the main friction points in low-voltage landscape lighting retrofits. Taking time to map routes before purchasing components prevents common regrets like visible cable runs or repeated sealing failures.
Choosing the Right Low-Voltage LED Handrail Lighting Kit
Retrofit compatibility depends on the railing system's dimensions, channel layout, and mounting method. Look for kits that include weatherproof LED strips, aluminum or stainless channels sized to fit standard handrails (often 5 ft or 6 ft lengths that can be cut), and modular connectors. Aluminum handrails with LED strip options are popular because they resist rust in coastal environments and accept common 12V or 24V strips.
Consider color temperature carefully. Warm LED strips (around 2700K–3000K) soften the industrial feel of metal railings and create a more inviting ambiance for outdoor living. This guide on how warm LED strips transform metal railings details selection and installation for balanced aesthetics.
Low-voltage does not automatically mean code-compliant or universally compatible with an existing railing system. Verify that the kit includes proper drivers, dimming compatibility if desired, and components listed for wet locations. For premium results, choose systems that integrate with cable railing or aluminum railing collections to maintain a cohesive modern look.
Here are practical checkpoints before buying:
- Measure internal channel width and post cavity dimensions.
- Confirm the LED strip wattage stays within transformer capacity for your total run length.
- Check that all connectors and seals carry wet-location ratings.
- Ensure the handrail profile matches your existing railing height and style for seamless appearance.
- Review local outdoor lighting standards, as some jurisdictions limit brightness or placement even for low-voltage systems.
Transformer Setup and Safe Power Connections
A common retrofit setup places the transformer near a GFCI-protected outlet and mounts it securely outdoors. Landscape lighting transformers are intended for outdoor use and should not be submerged. Mount the unit in a protected but accessible location—often on a wall, under a deck, or inside a weatherproof enclosure—to minimize wire run lengths.
Exterior connections must use weatherproof methods. Shut off power at the breaker before any wiring work, and consider consulting a qualified electrician for final connections, especially if drilling into structural members or running new circuits. Electrical safety requirements are intended to protect people working on energized systems, so de-energizing circuits and using qualified help are appropriate precautions.
For longer runs, voltage drop can cause uneven light output. Plan total wattage and distance carefully, using appropriately sized low-voltage cable. Local outdoor lighting standards can limit brightness and placement, so retrofit projects should be checked against local rules.
Weather Resistance, Durability, and Code Considerations
Outdoor wiring and connections should be planned for wet or damp conditions, using weatherproof methods and listed outdoor-rated components. In coastal or high-moisture areas, select marine-grade materials where possible to resist corrosion. Stainless steel or rust-resistant aluminum handrails perform better long-term and maintain their appearance.
Our marine-grade stainless steel standards whitepaper offers detailed guidance on alloy selection (Type 316 preferred near salt water) and compliance with the International Residential Code, including the 4-inch sphere rule for safety.
Durability also depends on proper sealing of all penetrations and using UV-resistant LED strips. Regular inspection of gaskets and connections helps prevent water intrusion that could lead to shorts or reduced lifespan. Safety lighting should prioritize efficient fixtures and adequate visibility rather than excess output.
Important Safety and Health Notice: This article discusses comfort, setup advice, and practical installation considerations for low-voltage outdoor lighting. It does not constitute electrical, medical, or safety advice. Low-voltage systems reduce shock risk but do not eliminate it. Improper installation can create fire, shock, or trip hazards. This is not a substitute for local code compliance or professional electrical work. If you experience persistent issues, have existing electrical concerns, or are unsure about any step, consult a licensed electrician or qualified professional before proceeding.
Retrofit Feasibility by Scenario
The success of a low-voltage LED handrail retrofit depends heavily on your specific deck conditions. The chart below synthesizes key scenarios into planning scores (1–5 scale) to help you quickly assess feasibility, dominant risks, and decision boundaries. Higher success likelihood and lower risk scores indicate easier retrofits; treat these as illustrative guidance derived from common retrofit patterns, not laboratory measurements.
Retrofit Feasibility for LED Handrails by Common Scenario
Heuristic scenario comparison for retrofit planning. Higher values indicate greater feasibility or stronger presence of the factor on a 1-5 planning scale.
View chart data
| Category | Success Likelihood | Primary Risk | Decision Boundary |
|---|---|---|---|
| Hollow Metal Rail | 4.0 | 2.0 | 3.0 |
| Wood with Channel | 4.0 | 2.0 | 2.0 |
| Solid Post No Route | 1.0 | 5.0 | 1.0 |
| Coastal Exposure | 3.0 | 4.0 | 2.0 |
| Nearby Power | 4.0 | 2.0 | 4.0 |
| DIY Feasible | 4.0 | 2.0 | 4.0 |
Illustrative heuristic built from the scenario_matrix and reverse_recommendation modules: values express relative retrofit feasibility, dominant risk pressure, and where decision boundaries are most visible. Use for planning and comparison, not as measured performance data.
Do not proceed with a retrofit if your setup includes solid posts with no routing path, requires long exposed cable runs, relies on improvised sealing, or involves coastal exposure with non-marine-grade materials. In these cases, a full railing replacement or professional custom solution often delivers better long-term results and avoids safety or aesthetic regrets.
Achieving a Premium Look Without Demolition
Modern outdoor living spaces benefit from combining metal textures with minimalist aesthetics. LED handrails integrated into cable or aluminum railing systems create hotel-grade results that enhance staycation appeal and property value. By concealing all wiring and using warm, even illumination, the railing appears as a seamless architectural feature rather than an add-on.
Explore complete systems that bundle LED-ready handrails with posts and hardware for consistent finishes. Many express aluminum railing kits and complete cable railing kits now include LED-compatible top rails that simplify retrofits. For specific projects, consider rust-resistant aluminum handrails with LED options available in multiple lengths.
Additional inspiration is available in guides covering modern outdoor living space ideas and hotel-grade railings for staycations.
Final Checklist and Next Steps
Before starting your retrofit:
- Map all wire routes and confirm protected pathways exist or can be added.
- Verify transformer location meets outdoor mounting and clearance rules.
- Select marine-grade or weatherproof components matched to your climate.
- Calculate total load and cable length to avoid voltage drop.
- Check local codes for any brightness, placement, or permitting requirements.
- Decide between DIY and professional installation based on your electrical comfort level.
When your existing deck already has accessible post cavities and nearby power, retrofitting low-voltage LED handrails offers one of the highest-impact upgrades for modern outdoor living. The result is sophisticated, safe ambient lighting that feels custom without the cost or disruption of a full rebuild. Choose compatible Senmit aluminum LED handrail systems and follow protected routing practices to enjoy a premium illuminated railing for years to come.
