Understanding Cable Railing Tension and Sag

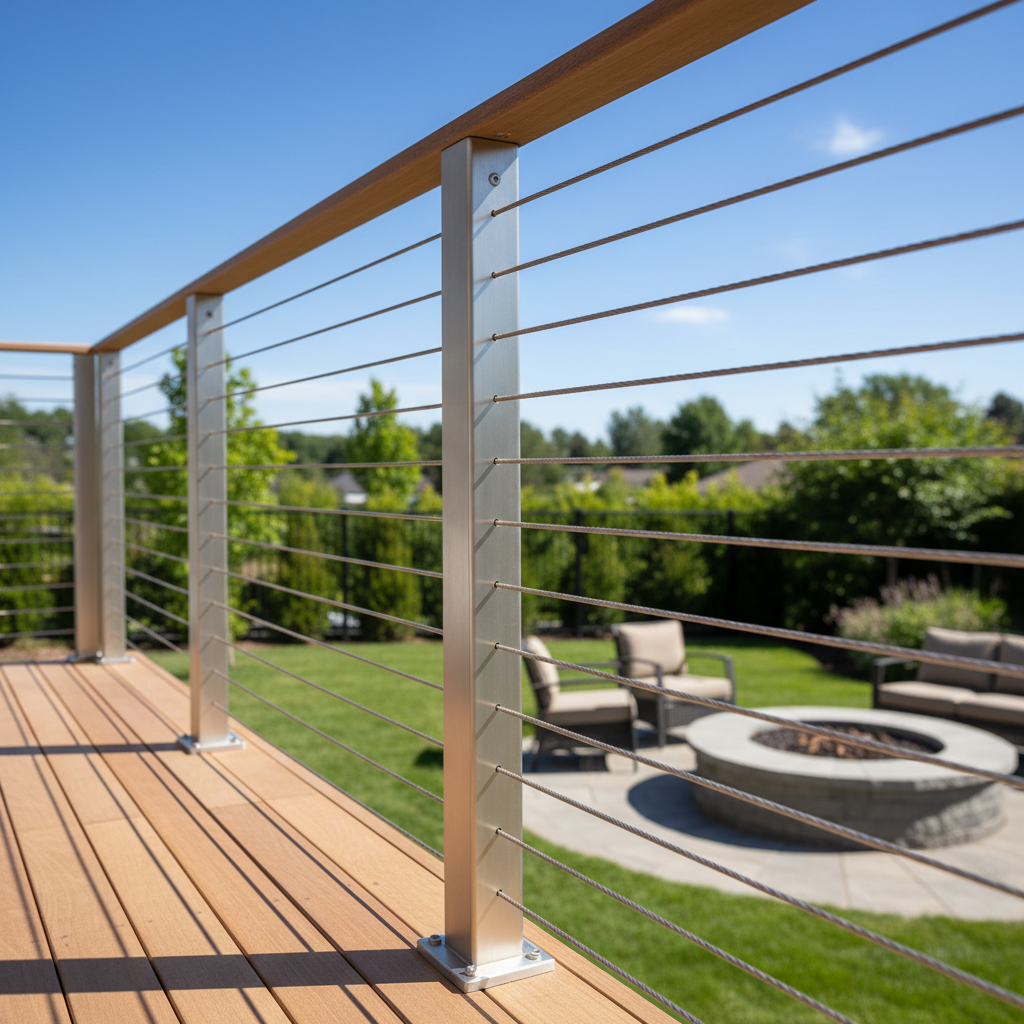

Sagging cable railings are a frequent challenge for homeowners and DIY builders. While often perceived as a simple hardware failure, persistent sag is usually a symptom of a system-wide issue involving post stiffness, span length, and environmental factors. Maintaining a tight, compliant railing requires a balance between initial tension and the structural integrity of the deck frame.
The following guide outlines how to diagnose the root causes of tension loss and provides a framework for long-term maintenance.
Important Safety and Code Disclaimer: This guide provides practical maintenance heuristics and general industry observations. It does not constitute structural engineering advice or a guarantee of code compliance. Local building codes vary significantly regarding tension requirements and safety gaps. Always consult your local building department or a licensed professional before making structural modifications.
Why Cable Railings Sag: The Primary Drivers
Cable tension is rarely static. Several variables contribute to the "slack" that develops over time:
- Structural Deflection: The most common cause. As cables are tightened, they exert hundreds of pounds of force on end posts. If the posts are not sufficiently rigid, they lean inward, causing the cables to go slack.
- Wood Creep: Wood is a natural material that undergoes "creep"—permanent deformation under a constant load. This is often exacerbated by seasonal humidity changes.
- Initial Cable Stretch: New stainless steel cables may undergo a minor "constructional stretch" as the individual wire strands settle into place under their first load.
- Thermal Expansion: Metal expands and contracts with temperature. In regions with extreme seasonal swings, cables may feel tighter in winter and looser in summer.
As noted in engineering documentation from state transportation agencies, tension must be managed within the design limits of the system. Excessive movement is not just an aesthetic issue; it can compromise the safety function of the guardrail by allowing gaps to exceed the limits defined in safety standards like the OSHA Technical Manual.
Diagnostic Checklist: Cable Stretch vs. Structural Deflection
Before attempting to tighten your railing, you must determine if the issue is the cable itself or the structure supporting it. Tightening cables on a failing structure can lead to post-warping or hardware pull-out.
Perform these three checks to locate the source of the sag:
- The Visual Plumb Test: Stand at one end of the railing and look down the line. Are the end posts perfectly vertical, or do they lean toward the center of the cable run? If they lean, you have a structural deflection issue.
- The Connection Gap Check: Inspect the base of the posts and the top rail joints. Is there visible "play" or a gap forming where the post meets the deck? Movement at the base indicates that the post mounting is insufficient for the tension load.
- The "Hand-Press" Test: Apply firm downward pressure to the center of a cable. If the cable feels slack but the posts remain stationary, it is likely a tensioning issue. If the cable feels tight but the posts flex significantly under your hand's pressure, the spans are likely too long or the posts lack reinforcement.
Safety Boundary: When to Stop DIY and Consult a Professional
- Visible cracking or splitting in wood posts at the hardware mounting points.
- Metal posts showing signs of buckling or "oil-canning."
- Mounting bolts or lag screws pulling out of the deck framing.
- The railing continues to sag significantly within weeks of a proper re-tensioning.
Engineering Heuristics for Sag Prevention
Effective sag prevention begins during the planning phase. To maintain the common safety standard of preventing a 4-inch sphere from passing through the cables under load, the following heuristics are often used by installers:
| Post Material | Recommended Max Span (Heuristic) | Rationale |
|---|---|---|
| Wood (4x4 or 6x6) | 4–5 Feet | Wood is susceptible to creep and environmental warping; shorter spans reduce the cumulative load on end posts. |
| Steel/Aluminum | 5–7 Feet | Metal offers higher rigidity, but spans should still be limited based on wall thickness and mounting method. |
Note: These values are illustrative. Actual performance depends on cable diameter (typically 1/8" or 3/16"), the number of cables, and the rigidity of the top rail. Always verify these spans against your specific hardware manufacturer's technical data.
Cable Railing Sag Prevention: Heuristic Span Thresholds by Post Type
Heuristic planning chart based on common installation practice to compare recommended maximum post spacing and relative sag risk for DIY decision-making.
View chart data
| Category | Recommended max spacing (ft) | Relative sag risk at 4 ft | Relative sag risk at 6 ft | Relative sag risk at 8 ft |
|---|---|---|---|---|
| Wood posts | 4.5 | 2.0 | 3.0 | 8.0 |
| Steel posts | 7.0 | 3.0 | 7.0 | 9.0 |
To address long spans without replacing posts, many installers use intermediate pickets. These non-structural members maintain cable spacing and reduce deflection. For more on this, see the guide on using intermediate pickets to prevent cable sag. Additionally, ensuring proper blocking for post reinforcement under the deck surface is critical for preventing post-lean.
Selecting Hardware for Long-Term Stability
The choice of hardware influences both the ease of maintenance and the system's longevity.
- Tensioning Systems: Turnbuckles provide the most significant adjustment range, which is useful for long runs. For wood posts, lag screw swage turnbuckle kits or lag screw swage tensioners are common choices.
- Metal Post Systems: Installations on steel or aluminum often utilize stainless steel turnbuckle deck toggle sets to allow for precise alignment.
- Material Grade: In coastal or high-moisture environments, Type 316 stainless steel is generally recommended over Type 304. The higher molybdenum content in 316 provides superior resistance to chloride-induced pitting. For a deeper dive into material science, refer to the marine-grade stainless steel standards overview.
Step-by-Step: Correct Tensioning Sequence
To avoid distorting your railing frame, cables must be tensioned gradually and in a specific order.
- Pre-Inspection: Ensure all threads are clean and free of debris. Use stainless steel protector sleeves where cables pass through wood to prevent the cable from "biting" into the post.
- The Center-Out Sequence: Start with the middle cable in the run. Then, alternate between the cable immediately above and the one immediately below (e.g., Cable 6, then 5, then 7). This distributes the compressive load evenly across the post.
- Incremental Adjustments: Turn the tensioner in small increments (e.g., 1/4 to 1/2 turn at a time). Do not fully tighten one cable while the others are slack.
- The "Guitar String" Rule: Cables should be firm and produce a clear "thrum" when plucked, but they should still have a small amount of give when pressed firmly. Over-tensioning can strip threads or cause wood posts to fail prematurely.
Troubleshooting and Maintenance
If a railing continues to sag despite maintenance, use the following table to identify the necessary intervention:
| Scenario | Likely Cause | Recommended Action |
|---|---|---|
| Cables are slack; posts are rigid. | Natural stretch or hardware settling. | Re-tension: Follow the center-out sequence. |
| Cables are slack; end posts lean inward. | Structural deflection (weak posts). | Reinforce: Install a continuous top rail or add structural blocking at the post base. |
| Hardware is at max adjustment; cable is loose. | Cable was cut too long or stretched. | Shorten: Trim the cable and install a new swage terminal. |
| Lag screws are pulling out of wood. | Wood rot or over-tensioning. | Relocate: Move the mounting point to sound wood or use through-post bolts. |
Seasonal Maintenance
Because materials expand and contract, a seasonal cable railing maintenance checklist is recommended. Checking tension in the spring and fall—when temperature fluctuations are most significant—helps ensure the system remains within safe operating parameters. For long-term care, including cleaning and corrosion prevention, consult the outdoor cable railing maintenance manual.
Summary of Long-Term Performance
Maintaining a cable railing system is a matter of managing the physics of tension and the characteristics of your building materials. By respecting span limits, choosing appropriate 1/8" cable railing hardware, and performing periodic inspections, it is possible to maintain a safe and aesthetically pleasing railing for many years.
