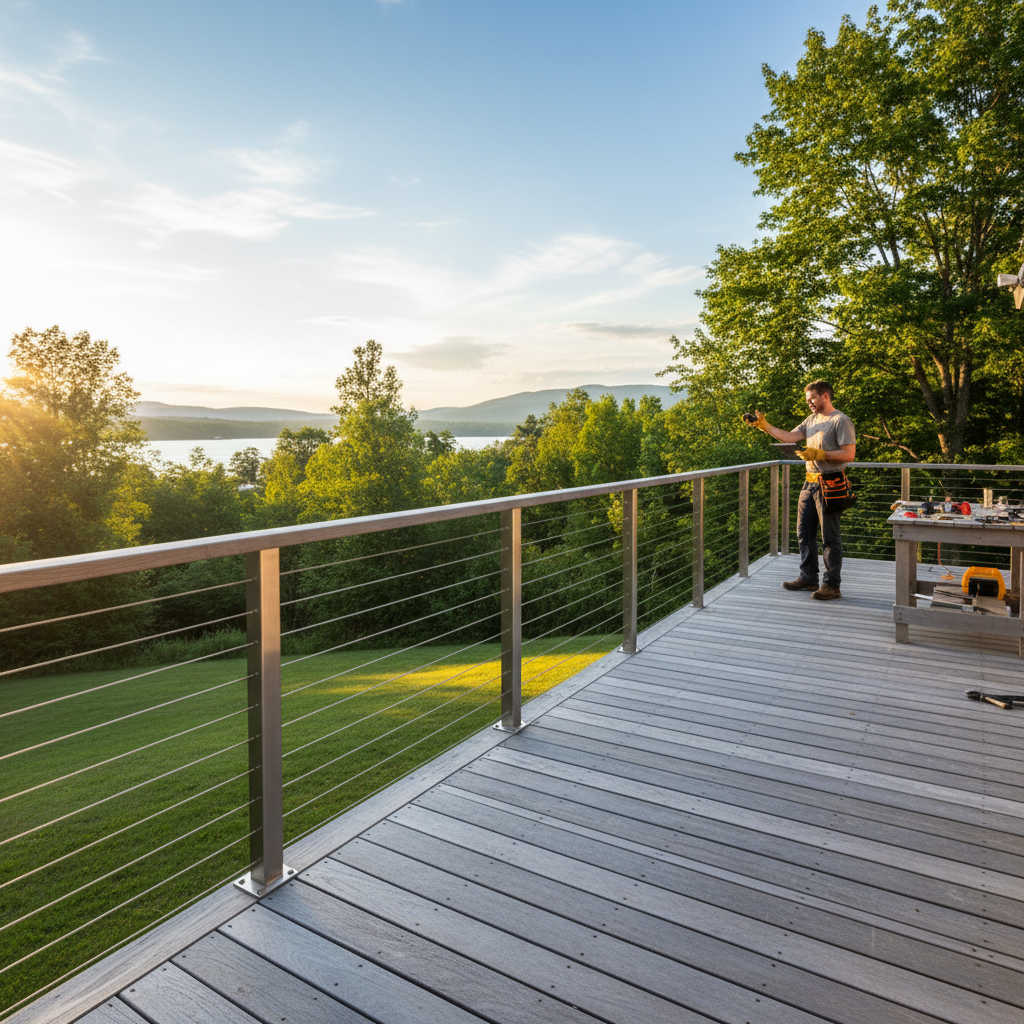

2026 Masterclass: Flawless DIY Cable Railing Execution
Installing your own cable railing on a wood deck can deliver a sleek, unobstructed view while staying within a reasonable budget—provided you prioritize local code compliance, accurate post spacing, and proper tensioning from the start. In 2026, successful DIY projects hinge less on the cable itself and more on understanding jurisdiction-specific rules, selecting compatible T316 marine-grade hardware, and following a repeatable installation sequence that prevents sag or inspection failures.
Project Planning Resources
- DIY Cable Railing Kits Explained: What to Look for in T316 Hardware, Posts, and Cables
- Cable Railing Code Requirements: A Guide for DIY Homeowners
Understanding 2026 Cable Railing Code Requirements
Cable railing systems must meet the same guardrail standards as any other infill material. While specific numbers vary by municipality, residential codes generally follow benchmarks set by the International Residential Code (IRC). These typically require a minimum height of 36 inches (often 42 inches for commercial or specific local jurisdictions) and limit openings so that a 4-inch sphere cannot pass through at any point.
Because cable is flexible, many local codes treat it strictly as guard infill and impose post spacing limits to prevent the "ladder effect" or excessive deflection. Always begin by checking your local building department. As this Wisconsin SPS 325 code document illustrates, cable railing is subject to height, opening, and structural review. Similarly, the Sheboygan WI stairs and railings guide shows how municipalities explicitly apply maximum opening rules to cable infill.
Standard Code Benchmarks (Verify Locally):
- Guard Height: Measured from the deck surface to the top of the rail.
- The 4-Inch Sphere Rule: No gap—including the space between cables when pushed apart—should allow a 4-inch sphere to pass.
- Structural Load: Posts and top rails are typically required to withstand a 200 lb concentrated load applied at the top.
- Deflection Limits: Inspectors often test tension by ensuring cables do not deflect beyond the 4-inch limit under manual pressure.
Choosing the Right Stainless Steel Cable Railing Kit for Your Wood Deck
For wood decks, the majority of successful DIY projects use T316 marine-grade stainless steel. The molybdenum content in T316 provides superior resistance to chloride-induced pitting compared with T304, making it the standard choice near pools, coastal areas, or regions with heavy road salt exposure. Our marine-grade stainless steel standards whitepaper provides more detail on alloy selection.
When comparing kits, focus on three variables: cable diameter (1/8 inch is the residential standard), post spacing capability, and included tensioning hardware. A complete Senmit 36" fascia mount all-in-one cable railing kit or surface mount version can simplify ordering by bundling posts, cables, and tensioners.
Estimated Cost Comparison: DIY Kit vs. Professional Install
- DIY Materials: A typical 20–30 foot deck run using quality T316 components and a hydraulic crimper might cost $1,200–$2,500 (based on 2026 market estimates for complete kits).
- Professional Labor: Hiring a contractor often adds $1,500–$4,000 to the project total.
- The Trade-off: Labor savings are significant, but DIYers must account for the one-time cost of specialized tools. See our ultimate checklist for buying a DIY cable railing kit for a full breakdown.
Planning Post Spacing, Layout, and Blocking
Post spacing directly influences how rigid the cable field feels. Wider spacing increases deflection under load, even at high tension.
Expert Rule of Thumb: For most residential wood decks, keeping posts no more than 4–6 feet apart is a common pattern for maintaining the 4-inch sphere rule. If your posts are further apart, you may need "intermediate" or "spacer" posts that don't support the top rail but keep cables aligned.
Our guide to DIY cable railing post spacing, blocking, and structural confidence provides advice on when to add blocking between joists. On existing decks, blocking is often required to prevent posts from "bowing" inward under the cumulative tension of 10+ cables.
Essential Tools and the Role of the Hydraulic Crimper
The real differentiator in a professional-looking DIY job is the crimping method. While hand swaging tools exist, a 10-ton hydraulic cable crimper delivers consistent, flat crimps that prevent the cable from slipping out of the fitting under high tension.
How to use the crimper effectively:
- Match the Die: Ensure the die size matches your cable diameter (e.g., 1/8").
- The Double Crimp: For maximum security, we often recommend two crimps per fitting, slightly offset from each other.
- Sequence: Crimp the "fixed" end first, then pull the cable through the intermediate posts before crimping the "tensioning" end.
Our articles on hydraulic crimper versus hand swaging and mastering the hydraulic crimper walk through these techniques in detail.
Step-by-Step Installation Sequence
- Verify Code & Permits: Submit your layout to the local building department to ensure your post spacing meets their specific deflection interpretation.
- Install Posts & Blocking: Use wood post tension kit components. Ensure posts are plumb; even a slight lean will be magnified once cables are tightened.
- Route and Terminate: Thread cables through all intermediate posts. Crimp the first end, then move to the tensioning side.
- Initial Tensioning: Start from the middle cable and work your way out (up and down) to distribute the load evenly across the post. Our lag screw swage turnbuckle kit is designed for this wood-post workflow.
- The Pluck Test: Once tightened, each cable should produce a consistent low tone when plucked, similar to a guitar string. If one sounds dull or "thuds," it likely needs more tension.
- Final Inspection: Use a 4-inch sphere (or a template) to check gaps between cables at the center of the span.
Follow the complete tool guide for DIY cable railing for visual aids of each stage.
Illustrative Decision Framework
Illustrative Decision Framework - 2026 DIY Cable Railing
Scenario-based decision framework for DIY cable railing approach.
View chart data
| Category | DIY Basic | DIY Premium | Hire Pro |
|---|---|---|---|
| Simple inland wood deck | 8.0 | 2.0 | 0.0 |
| Moderate inland deck | 4.0 | 7.0 | 2.0 |
| Coastal or high-exposure deck | 1.0 | 6.0 | 8.0 |
| Stairs or multi-level layout | 1.0 | 4.0 | 9.0 |
| Complex layout + strict code risk | 0.0 | 2.0 | 10.0 |
This chart models how project conditions shift the optimal path. Simple inland level wood decks usually favor a basic DIY kit. Coastal exposure or complex stairs increase the value of premium T316 hardware and specialized hydraulic tools.
Common DIY Mistakes to Avoid
Based on common patterns seen in residential retrofits, avoid these pitfalls:
- Skipping the Blocking: Wood posts will pull toward each other under tension if not properly braced at the base.
- Over-tensioning: You can actually pull a wood post out of plumb if you over-tighten. Tension should be firm, not "violin-string" tight.
- Mixing Metals: Never use zinc-plated or galvanized tools/fasteners with stainless steel, as this can trigger galvanic corrosion.
Myths vs. Reality
- Myth: Stainless steel is "maintenance-free." Reality: It is "low maintenance." It still requires occasional cleaning to maintain its protective oxide layer.
- Myth: Any 1/8" cable works. Reality: 1x19 construction cable is preferred for railings because it is stiffer and less prone to stretching than 7x7 or 7x19 aircraft cable.
Long-Term Maintenance
Even a high-quality installation experiences minor settling. Plan to inspect cables yearly. Use your tensioning tool to restore firmness if thermal movement or wood shrinkage has caused slight slack. In coastal zones, rinse the hardware with fresh water periodically to remove salt deposits that can lead to "tea staining."
When to Call a Professional
Consider skipping the DIY route if your project involves:
- Complex Stair Geometries: Calculating drill angles for stairs can be mathematically intense for beginners.
- Structural Uncertainty: If your existing deck frame shows signs of rot or instability.
- Strict Inspectors: Some jurisdictions require stamped engineering drawings for cable systems.
For most standard decks, a premium kit from the complete cable railing kit collection or express level section kits provides the necessary components to achieve a professional result safely.
Health and Safety Note: This guide discusses installation practices for informational purposes. Cable railing involves physical labor and risks associated with heights. If you have pre-existing physical conditions or face complex structural questions, consult a licensed professional. Local building officials make the final determination on code compliance.
Executing a DIY cable railing project in 2026 comes down to preparation. Verify your local code, choose marine-grade T316 components, space posts conservatively, and use a quality hydraulic crimper. Start your journey by gathering the right tools from the tool collection and following your kit’s manual to the letter.
