Getting a professional, sag-free cable railing on your deck doesn't require hiring a contractor. The key is mastering the hydraulic crimper to create secure, uniform swages on stainless steel fittings that hold tension without slipping. When used correctly with the right sequence and verification steps, this tool helps DIY installers achieve code-compliant results that look factory-finished and stay tight for years.
Cable railing installations are safety-critical and must satisfy local guard and railing requirements, including load and inspection expectations. Incorrect crimping can lead to slippage, uneven tension, visible sag, failed inspections, or worse. This guide walks through selecting the right hydraulic crimper, proper technique for swaging stainless steel cable, preventing common DIY errors, and verifying your work so your railing meets both safety standards and aesthetic expectations.
Why a Hydraulic Crimper Beats Manual Tools for Cable Railing
A hydraulic crimper delivers consistent, high-force compression that creates flat, secure swages on stainless steel ferrules or threaded terminals. Unlike hammer-on or basic hand crimpers, the hydraulic mechanism reduces the risk of under-crimping or deforming the cable strands, which is a frequent cause of long-term sag.
For most residential 1/8-inch and 3/16-inch cable railing projects, a 10-ton hydraulic model provides enough force for reliable results without requiring excessive physical effort. These tools typically come with interchangeable dies sized specifically for cable railing fittings, a built-in cable cutter, and sometimes a drill bit for post preparation.
As this official cable rail guards bulletin explains, cable rail guards have specific post-spacing and top-rail requirements, so sag control starts with the structure, not just the cable. A hydraulic crimper helps you maintain that structural integrity at the termination points.
Many cable railing kits use swage-style or threaded tensioning hardware to improve stability and final alignment. Pairing the right crimper with marine-grade T316 stainless steel fittings ensures corrosion resistance in outdoor environments while creating terminations that can handle the tension loads needed to keep cables straight.
Choosing the Right Hydraulic Crimper and Supporting Tools
Not every crimper works well for cable railing. Look for models rated for 1/8-inch and 3/16-inch stainless steel cable with dies that produce a clean, oval or hexagonal crimp rather than crushing the fitting. The Senmit 10 Ton Hydraulic Cable Crimper Hand Tool for 1/8, 3/16 Stainless Steel Cable Railing Fittings offers a heavy-duty head designed precisely for this application and includes the necessary accessories.
For lighter jobs or tighter budgets, the Senmit Hydraulic Cable Crimper for 1/8, 3/16 Stainless Steel Cable Railing Fitting (HC02) provides similar performance with an included cable cutter and drill bit.
Supporting tools are equally important:
- A dedicated cable cutter for clean cuts without fraying
- Calipers or a crimp gauge to verify compression depth
- A torque wrench for final tensioning hardware
- Safety gloves and eye protection
Tool Selection Checklist
- Confirm the crimper's tonnage (8–12 tons is ideal for residential cable railing)
- Match die sizes exactly to your cable and fitting diameter
- Choose T316 marine-grade fittings to match the cable
- Verify the tool includes a pressure relief valve to prevent over-crimping
- Budget for a separate cable cutter if not included
Before purchasing, consider your specific project. Longer runs or stair applications may benefit from heavier-duty models that maintain consistent pressure across multiple crimps.
Step-by-Step: How to Use a Hydraulic Crimper for Cable Railing
Proper technique prevents the two most common failures: under-crimped fittings that slip under tension and over-crimped ones that damage the cable strands.
-
Prepare the cable and fittings. Cut the stainless steel cable to length using a sharp cable cutter. Slide the ferrule or threaded terminal onto the cable end. For stemball swages or lag screw swage tension turnbuckles, ensure the cable is fully seated.
-
Position the fitting in the die. Place the fitting squarely in the crimper's appropriately sized die. The fitting should sit centered so the crimp is uniform. For threaded terminal studs, align carefully to avoid damaging the threads.
-

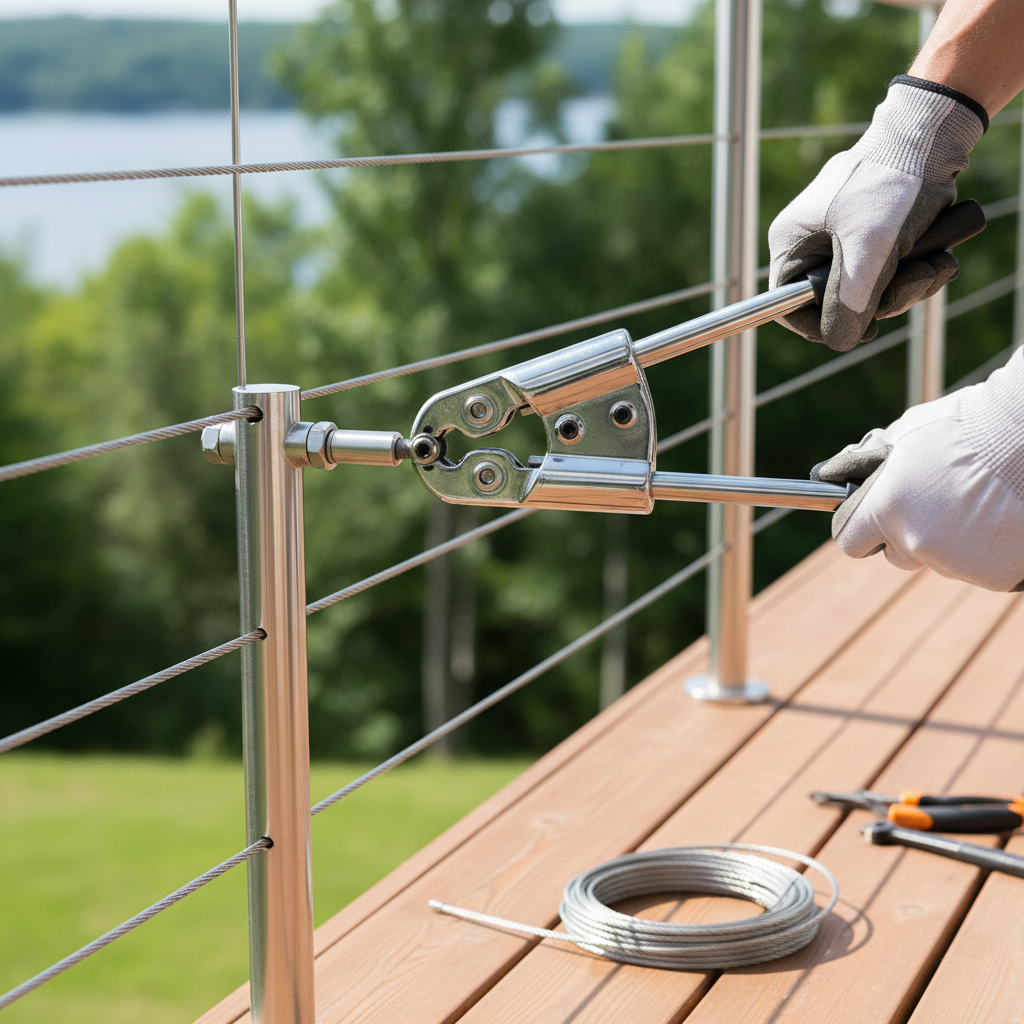

Make the crimp. Pump the hydraulic handle steadily until the tool reaches full pressure and the relief valve clicks. Avoid partial pumps or jerking motions that create uneven compression. Most fittings require two or three evenly spaced crimps along the length.
-
Inspect immediately. A proper crimp should show even flattening without cracks, sharp edges, or visible gaps between the cable and fitting. The cable strands should remain intact and not extrude from the ends.
Follow the system’s installation sequence and use the provided tensioning tools, because cable routing and final adjustment affect alignment and tension. Route all cables through posts first, install the fixed end, then use your hydraulic crimper on the tensioning end after initial hand-tightening.
For best results with Senmit hardware, reference the detailed steps in our Ultimate DIY Cable Railing Guide.
Preventing Cable Railing Sag: Tensioning After Crimping
Crimping is only one part of the equation. Sag occurs when initial tension is too low, when posts flex, or when thermal expansion isn't accounted for. Proper crimps create the foundation that allows effective tensioning.
Some jurisdictions require cable railing to be tensioned to a defined minimum, so installers should confirm local requirements before finishing. While exact numbers vary, many areas target enough tension to limit deflection to within a 4-inch sphere rule under load.
Practical Tensioning Sequence
- Install all cables loosely first
- Tension the top and bottom runs first to stabilize the posts
- Work inward, tensioning middle cables last
- Return to each cable for a second pass after the full set has been tensioned once
- Recheck after 24–48 hours and again after the first weather cycle
Our guide on how to stop cable railing sag provides proven tensioning techniques and hardware choices that work well with hydraulically crimped fittings.
Turnbuckles or lag screw swage tension turnbuckles paired with properly crimped ends maintain tension better than swageless systems in many DIY setups. The Senmit Lag Screw & Swage Tension Turnbuckle 30 Pair offers reliable adjustment after the hydraulic crimp is complete.
Verifying Crimp Quality and Tension Before Final Inspection
Never assume your crimps are good. Use these verification methods:
- Visual check: Uniform shape, no cracks, cable not pulling out
- Tug test: Apply moderate hand pressure; the fitting should not slide
- Calipers: Measure crimp diameter against manufacturer specifications
- Tension gauge: Confirm cables resist deflection appropriately
- Load test: Gently push on mid-span cables to check for excessive give
Proper tensioning affects both safety and appearance, so installers should recheck tension after the first pass and before final trim-out. Document your tension checks if preparing for an inspection.
Common DIY Mistakes That Compromise Structural Integrity
Avoid these frequent errors that turn a good crimping job into a failing railing:
- Crimping before routing all cables and installing the top rail
- Using the wrong die size or mixing cable and fitting diameters
- Over-crimping, which weakens the cable strands internally
- Inconsistent pressure across multiple crimps on the same fitting
- Skipping the second tensioning pass after initial settling
- Ignoring post stability—loose posts will create sag regardless of crimp quality
Our article on DIY Cable Railing Fails details the top five installation mistakes and exactly how to avoid them.
Don't Buy or Use a Hydraulic Crimper If
- Your project uses cable thicker than 3/16 inch (requires industrial equipment)
- You're installing a code-exempt interior decorative application where appearance trumps load requirements
- You cannot commit to proper tensioning follow-up after crimping
- Local codes prohibit cable railing entirely
Illustrative Thresholds for Cable Railing Crimp Quality and Sag Risk
Illustrative thresholds for cable railing crimp quality and sag risk
Illustrative thresholds based on common industry guidelines and manufacturer practices.
View chart data
| Category | Crimper suitability | Quality / tension readiness | Sag risk if missed |
|---|---|---|---|
| Tool choice | 5 | 4 | 1 |
| 1/8 in cable | 4 | 4 | 2 |
| 3/16 in cable | 4 | 4 | 2 |
| Sequence order | 5 | 5 | 1 |
| DIY error risk | 2 | 2 | 5 |
Derived from writer evidence on cable size compatibility, tensioning sequence, and common DIY mistakes, then normalized into a 1–5 planning scale for comparison. The values are heuristic and meant for decision support, not measured performance data.
This chart illustrates relative suitability and risk across key factors using a 1–5 planning scale. Higher values for suitability and readiness are better; higher values for sag risk indicate greater potential problems. These are heuristic thresholds derived from standard practices, not laboratory measurements. Use them to guide planning and double-check your sequence and tool choice.
Final Safety and Code Reminder
This article discusses comfort, setup advice, and practical installation techniques for cable railing systems. It does not constitute engineering, structural, or medical advice. Cable railing is a safety-critical component of your deck or stairs. Always verify compliance with current local building codes, obtain necessary permits, and consult qualified professionals if you have any doubts about structural integrity or if persistent issues arise. When in doubt, hire a licensed contractor.
Mastering your hydraulic crimper removes much of the DIY liability in cable railing projects. By following proper technique, using quality T316 stainless steel components, maintaining the correct installation sequence, and verifying both crimps and tension, you can create a beautiful, secure, and code-compliant railing that stays tight season after season.
For complete project planning, see our DIY Cable Railing Kits guide or explore the full range of cable railing hardware. Ready to start your install? Check the complete cable railing kits or wood post railing systems that work seamlessly with hydraulic crimping tools.
