Summary
Modern metal railing systems serve as a critical intersection of structural necessity and high-end aesthetic intent, requiring architects to balance material science, stringent building code compliance, and long-term durability. This guide provides a technical framework for specifying cable, rod, and glass systems, ensuring that professionals can deliver safe, transparent, and cost-efficient designs for both residential and commercial projects in 2026.
Key Takeaways
- Material Specification: Prioritize Type 316 stainless steel for coastal environments to prevent chloride-induced pitting; Type 304 remains a standard for controlled interior applications.
- Regulatory Compliance: Adherence to the 4-inch sphere rule requires precise cable tensioning and post spacing to account for deflection under load, as mandated by the International Building Code (IBC).
- Digital Workflow: Integrating Building Information Modeling (BIM) at Level of Development (LOD) 300 or higher is essential for modern coordination and clash detection in complex railing geometries.
- Value Engineering: A comprehensive life-cycle cost analysis reveals that while metal systems have higher initial costs than wood, their estimated 25-year maintenance profile offers superior ROI in commercial settings.
The Evolution of Modern Architectural Railing Systems

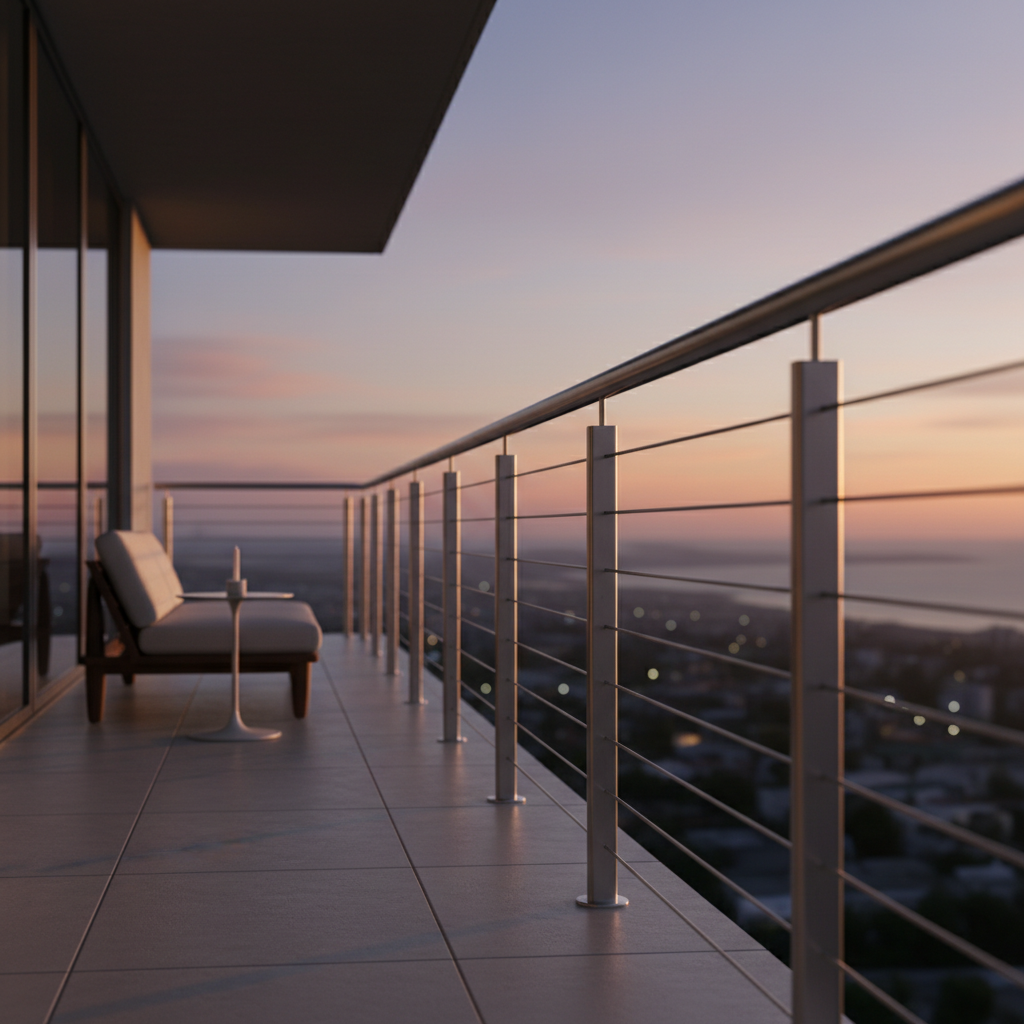

In the architectural landscape of 2026, the demand for "invisible" boundaries has never been higher. Modern metal railing systems have evolved from purely functional safety barriers into sophisticated design elements that define the character of a space. Whether it is the industrial chic of a black powder-coated aluminum system or the nautical precision of marine-grade cable, these systems are now specified as integral components of the building envelope.
The shift toward minimalism has pushed manufacturers to innovate with slimmer profiles and higher-strength alloys. Architects are no longer just choosing a "fence"; they are specifying a system that must withstand specific lateral loads while maintaining a visual lightness that complements contemporary glass-heavy facades. This evolution requires a deeper understanding of how different metals interact with their environment and the structural systems they are anchored to.
Specifying Materials: The Science of Alloy Selection
When drafting specifications for architectural metalwork, the choice of alloy is the most significant factor in determining the system's lifespan. Stainless steel remains the gold standard for high-traffic and exterior applications due to its inherent corrosion resistance and structural rigidity.
For projects located within five miles of a coastline or in high-humidity environments, Type 316 stainless steel is the industry recommendation. The addition of 2-3% molybdenum in Type 316 provides critical resistance to chloride-induced pitting. For a deeper technical dive into these metallurgical differences, architects should consult the marine-grade stainless steel standards and specifications whitepaper, which examines the role of molybdenum and the application of ISO 9223 corrosivity categories.
In contrast, Type 304 stainless steel is often sufficient for inland residential projects or climate-controlled interiors. While it offers excellent strength, it lacks the chemical resistance required for harsh exposures. Understanding the 304 vs 316 stainless steel comparison for architectural applications is vital for value engineering, allowing designers to allocate budget where it is most needed.
Technical Note: Material selection is ideally based on the ISO 9223 corrosivity category of the site. We generally recommend Type 316 for categories C3 through C5 (medium to very high corrosivity) and Type 304 for C1 and C2 (very low to low). This heuristic ensures longevity while preventing over-specification.
Material Performance Comparison Table
| Feature | Type 316 Stainless Steel | Type 304 Stainless Steel | Architectural Aluminum |
|---|---|---|---|
| Corrosion Resistance | Excellent (Marine Grade) | Good (Inland/Interior) | High (with Powder Coat) |
| Structural Strength | High | High | Moderate |
| Maintenance Need | Low | Moderate | Low |
| Typical Finish | Brushed / Polished | Brushed / Polished | Powder Coated |
| Relative Cost | Premium | Standard | Economical |
Structural Integrity and Code Compliance
Safety is the primary driver of railing design, governed by the International Building Code (IBC) for commercial projects and the International Residential Code (IRC) for dwellings. The most critical consideration is the 4-inch sphere rule, which dictates that no opening in the railing can allow a 4-inch diameter sphere to pass through.
For cable railing systems, this rule is particularly nuanced. It is not enough to simply space the cables 3 inches apart; the specifier must account for cable deflection. Under a 50-lb concentrated load, the cables must not spread enough to violate the 4-inch rule. This necessitates rigid intermediate posts (typically every 3 to 4 feet) and high-tension fittings. Detailed guidance can be found in our resource on cable railing building codes and regulatory considerations.
Furthermore, the railing must be able to withstand a concentrated load of 200 lbs applied in any direction at the top rail, or a uniform load of 50 lbs per linear foot. For architects, the anchorage of the posts—whether surface mounted or fascia mounted—is as important as the railing itself.
Field Case Study: Coastal Hospitality Application
- Project Type: Boutique Hotel Balconies (San Diego, CA)
- Environment: ISO 9223 Category C4 (High Corrosivity)
- Material Specified: Type 316 Stainless Steel with #8 Mirror Finish
- Observation: After 48 months of exposure, independent inspection showed zero structural pitting and minimal surface "tea staining," which was easily removed during standard quarterly freshwater rinsing. In contrast, adjacent Type 304 fixtures showed visible oxidation within 12 months, requiring professional remediation.
Design Configurations: Balancing Transparency and Safety
Architects often face a choice between horizontal and vertical infill. Horizontal cable railing is the most popular choice for modern decks because it mimics the horizon line, offering maximum transparency. While some jurisdictions historically viewed horizontal railings as "climbable," this "ladder effect" concern has been largely removed from the national model codes (IBC/IRC) since the early 2000s.
Still, for specific applications like schools or high-occupancy commercial spaces, vertical infill may be preferred for perceived safety or local ordinance compliance. Evaluating vertical versus horizontal cable railing design considerations helps architects navigate these aesthetic and regulatory trade-offs early in the schematic design phase.
BIM Integration and Digital Specification Workflows
In 2026, leading architectural firms utilize BIM objects to ensure that railing systems are accurately represented in the digital twin of the building. Specifying at LOD 300 ensures that the geometry includes accurate post sizes, mounting plates, and handrail profiles, which is crucial for clash detection with structural beams or HVAC ducting in commercial stairs.
Parametric modeling allows architects to quickly adjust post spacing and cable counts to meet code while maintaining the desired visual rhythm. When selecting a manufacturer, professionals should look for those providing Revit (.rfa) or ArchiCAD (.gsm) files that include metadata for material finishes and structural performance data.
Life-Cycle Cost Analysis: Long-Term Value Engineering
While the initial capital expenditure for a modern metal railing system is higher than traditional wood, the life-cycle cost (LCC) often tells a different story.
LCC Model Assumptions: Our analysis assumes a 100-linear-foot commercial installation with a 3% annual inflation rate for labor and materials.
- Initial Material & Installation: Metal systems require skilled labor for swaging and tensioning.
- Maintenance Costs: Wood requires annual staining or sealing; stainless steel requires only periodic cleaning with mild soap.
- Durability & Replacement: Metal systems are estimated to last 25-50 years, whereas wood may require partial replacement every 10-15 years.
Data suggests that for commercial properties, the "break-even" point for stainless steel vs. wood is often reached within 7 to 10 years. For more on this, see our analysis of metal railing lifespan and maintenance requirements.
Architect's Specification Checklist
- [ ] Site Corrosivity: Identified ISO 9223 category and selected appropriate alloy (304 vs 316).
- [ ] Code Compliance: Verified 4-inch sphere rule compliance including cable deflection.
- [ ] Structural Anchorage: Specified mounting hardware compatible with the substrate (concrete, steel, or wood).
- [ ] ADA Requirements: Ensured handrail graspability (1.25" to 2" diameter) and continuity for stairs and ramps.
- [ ] Finish Specification: Defined brushed (#4), polished (#8), or powder coat (RAL color).
- [ ] BIM Coordination: Downloaded and placed accurate BIM objects for clash detection.
Cluster Map
| Topic Area | Resource |
|---|---|
| Design Inspiration | 6 Trending Deck Railing Ideas for 2026 |
| Technical Installation | How to Build Surface Mount Cable Deck Railing Posts |
| Specialized Design | The Ultimate Guide to Floating Stairs and Their Types |
| Regional Compliance | Is Cable Railing Legal in Canada? A Comprehensive Guide |
| Cost Management | Is Cable Railing Cheaper Than Wood? A 2026 Cost Guide |
FAQ
What is the maximum recommended post spacing for a cable railing system? For most residential and commercial applications, the maximum spacing between structural posts should not exceed 4 feet. This is a heuristic intended to minimize cable deflection and ensure that the 4-inch sphere rule is maintained even when the cables are under load.
Does cable railing meet ADA requirements for commercial projects? Cable railing itself is an infill and can be part of an ADA-compliant system, provided the handrail meets specific criteria: continuous, graspable (typically 1.25 to 2 inches in diameter), and mounted at a height between 34 and 38 inches.
How do I specify the correct tension for stainless steel cables? Tension requirements vary by cable diameter and run length, but a common rule of thumb is to tension 1/8" 1x19 cables to approximately 200-300 lbs. Note: This is an estimate; actual tension must be calibrated based on post rigidity and deflection limits. It is essential to specify a tensioning sequence—starting from the middle cables and working outward—to prevent the end posts from bowing.
Can I mix different metals, such as aluminum posts with stainless steel cables? Yes, but it requires careful consideration of galvanic corrosion. When stainless steel and aluminum come into contact in a moist environment, the aluminum can act as an anode. To prevent this, specify isolation bushings or ensure the aluminum is high-quality powder-coated, which acts as a dielectric barrier.
What is the difference between brushed and polished finishes? A brushed finish (#4) provides a muted, satin appearance and is excellent at hiding fingerprints. A polished finish (#8 or mirror finish) is highly reflective and provides maximum corrosion resistance because the smooth surface leaves no microscopic "nooks" for salt or pollutants to settle in.
References
Government / Standards / Regulators
- International Building Code (IBC) - Chapter 10: Means of Egress
- International Residential Code (IRC) - Section R312: Guards and Handrails
- ASTM A240/A240M: Standard Specification for Chromium and Chromium-Nickel Stainless Steel
- ADA Standards for Accessible Design - Section 505: Handrails
Industry Associations / Whitepapers
- AISC Design Guide 34: Steel-Framed Stairway Design
- Marine-Grade Stainless Steel Standards for Residential Cable Railing: A Technical Whitepaper
- ISO 9223: Corrosion of Metals and Alloys — Classification
Professional Disclaimer: This guide is provided for informational and educational purposes only. While based on industry standards and manufacturer experience, it does not constitute engineering advice. All railing designs, especially those involving structural safety and code compliance, must be reviewed and approved by a licensed Professional Engineer (PE) or Architect of Record in accordance with local building codes. Senmit is a manufacturer and supplier of railing components; use of this content implies acknowledgment of these professional boundaries and the brand's commercial interest in the systems described.
