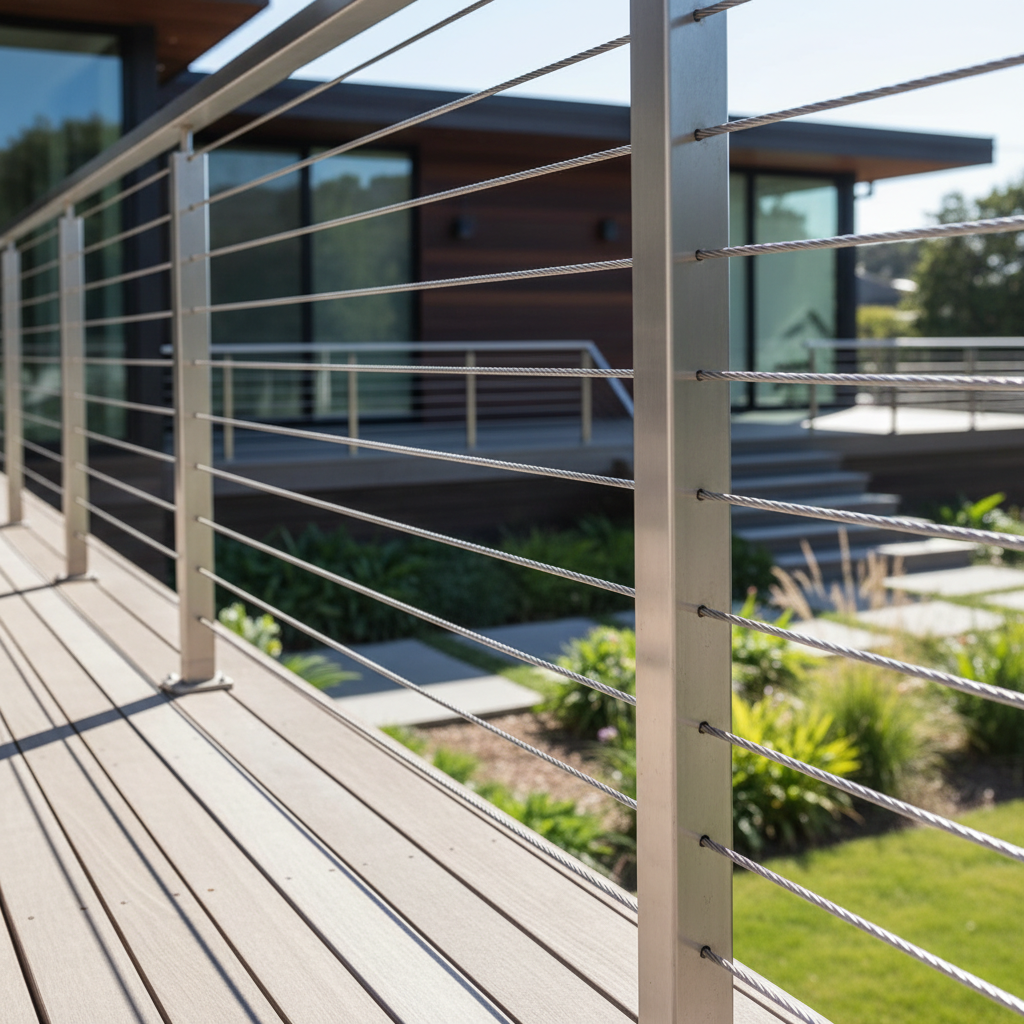

Modern cable railing system showing professional engineering and safety compliance.

Cable Railing Engineering & Safety: The Complete Resource

March 13, 2026

Summary

Designing a safe cable railing system in 2026 requires a rigorous integration of International Residential Code (IRC) compliance, structural load engineering, and material science. This guide provides a technical framework for homeowners and contractors to ensure that horizontal cable systems meet the 4-inch sphere rule, resist 200-pound concentrated loads, and maintain long-term tension through proper post-moment connections and hardware selection.

Cluster map

Key takeaways

Code Compliance: Systems must adhere to the "4-inch sphere rule," which typically necessitates a 3-inch center-to-center cable spacing to account for deflection under load.
Structural Integrity: End posts must be engineered to withstand cumulative tension forces that can exceed 3,000 pounds across a full railing section.
Material Selection: Marine-grade T316 stainless steel is the baseline standard for safety, particularly in coastal environments where chloride-induced pitting can compromise structural wire.
Maintenance: Safety is not a "set and forget" feature; annual tension checks and hardware inspections are required to prevent cable sag and potential entrapment risks.

Engineering the Safe Cable Railing: Structural Fundamentals

The safety of a cable railing system is fundamentally determined by its ability to maintain tension and resist deflection. Unlike traditional wood or glass balusters, cable railing is a dynamic system where the tension of the infill exerts constant lateral force on the end posts. In 2026, engineering best practices emphasize the "System Integration" approach, where the top rail, posts, and cables are treated as a single structural assembly rather than independent components.

When planning your layout, the most critical engineering factor is the moment connection at the base of your end posts. Because the cables pull inward, the end posts act as levers. Without proper reinforcement or a robust top rail to act as a compression member, end posts can lean, causing the cables to lose tension and fail the safety inspection. For a standard 36-inch residential height, a typical 10-cable run requires each cable to be tensioned to approximately 200–300 pounds. This creates a cumulative force of 2,000 to 3,000 pounds on the terminal posts.

Logic Summary: These tension estimates assume a standard 1/8-inch 7x7 stainless steel cable. Higher tension may be required for longer spans to keep deflection within the 4-inch limit, but exceeding 400 pounds per cable can risk structural damage to wood posts or hardware failure.

Navigating Building Code Compliance and the 4-Inch Rule

The International Residential Code (IRC) and International Building Code (IBC) are the primary standards governing railing safety. The most famous requirement is the "4-inch sphere rule," which states that the opening between railing components must be small enough that a 4-inch sphere cannot pass through. While this sounds simple, cable railing presents a unique challenge: deflection.

A cable that is spaced exactly 4 inches apart will easily deflect to 5 or 6 inches when pushed, creating a safety hazard for children. To pass inspection, most professionals use a 3-inch or 3.125-inch center-to-center spacing. This "pre-compensation" ensures that even under a 50-pound outward force, the gap never expands beyond the 4-inch limit. For a deeper dive into these regulations, homeowners should consult our guide on building code requirements for cable railing safety.

Standard Code Requirements for Residential Railings (2024-2026)

Requirement	Specification	Engineering Note
Minimum Height	36 Inches (Residential)	Measured from the deck surface to the top of the handrail.
Max Cable Spacing	3.125 Inches (Center-to-Center)	Compensates for cable deflection to satisfy the 4-inch sphere rule.
Load Resistance	200 lbs (Concentrated)	Must resist load applied in any direction at the top of the rail.
Post Spacing	4 to 6 Feet (Recommended)	Spans over 6 feet require intermediate "stabilizer" posts to limit cable spread.
Sphere Rule	4-Inch Diameter	No opening can allow a 4-inch sphere to pass through.

Material Science: Why T316 Stainless Steel is the Safety Standard

In the world of cable railing, material failure is a safety failure. While Type 304 stainless steel is common for indoor applications, outdoor and coastal environments demand Type 316 (T316) marine-grade stainless steel. The primary difference is the addition of molybdenum, which significantly increases resistance to chloride-induced pitting and crevice corrosion.

For projects within 10 miles of the ocean, using anything less than T316 can lead to "tea staining" or structural weakening of the wire rope over time. This is why we recommend marine-grade stainless steel standards for corrosion resistance, as it ensures the high-quality stainless steel aircraft wire rope maintains its rated breaking strength for decades.

Modern cable railing system showing professional engineering and safety compliance.

Complex Geometries: Stairs and Angled Transitions

Stairs represent the most complex engineering challenge in a railing project. Safety codes require a "graspable" handrail at a height of 34 to 38 inches, and the 4-inch sphere rule still applies to the triangular area formed by the stair tread, riser, and bottom cable.

The engineering challenges for cable railing on stairs often involve managing the transition of tension around corners and through angled posts. When cables transition from a level run to a stair run, they must be properly supported to prevent the cable from "sawing" into the post. Using specialized essential cable railing hardware components like beveled washers and protector sleeves is essential to maintain structural integrity at these transition points.

Logic Summary: Stair calculations assume a standard 7-11 rise/run. If your stairs have non-standard dimensions, the cable spacing may need to be adjusted to ensure the "triangle" at the bottom of the railing does not exceed the 6-inch sphere rule allowed for that specific area in some jurisdictions.

Long-Term Safety and Maintenance Protocols

A safe railing is a maintained railing. Over time, factors like thermal expansion, post-settling, and "cable stretch" (the settling of the wire strands) can lead to a loss of tension. If a cable becomes slack, it no longer meets the 4-inch sphere rule, effectively rendering the system out of code.

We recommend a bi-annual safety check. Use a tension gauge to ensure each run is still within the 200–300 lb range. Additionally, look for signs of "crevice corrosion" where the cable enters the fitting. Implementing preventive maintenance to avoid rust and tension loss is the only way to guarantee the system remains safe for its entire 25+ year lifespan.

Close-up of cable railing hardware showing tensioning turnbuckle and secure connection.

Cluster map

As a comprehensive resource, this pillar article connects to several specialized technical guides. Use the table below to navigate specific engineering and design challenges.

Topic	Focus Area	Resource Link
Code Compliance	DIY Safety & Legal Requirements	View Guide
Material Science	Marine-Grade Standards & Alloys	View Whitepaper
Stair Engineering	Angles, Tension & Transitions	View Guide
Maintenance	Preventing Rust & Tension Loss	View Guide
Cost Estimation	Budgeting for Engineering Quality	View Guide
Design Ideas	Modern Aesthetics & Safety	View Guide

FAQ

Is cable railing safe for homes with small children? Yes, when engineered correctly, cable railing is exceptionally safe. The key is maintaining a 3-inch spacing and high tension to prevent the "ladder effect" and ensure that cables cannot be spread apart by a child's head or limbs. Modern codes have largely addressed the "climbability" concern by focusing on the 4-inch sphere rule, but parents should still supervise children as they would with any railing system.

How much tension should be on each cable? For most residential systems using 1/8-inch cable, a tension of 200 to 300 pounds per run is the industry standard. This provides enough rigidity to pass the 4-inch sphere test without putting excessive stress on the end posts. Over-tensioning (exceeding 400 lbs) can lead to structural failure of wood posts or the stripping of threaded hardware.

Does cable railing meet IBC/IRC code in all states? While the IRC and IBC allow cable railing, local jurisdictions may have specific interpretations or additional requirements. Some cities have historically restricted horizontal railings due to "climbability" concerns, though these restrictions are becoming rare in 2026. Always verify with your local building department before starting an installation.

How often do I need to tighten my cable railing? Most high-quality systems only require a minor adjustment once or twice in their lifetime. You should check the tension one month after installation (to account for initial "seating" of the hardware) and then once every year or two as part of your regular deck maintenance. If you notice visible sagging, the cables should be tensioned immediately to maintain safety compliance.

Can I use 304 stainless steel for an outdoor deck? It is generally not recommended for outdoor use, especially in humid or coastal environments. Type 304 lacks the molybdenum found in T316, making it susceptible to surface rust and structural pitting. For long-term safety and aesthetics, T316 is the industry-standard minimum for outdoor cable railing systems.

What is the maximum distance between posts for a safe system? To maintain proper cable tension and limit deflection, structural posts should be spaced no more than 6 to 8 feet apart. If you have a longer span, you must use "intermediate" or "stabilizer" posts every 3 to 4 feet. These thinner posts do not support the load of the railing but serve to keep the cables from spreading apart.
