Transitioning cable railing from a level deck onto stairs requires precise angle calculations, stair-specific hardware such as angled washers, and careful tensioning to avoid sagging, misalignment, or code issues. Getting the stair pitch right first, selecting the appropriate beveled washers, and following a repeatable layout sequence helps DIYers and contractors achieve a safe, compliant, and visually clean result that performs reliably over time.
Why Stair Cable Railing Differs from Level Deck Installations
Cable railing on stairs presents unique challenges compared to flat deck sections. On level runs, posts are typically plumb and cables run horizontally, making spacing and tension relatively straightforward. Stairs introduce a continuous slope that changes both the cable path and the geometry at each end fitting. This slope demands hardware that compensates for the angle so cables exit cleanly without binding or rubbing against posts.
As official guidance on barrier systems notes, cable systems generally perform better on flatter slopes, and steeper pitches make geometry and retention more demanding (FHWA Barrier Guide). Stair runs must therefore be laid out from the actual rise-and-run of the staircase rather than assuming deck-level geometry. Treating stairs as an extension of a deck run often leads to cumulative misalignment, excessive deflection, or the need for rework.
Stair cable railing also requires its own planning for handrail continuity and guard requirements. Stair handrails must meet continuity and extension rules, reinforcing that the stair section should be designed as its own run rather than a simple continuation of level railing (ADAAG 1991-2002). Always verify the adopted residential code in your jurisdiction, as requirements vary and local amendments may apply.
For a deeper look at overall system safety and engineering, review our Cable Railing Engineering & Safety: The Complete Resource.
Calculating the Stair Angle and Cable Run Geometry

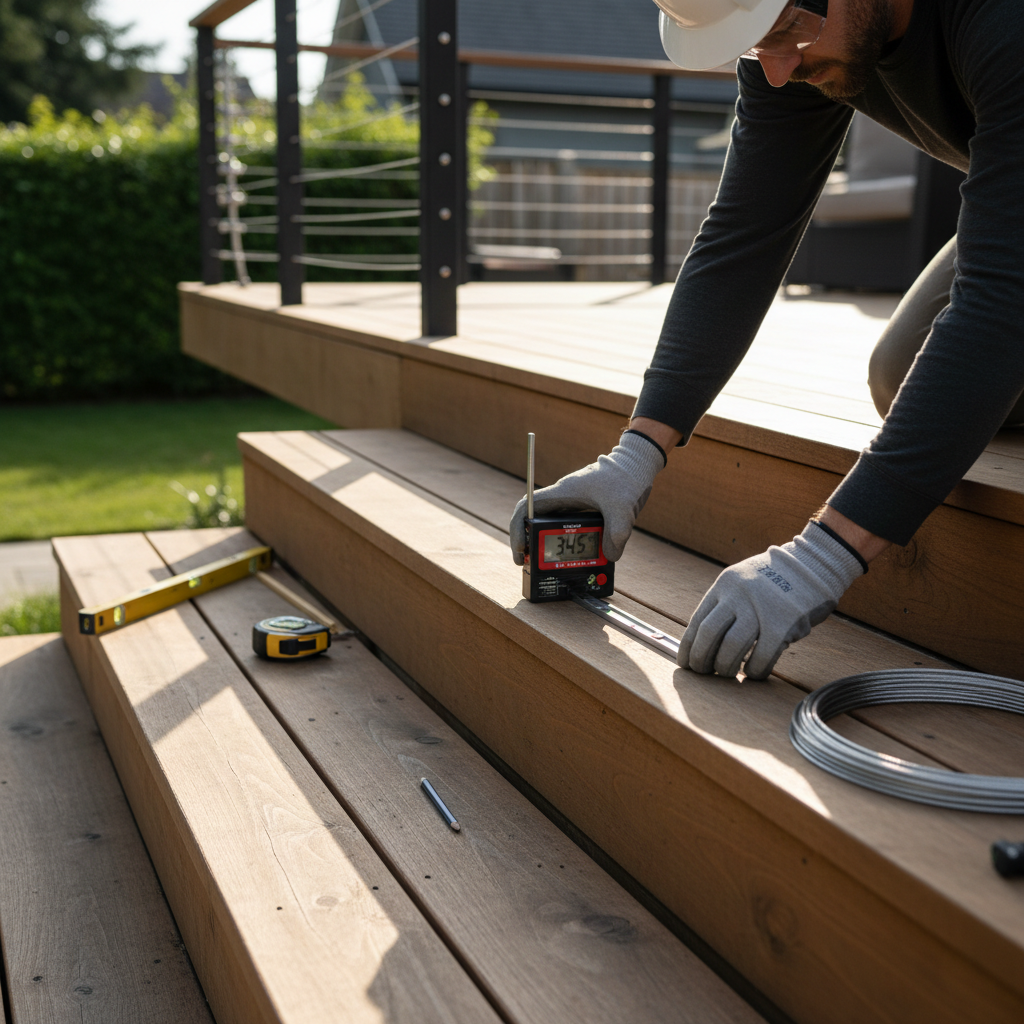

Begin every stair cable railing project by measuring the actual stair pitch on site. Use a digital angle finder or calculate the angle from rise and run: angle = arctan(rise/run). Common residential stairs fall between 30° and 45°, though exact values depend on your stringer design.
Once you have the pitch, determine the cable run geometry. Cables should maintain roughly consistent spacing—many systems target about 3 inches or less between runs to limit deflection. On a slope this spacing is measured along the incline, not horizontally. Mark post locations first, then project the cable paths at the measured stair angle. This prevents the top and bottom cables from ending up with noticeably different effective slopes.
Drilling must follow the stair angle precisely. Drill holes perpendicular to the post face only if using straight fittings; otherwise, angled hardware compensates. Misaligned holes cause cables to rub, create uneven tension, or produce visible sagging. A practical checklist before drilling includes:
- Confirm post plumb and stringer angle accurate to within 1°.
- Mock up the first and last cable paths with string or a laser.
- Verify that intermediate post holes will align when drilled at the stair pitch.
Our 2026 Guide to Cable Railing Code Compliance and Inspection Success provides additional details on layout and inspection checkpoints.
Choosing the Right Angled Washer Hardware
Angled or beveled washers are the key hardware component that allows cable fittings to seat correctly on sloped posts. A 30° beveled washer is a common choice for many residential stairs because it matches the midpoint of typical pitches. Using the wrong degree creates point loading, cable bending, or gaps that compromise appearance and long-term tension.
The 30 Degree Angle Beveled Washer for 1/8" Deck Cable Railing offers marine-grade T316 stainless steel construction suitable for both deck and stair transitions. These washers help maintain clean cable alignment across the pitch range where most stairs fall.
For protection where cables pass through wood or metal posts on stairs, consider Senmit Cable Railing Sleeves for Stair Posts. These sleeves reduce wear and prevent chafing that can occur with repeated tension adjustments on angled runs.
Here is a heuristic model illustrating how washer angle selection relates to stair pitch and installation demands:
Stair Pitch vs Washer Angle Band for Cable Railing
Usable washer angle band vs stair pitch, with a separate tension/spacing demand guide
View chart data
| Category | Usable washer angle band (min) | Usable washer angle band (max) | 30° washer target | Tension/spacing demand index |
|---|---|---|---|---|
| 0° deck | 0.0 | 0.0 | 30.0 | 1.0 |
| 30° stair | 22.0 | 38.0 | 30.0 | 2.0 |
| 35° stair | 27.0 | 43.0 | 30.0 | 3.0 |
| 40° stair | 32.0 | 48.0 | 30.0 | 4.0 |
| 45° stair | 37.0 | 53.0 | 30.0 | 5.0 |
Heuristic model based on common residential stair geometry 30-45°, manufacturer heuristics for ~30° beveled washers, ~3in spacing guideline; not lab-measured data. The band approximates a practical washer-angle envelope for stair pitches, while the demand index rises with steeper slope to reflect tighter tension and spacing control needs.
The chart shows that a 30° washer sits comfortably inside the usable band for moderate stair pitches. As pitch increases, the tension and spacing demand index rises, signaling the need for more careful layout and possibly additional intermediate supports or tighter spacing.
Maintaining Proper Cable Tension Across Sloped Runs
Tensioning stairs differs from level decks because the slope increases the effective length and changes load distribution. Begin by installing all cables loosely, then progressively tighten from the bottom up or in the sequence recommended by your hardware kit. This prevents binding at one end while the opposite end remains slack.
Use a calibrated tensioning tool or follow manufacturer torque guidance rather than tightening “until it feels right.” Over-tensioning can stress posts or fittings, while under-tensioning allows excessive deflection that may violate the 4-inch sphere rule. Many systems recommend tension that limits deflection to roughly 1–2 inches under moderate hand pressure.
For reliable tensioning on both stairs and decks, the Senmit Lag Screw Swage Turnbuckle and Lag Screws Cable Railing Tensioner Kit provides T316 components that resist corrosion and maintain adjustment. Pair it with the Senmit Hydraulic Cable Crimper for clean, high-pressure crimps that hold under repeated loading.
After initial tensioning, wait 24–48 hours and re-check. Temperature changes and cable settling can loosen the system, especially on longer stair runs. If cables still appear loose or rub on sleeves, the angle calculation or washer selection may need revisiting.
Common Code Requirements and Compliance Checklist
Residential stair cable railing must satisfy the International Residential Code (IRC) or local equivalent. Key points usually include a maximum 4-inch sphere that cannot pass between cables, continuous graspable handrails, and guard heights measured on the slope. Tension must be sufficient to prevent excessive deflection under load.
Because requirements vary by jurisdiction, always check with your local building department before purchasing materials. The evidence base for a single universal stair-cable rule remains limited; verification with the Authority Having Jurisdiction (AHJ) is required.
A quick pre-install audit includes:
- Measure stair pitch and confirm it falls within hardware specifications.
- Verify post spacing does not exceed code maximums (often 4–5 ft depending on system).
- Confirm all cables will maintain ≤4 in. spacing when tensioned.
- Plan for handrail continuity and extensions at top and bottom of stairs.
- Select T316 marine-grade stainless steel for coastal or high-moisture areas, as detailed in our Marine-Grade Stainless Steel Standards for Residential Cable Railing.
Myth vs Reality: Avoiding Costly Stair Railing Mistakes
Several misconceptions can derail stair cable projects:
Myth: Deck hardware works fine on stairs. Reality: The change in cable angle and fitting alignment usually requires stair-specific or manufacturer-approved angled hardware to prevent binding or odd loading.
Myth: Any angle is acceptable if the cable is tight. Reality: The angle affects how the cable seats and transfers force; mismatched washers or fittings can create stress points even if the assembly looks tight.
Myth: Tighten until it feels right. Reality: Manufacturer-specified methods and staged tensioning provide more consistent results. Over-tightening risks damaging posts or fittings.
Myth: One code rule fits every stair. Reality: Compliance depends on local adoption of the IRC, stair geometry, and the complete assembly. Always verify locally.
These myths highlight why stair runs deserve separate planning rather than being treated as angled deck extensions. For related guidance on achieving clean aesthetics without visible fasteners, see Achieving Seamless Aesthetics: Hidden Fasteners in Cable Railing.
Recommended Complete Systems and Tools for Stair Projects
Ready-to-install solutions simplify the process. The Senmit 36" Black Surface Mount 5ft-25ft All-in-One Complete Stair Cable Railing System DIY Kit and the Senmit 36" Black Fascia Mount Stair Cable Railing System DIY Kit include posts, cables, and hardware pre-sized for typical stair runs. These kits reduce measurement errors and speed installation.
Browse the full Complete Cable Railing Kit Stair Section or 1/8 Cable Railing Hardware collections to match components to your project. For wood post installations, the Wood Post Tension Kit supplies compatible lag screws and turnbuckles.
Additional practical tips appear in Cable Railing for Stairs: Solving Angle & Tension Challenges and our tool comparison guide Essential Cable Railing Tools: Hydraulic Crimper vs Hand Swaging.
Final Checklist Before You Start Drilling
- Measure and record the exact stair pitch on site.
- Select angled washers that bracket your measured angle (30° is a frequent starting point).
- Mock up the first run with temporary line to confirm alignment and spacing.
- Drill test holes in scrap material at the calculated angle.
- Install cables loosely, tension in stages, and re-check after 24 hours.
- Verify the finished assembly meets the 4-inch sphere rule and local handrail requirements.
- If the stair pitch exceeds 45°, post spacing is unusually wide, or you lack experience with tensioning sloped runs, consult a professional installer to avoid safety or compliance problems.
This approach minimizes the risk of sagging, cable rubbing, uneven appearance, or failed inspections. With accurate angle calculation, the right beveled washers, and methodical tensioning, stair cable railing can deliver a modern, low-maintenance look that meets code and performs for years.
