Powering Your Deck: Transformers & Wiring for LED Rails
Disclaimer: This guide is provided for informational purposes only. Electrical installations involve risks of fire and electric shock. While low-voltage systems (under 30V) are often DIY-friendly, all high-voltage connections (120V) should be performed by a licensed electrician. Always verify local building codes and NEC requirements before beginning your project.
Summary
Powering integrated LED deck lighting requires a precise combination of low-voltage transformers, calculated wire gauging, and robust weatherproofing to ensure long-term reliability. For modern installations, the industry is increasingly shifting toward 24V DC systems to minimize voltage drop over long runs, often paired with smart transformers compatible with Matter and Thread protocols. Selecting a transformer with a minimum NEMA 3R rating—or a NEMA 4X enclosure for corrosive coastal environments—and utilizing 12AWG or 10AWG copper wiring ensures that your illuminated railing remains vibrant and safe from common pitfalls like flickering or thermal degradation.
Key Takeaways
- Voltage Selection: Consider 24V systems over 12V for runs exceeding 50 feet to significantly reduce voltage drop and heat buildup in enclosed handrail profiles.
- Transformer Durability: Magnetic transformers offer superior surge protection in harsh climates, while high-efficiency electronic transformers allow for advanced dimming and smart home integration.
- Wiring Standards: 12AWG is the baseline for most residential decks, but 10AWG is recommended for runs over 100 feet to maintain consistent luminosity.
- Thermal Management: Ensure aluminum handrail profiles utilize thermal interface materials (TIM) to dissipate heat, preventing LED color shifting.
- Safety Compliance: All components should meet UL 1838 standards for low-voltage landscape lighting, with power units housed in appropriate NEMA-rated enclosures.

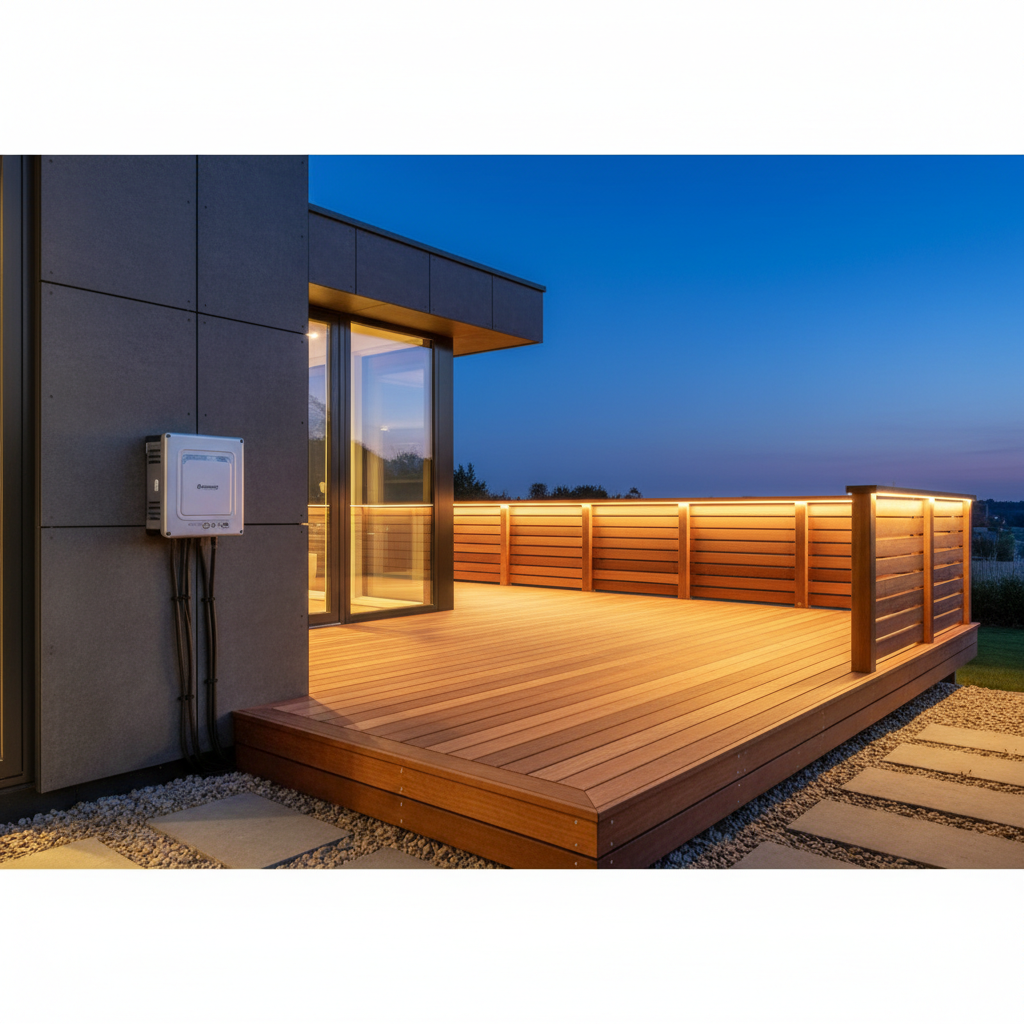

The Technical Foundation of Illuminated Railing Systems
Modern deck design has evolved to incorporate sophisticated technology that enhances both safety and ambiance. The transition to illuminated railing systems represents a significant leap in "Smart Deck" ecosystems, but it introduces technical challenges that many homeowners and contractors overlook. The most common point of failure in these systems isn't the LED strip itself, but the underlying power infrastructure.
When you invest in high-quality components like T316 marine grade wire rope, you are building for longevity. The same logic must apply to your electrical setup. A poorly sized transformer or an undersized wire gauge can lead to "Technical Friction"—the frustration of flickering lights or uneven brightness. This guide provides a technical roadmap grounded in current electrical standards and field-tested engineering principles.
Selecting the Right Low-Voltage Transformer
The transformer is the heart of your deck lighting system, stepping down 120V house current to a safe 12V or 24V. The choice between magnetic and electronic transformers depends on your specific environment and control needs.
Magnetic vs. Electronic Transformers
Magnetic transformers are the traditional workhorses. They use a copper coil to step down voltage, making them incredibly durable and resistant to power surges. For large-scale projects where reliability is paramount, magnetic units are often the preferred choice. However, they are heavier and can produce a slight "hum" if not mounted correctly.
Electronic transformers are smaller, lighter, and more efficient. They are the go-to for modern smart home integrations because they offer superior dimming capabilities and can be easily paired with Matter or Thread-enabled controllers. The trade-off is their sensitivity to heat. If you are installing your power supply in a tight, unventilated space, an electronic transformer may require more careful thermal management.
Pro Tip: We recommend sizing your transformer at 120% of your total wattage. For example, if your LED strips total 80W, use at least a 100W transformer to account for system overhead and future expansion.
NEMA Ratings and Environmental Protection
The National Electrical Manufacturers Association (NEMA) defines standards for electrical enclosures. For a standard backyard deck, a NEMA 3R enclosure is sufficient to protect against rain and ice.
However, for decks located in coastal environments (typically within 5 miles of salt water), standard enclosures often succumb to rapid oxidation. Based on ISO 9223 corrosivity categories, upgrading to a NEMA 4X enclosure—which is specifically tested for corrosion resistance—is a strategic investment. As discussed in our guide on marine-grade stainless steel standards, salt spray can penetrate standard seals, leading to internal short circuits.
Wire Gauge and the Science of Voltage Drop
Voltage drop is the gradual loss of electrical pressure as current travels through a wire. In low-voltage systems, even a small drop can result in noticeably dimmer lights at the end of the run.
Calculating Voltage Drop: A Practical Example
To ensure your lights remain bright, the voltage drop should ideally not exceed 5% (0.6V for a 12V system; 1.2V for a 24V system). You can estimate voltage drop using this formula:
$V_{drop} = \frac{2 \times L \times I \times R}{1000}$
- L: One-way length of the wire (feet)
- I: Current in Amps (Total Watts / Voltage)
- R: Resistance of the wire (approx. 1.6 for 12AWG, 2.5 for 14AWG)
Example Calculation: Imagine a 12V system with a 60W load located 50 feet from the transformer using 14AWG wire.
- Current (I): $60W / 12V = 5A$
- Resistance (R): $2.5 \Omega$ (for 14AWG)
- Calculation: $(2 \times 50 \times 5 \times 2.5) / 1000 = 1.25V$
- Verdict: The drop is 1.25V, which is over the 0.6V limit for a 12V system. This setup would likely result in dimming. To fix this, you would either upgrade to 10AWG wire or switch to a 24V system.
Wire Selection Reference Table
| Run Length (Feet) | 12V System Gauge | 24V System Gauge | Recommended Load (Watts) |
|---|---|---|---|
| 0 - 30 | 14 AWG | 16 AWG | Up to 60W |
| 31 - 60 | 12 AWG | 14 AWG | Up to 100W |
| 61 - 100 | 10 AWG | 12 AWG | Up to 150W |
| 100+ | 8 AWG (Home Run) | 10 AWG | Up to 200W |
Why 24V is Becoming the Modern Standard
While 12V was the industry standard for decades, 24V systems are now the preferred choice for integrated handrail lighting. A 24V system carries half the current (amperage) of a 12V system for the same wattage. Lower amperage means less heat and significantly less voltage drop, allowing for longer continuous runs of LED strips without the need for multiple "power injection" points.
Wiring Architecture for Integrated Handrails
Integrating LEDs into a handrail is more complex than hanging string lights. The wiring must be concealed within the rail profile, which presents unique challenges for heat and connectivity.
Thermal Management in Enclosed Profiles
Aluminum is an excellent heat sink, but when an LED strip is fully enclosed, heat can still build up. Overheating leads to "lumen depreciation"—permanent dimming—and can shift the color temperature.
To mitigate this, ensure your LED integrated handrail installation includes a thermal interface material (TIM) or high-quality adhesive backing between the LED strip and the aluminum rail. This helps pull heat away from the diodes and spreads it across the railing surface.
Connection Methods and Junction Boxes
The most frequent failure point is the connection between the main feed wire and individual LED segments. For a professional finish, use small, IP68-rated junction boxes hidden within the railing posts.
When running wires through posts, use essential cable railing tools like a hydraulic cable crimper to ensure structural cables are perfectly tensioned, leaving clear paths for electrical wiring. Avoid "daisy-chaining" more than three 10-foot sections of LED tape to prevent overloading the thin copper traces on the strip.
Smart Integration: Matter, Thread, and Zoning
Modern "Smart Decks" integrate seamlessly with home automation via the Matter protocol, which allows devices from different manufacturers to work together over a Thread mesh network.
Zoning Strategies
For large decks, divide your lighting into zones for better control:
- Safety Zone: Stair treads and perimeter rails (always on at dusk).
- Ambiance Zone: Post-cap lights and under-rail accents (dimmable).
- Task Zone: Cooking or dining areas (high-intensity).
Using a smart transformer with multi-tap outputs or separate Thread-enabled controllers for each zone allows you to create custom "scenes" via your smartphone.
Safety Standards and Weatherproofing
All outdoor low-voltage lighting should comply with the National Electrical Code (NEC) Article 411, which requires the use of UL 1838 listed power units. These units are designed to isolate the low-voltage side from the high-voltage side, minimizing risk in wet conditions.
Coastal Considerations: The "Black Wire" Problem
If you are following our ultimate DIY cable railing guide, you already know the importance of T316 stainless steel. For the electrical system, this means using tinned copper wire. Standard copper wire can "wick" salt air through its insulation, leading to internal corrosion (often called "black wire disease") that increases resistance. Tinned copper wire is significantly more resistant to this process and is a recommended upgrade for any deck within sight of the ocean.
FAQ
What is the difference between a 12V and 24V deck lighting system? A 12V system is traditional and suitable for smaller decks. A 24V system is more efficient for larger projects because it experiences less voltage drop and allows for longer continuous LED runs with less heat buildup.
Can I bury my low-voltage deck lighting wire? Yes, but the NEC generally requires that low-voltage landscape wire be buried at least 6 inches deep. If the wire is under a permanent structure like a concrete patio, it should be in a conduit.
How do I know what size transformer I need? Add up the total wattage of all LED fixtures and multiply by 1.2. For example, 10 lights at 5 watts each equals 50 watts; a 60-watt transformer is the recommended minimum.
Why are my deck lights flickering at the end of the railing? This is typically caused by voltage drop from using a wire gauge that is too thin for the length of the run. Upgrading to a thicker wire (12AWG or 10AWG) or switching to a 24V power supply usually resolves this.
Do I need a licensed electrician to install low-voltage deck lighting? While the low-voltage wiring is generally safe for DIY, the 120V outlet for the transformer usually requires a licensed professional to ensure compliance with local codes.
References
Government / Standards / Regulators
- UL 1838: Standard for Low Voltage Landscape Lighting Systems
- National Electrical Code (NEC) Article 411: Lighting Systems Operating at 30 Volts or Less
